G-59CS - 1.38" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

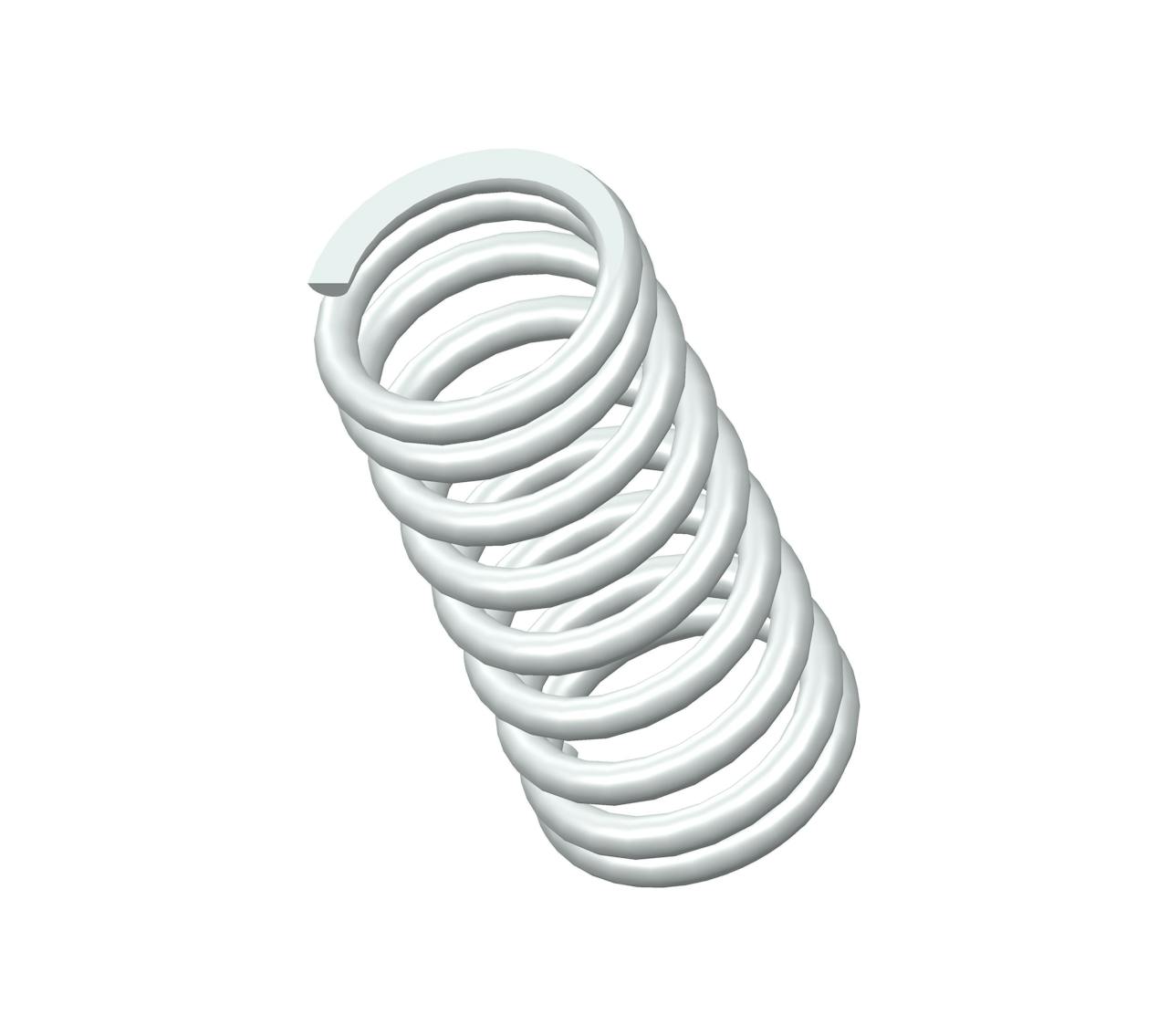

Compression spring manufactured from 302/304 stainless steel with 9 coils and closed & ground ends. This spring features an O.D. of 0.64", and an I.D. of 0.48".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | G-59 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.38 in |
| Inside Diameter | 0.48 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.64 in |
| Part Type | Standard |
| Rate | 42 lbs/in |
| SKU | G-59CS |
| Solid Length | 0.72 in |
| Suggested Max Deflection | 0.6 in |
| Suggested Max Load | 25 lbf |
| Total Coils | 9 |
| Wire Diameter | 0.08 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | G-59 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 35.05 mm |
| Inside Diameter | 12.19 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 16.26 mm |
| Part Type | Standard |
| Rate | 7.35 N/mm |
| SKU | G-59CS |
| Solid Length | 18.29 mm |
| Suggested Max Deflection | 15.24 mm |
| Suggested Max Load | 111.2 N |
| Total Coils | 9 |
| Wire Diameter | 2.03 mm |
The compression spring G-59CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the G-59 compression spring design exhibits exceptional tensile strength and resilience.
The G-59 design is manufactured with a free length of 1.38", with an outer diameter of 0.64", an inner diameter of 0.48", and a total of 9 coils, expertly designed to deliver consistent compression characteristics including a rate of 42 lbs/in.
The G-59CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring G-59 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The G-59 design is manufactured with a free length of 1.38", with an outer diameter of 0.64", an inner diameter of 0.48", and a total of 9 coils, expertly designed to deliver consistent compression characteristics including a rate of 42 lbs/in.
The G-59CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring G-59 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
