G-54CS - 0.38" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

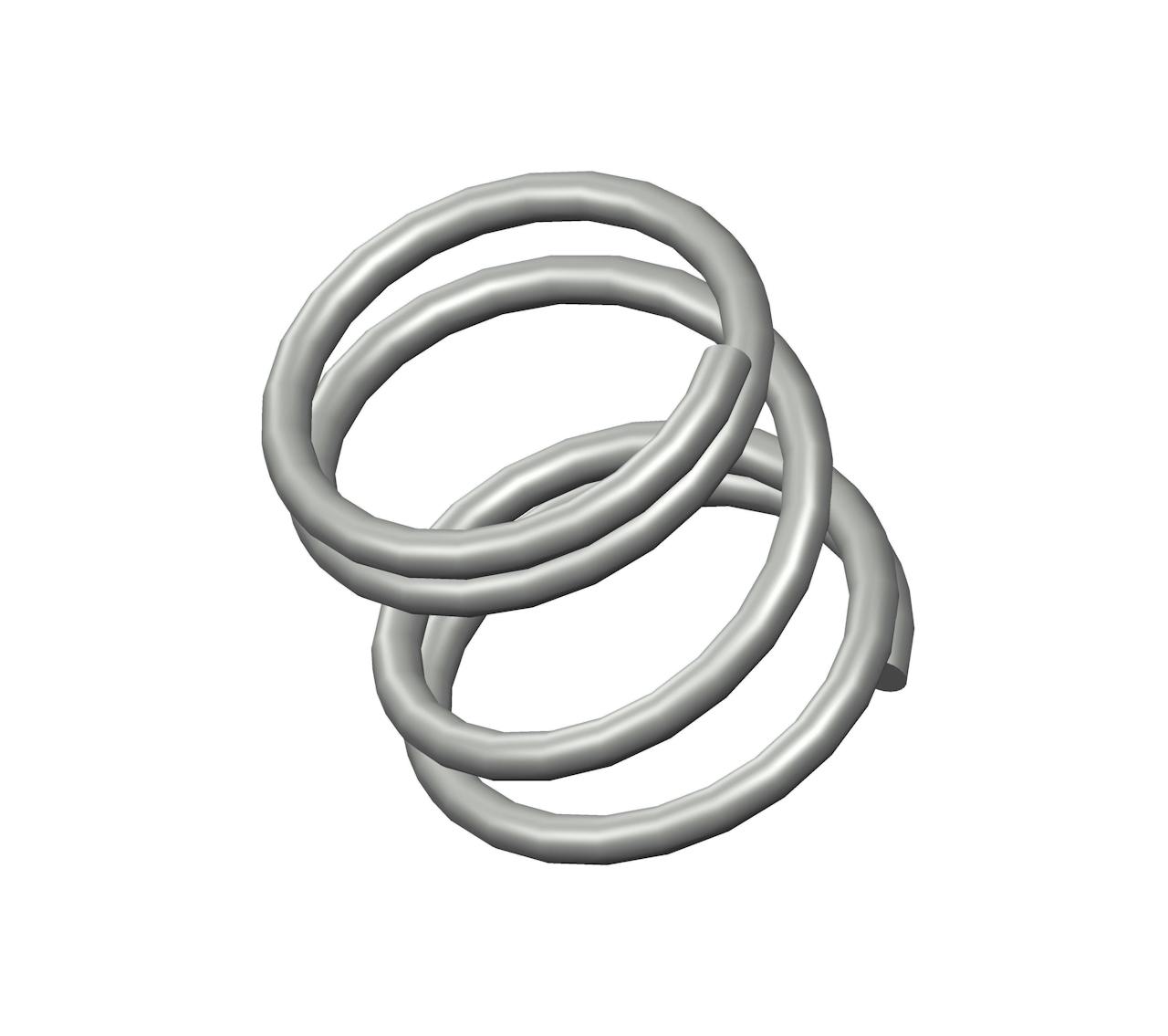

Compression spring manufactured from spring steel with 4 coils and closed ends. This spring features an O.D. of 0.36", and an I.D. of 0.292".
NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | G-54 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.38 in |
| Inside Diameter | 0.292 in |
| Material | Spring Steel |
| Outside Diameter | 0.36 in |
| Part Type | Standard |
| Rate | 28 lbs/in |
| SKU | G-54CS |
| Solid Length | 0.17 in |
| Suggested Max Deflection | 0.16 in |
| Suggested Max Load | 4.4 lbf |
| Total Coils | 4 |
| Wire Diameter | 0.034 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | G-54 |
| Ends | Closed |
| Finish | None |
| Free Length | 9.65 mm |
| Inside Diameter | 7.42 mm |
| Material | Spring Steel |
| Outside Diameter | 9.14 mm |
| Part Type | Standard |
| Rate | 4.9 N/mm |
| SKU | G-54CS |
| Solid Length | 4.32 mm |
| Suggested Max Deflection | 4.06 mm |
| Suggested Max Load | 19.57 N |
| Total Coils | 4 |
| Wire Diameter | 0.86 mm |
The G-54 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality spring steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The G-54CS compression spring is designed with a free length of 0.94" total of 8.5 coils, and a rate of 1.3 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The G-54 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The G-54CS compression spring is designed with a free length of 0.94" total of 8.5 coils, and a rate of 1.3 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The G-54 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
