G-27CS - 0.59" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

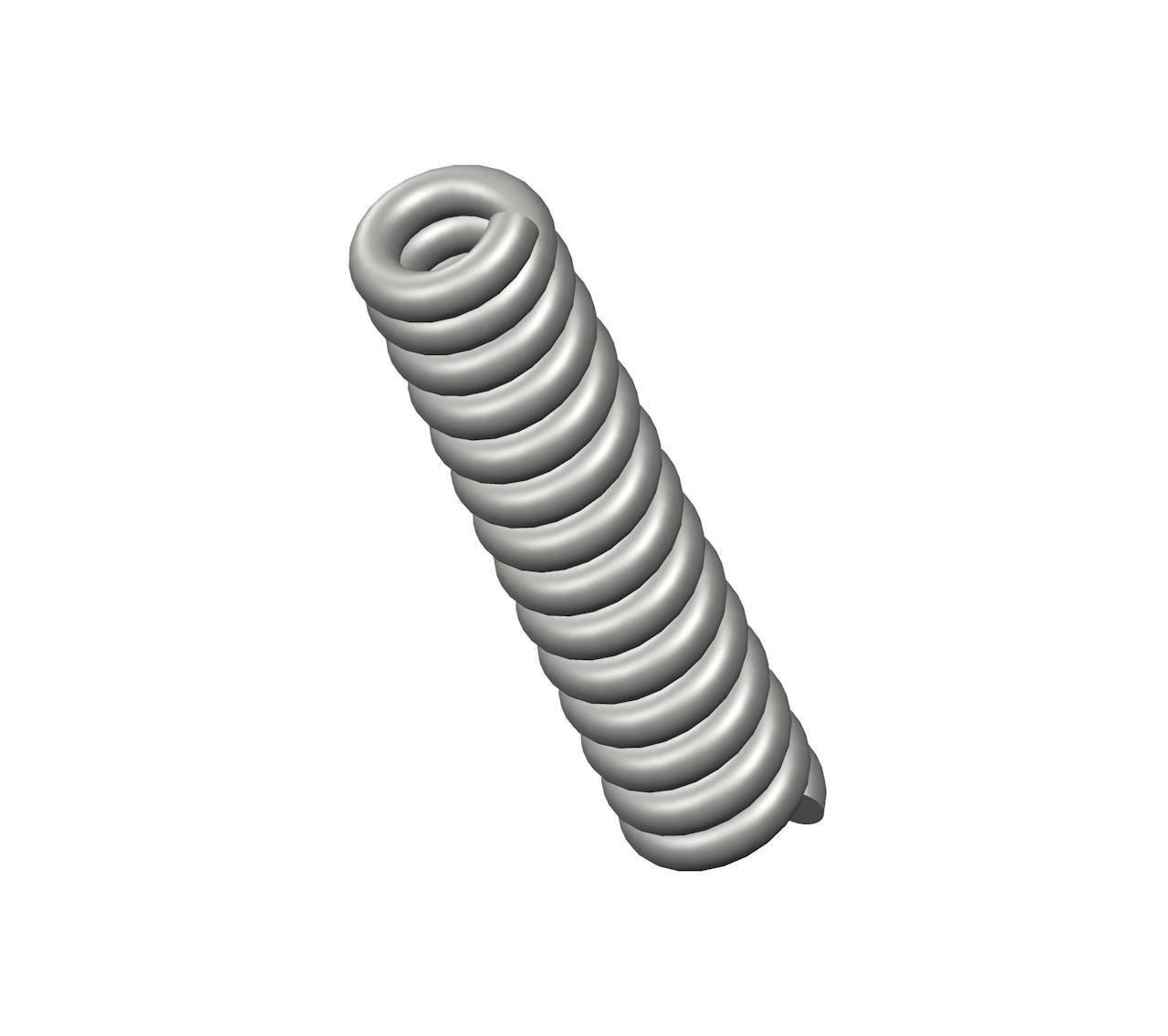

Compression spring manufactured from music wire with 14 coils and closed ends. This spring features an O.D. of 0.125", and an I.D. of 0.063".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | G-27 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.59 in |
| Inside Diameter | 0.063 in |
| Material | Music Wire |
| Outside Diameter | 0.125 in |
| Part Type | Standard |
| Rate | 133 lbs/in |
| SKU | G-27CS |
| Solid Length | 0.47 in |
| Suggested Max Deflection | 0.09 in |
| Suggested Max Load | 12 lbf |
| Total Coils | 14 |
| Wire Diameter | 0.031 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | G-27 |
| Ends | Closed |
| Finish | None |
| Free Length | 14.99 mm |
| Inside Diameter | 1.6 mm |
| Material | Music Wire |
| Outside Diameter | 3.18 mm |
| Part Type | Standard |
| Rate | 23.29 N/mm |
| SKU | G-27CS |
| Solid Length | 11.94 mm |
| Suggested Max Deflection | 2.29 mm |
| Suggested Max Load | 53.38 N |
| Total Coils | 14 |
| Wire Diameter | 0.79 mm |
The compression spring G-27CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the G-27 compression spring design exhibits exceptional tensile strength and resilience.
The G-27 design is manufactured with a free length of 0.59", with an outer diameter of 0.125", an inner diameter of 0.063", and a total of 14 coils, expertly designed to deliver consistent compression characteristics including a rate of 133 lbs/in.
The G-27CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring G-27 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The G-27 design is manufactured with a free length of 0.59", with an outer diameter of 0.125", an inner diameter of 0.063", and a total of 14 coils, expertly designed to deliver consistent compression characteristics including a rate of 133 lbs/in.
The G-27CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring G-27 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
