G-24CS - 0.81" Spring Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|

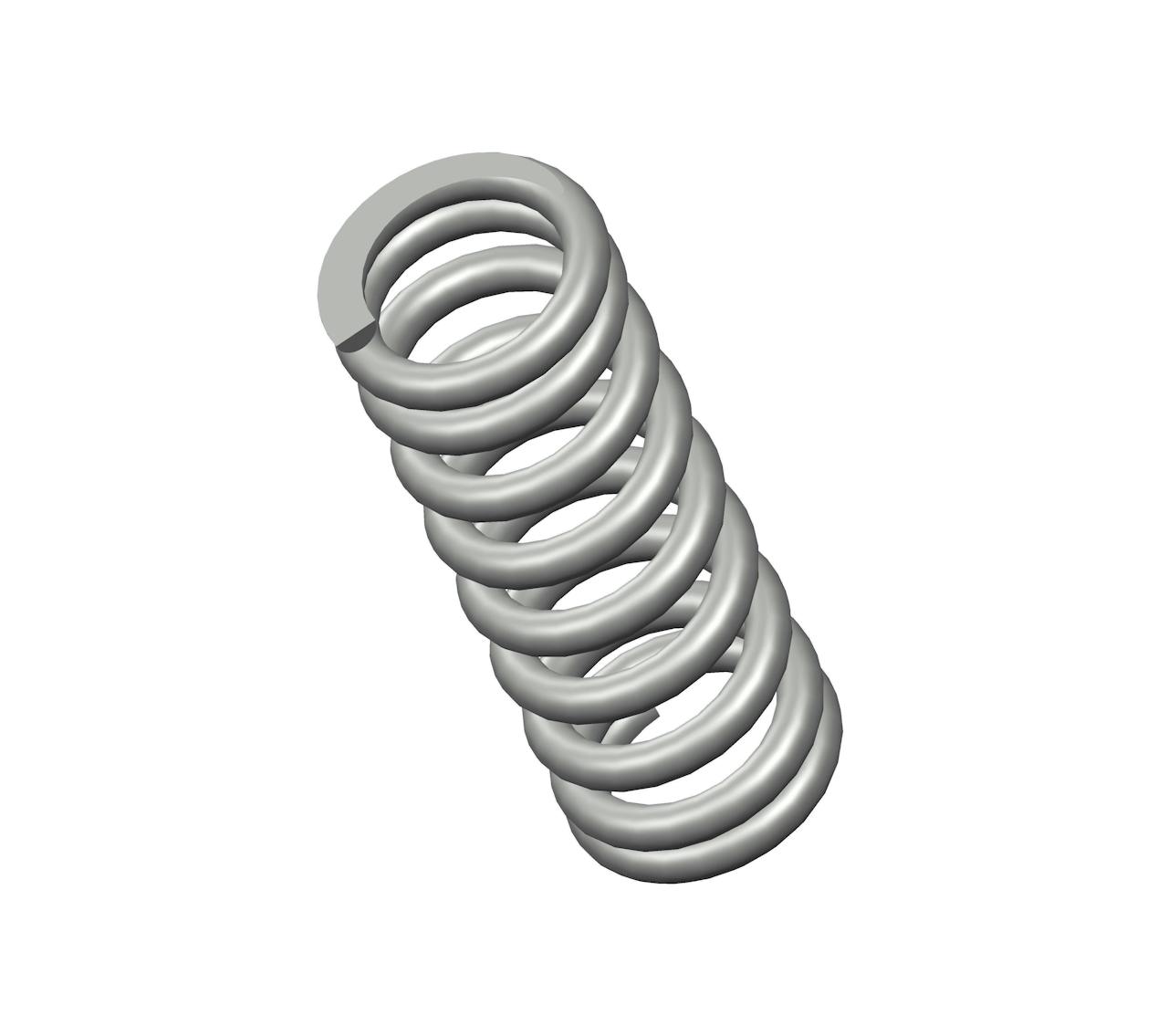

Compression spring manufactured from spring steel with 9.25 coils and closed & ground ends. This spring features an O.D. of 0.296", and an I.D. of 0.202".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | G-24 |
| Ends | Closed & Ground |
| Finish | Gold Iridite |
| Free Length | 0.81 in |
| Inside Diameter | 0.202 in |
| Material | Spring Steel |
| Outside Diameter | 0.296 in |
| Part Type | Standard |
| Rate | 63 lbs/in |
| SKU | G-24CS |
| Solid Length | 0.43 in |
| Suggested Max Deflection | 0.21 in |
| Suggested Max Load | 13 lbf |
| Total Coils | 9.25 |
| Wire Diameter | 0.047 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | G-24 |
| Ends | Closed & Ground |
| Finish | Gold Iridite |
| Free Length | 20.57 mm |
| Inside Diameter | 5.13 mm |
| Material | Spring Steel |
| Outside Diameter | 7.52 mm |
| Part Type | Standard |
| Rate | 11.03 N/mm |
| SKU | G-24CS |
| Solid Length | 10.92 mm |
| Suggested Max Deflection | 5.33 mm |
| Suggested Max Load | 57.82 N |
| Total Coils | 9.25 |
| Wire Diameter | 1.19 mm |
The compression spring G-24CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the G-24 compression spring design exhibits exceptional tensile strength and resilience.
The G-24 design is manufactured with a free length of 0.81", with an outer diameter of 0.296", an inner diameter of 0.202", and a total of 9.25 coils, expertly designed to deliver consistent compression characteristics including a rate of 63 lbs/in.
The G-24CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring G-24 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The G-24 design is manufactured with a free length of 0.81", with an outer diameter of 0.296", an inner diameter of 0.202", and a total of 9.25 coils, expertly designed to deliver consistent compression characteristics including a rate of 63 lbs/in.
The G-24CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring G-24 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
