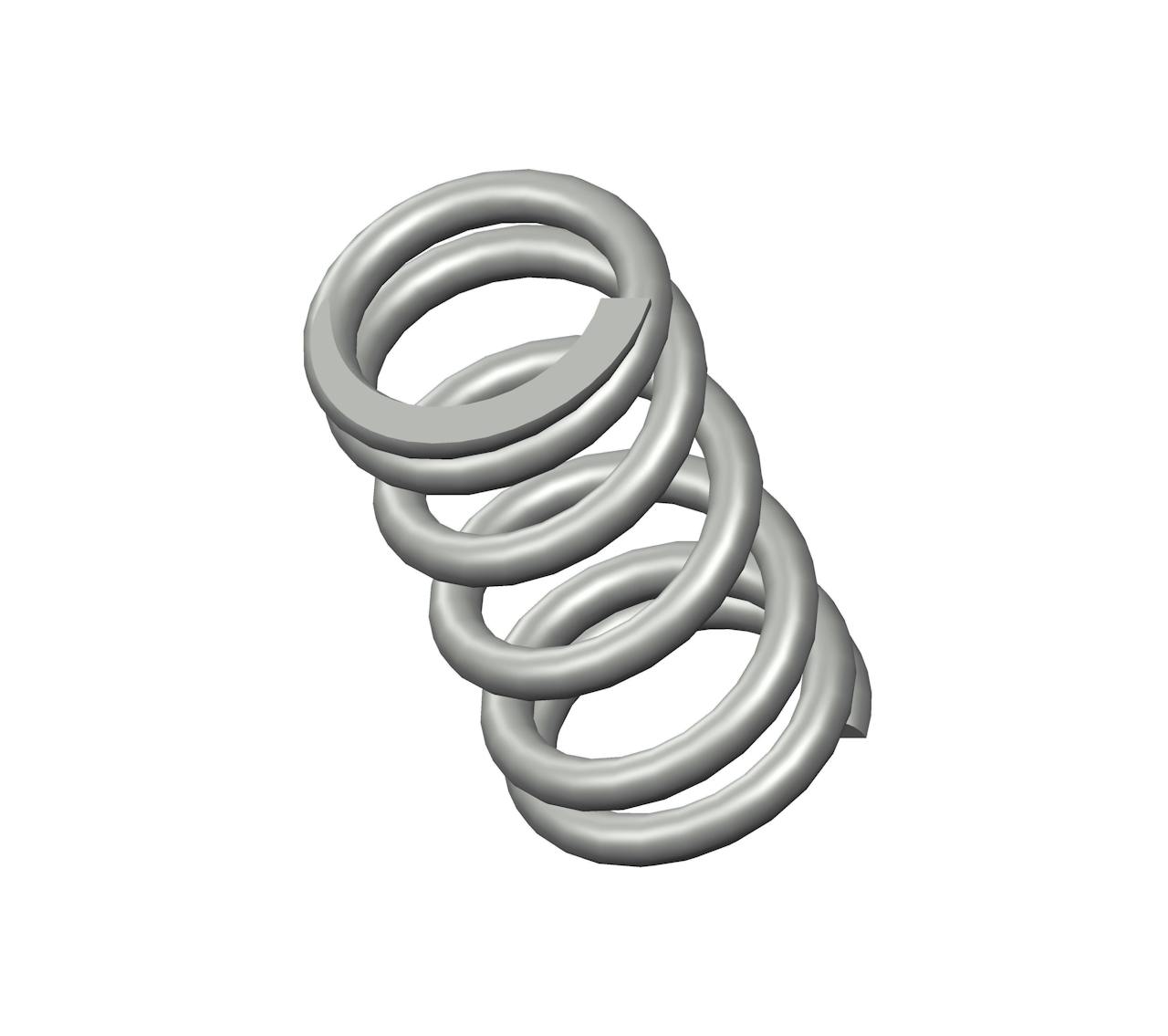

G-12CS - 0.41" Music Wire Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Compression spring manufactured from music wire with 6 coils and closed & ground ends. This spring features an O.D. of 0.219", and an I.D. of 0.157".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | G-12 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 0.41 in |
| Inside Diameter | 0.157 in |
| Material | Music Wire |
| Outside Diameter | 0.219 in |
| Part Type | Standard |
| Rate | 50 lbs/in |
| SKU | G-12CS |
| Solid Length | 0.19 in |
| Suggested Max Deflection | 0.15 in |
| Suggested Max Load | 7.4 lbf |
| Total Coils | 6 |
| Wire Diameter | 0.031 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | G-12 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 10.41 mm |
| Inside Diameter | 3.99 mm |
| Material | Music Wire |
| Outside Diameter | 5.56 mm |
| Part Type | Standard |
| Rate | 8.76 N/mm |
| SKU | G-12CS |
| Solid Length | 4.83 mm |
| Suggested Max Deflection | 3.81 mm |
| Suggested Max Load | 32.92 N |
| Total Coils | 6 |
| Wire Diameter | 0.79 mm |
The G-12 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality music wire and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The G-12CS compression spring is designed with a free length of 0.53" total of 5 coils, and a rate of 36 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The G-12 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The G-12CS compression spring is designed with a free length of 0.53" total of 5 coils, and a rate of 36 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The G-12 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
