Century Spring

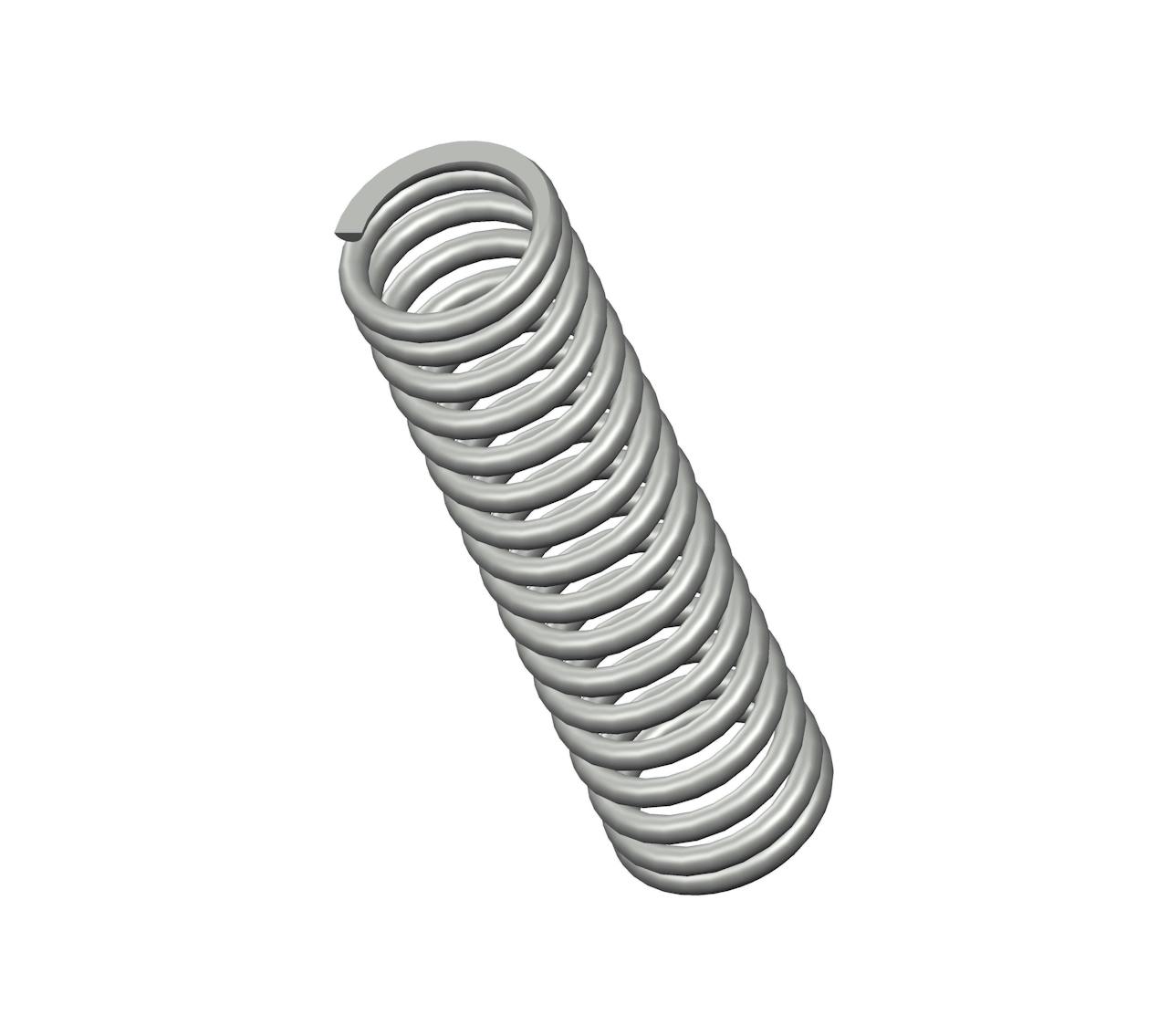

FF-94CS - 1.44" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 17 coils and closed & ground ends. This spring features an O.D. of 0.375", and an I.D. of 0.281".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name FF-94
Ends Closed & Ground
Finish Gold Iridite
Free Length 1.44 in
Inside Diameter 0.281 in
Material Spring Steel
Outside Diameter 0.375 in
Part Type Standard
Rate 13 lbs/in
SKU FF-94CS
Solid Length 0.8 in
Suggested Max Deflection 0.64 in
Suggested Max Load 8.5 lbf
Total Coils 17
Wire Diameter 0.047 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name FF-94
Ends Closed & Ground
Finish Gold Iridite
Free Length 36.58 mm
Inside Diameter 7.14 mm
Material Spring Steel
Outside Diameter 9.53 mm
Part Type Standard
Rate 2.28 N/mm
SKU FF-94CS
Solid Length 20.32 mm
Suggested Max Deflection 16.26 mm
Suggested Max Load 37.81 N
Total Coils 17
Wire Diameter 1.19 mm
The FF-94 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality spring steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The FF-94CS compression spring is designed with a free length of 0.75" total of 11 coils, and a rate of 1.9 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The FF-94 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
