FF-82CS - 1.31" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

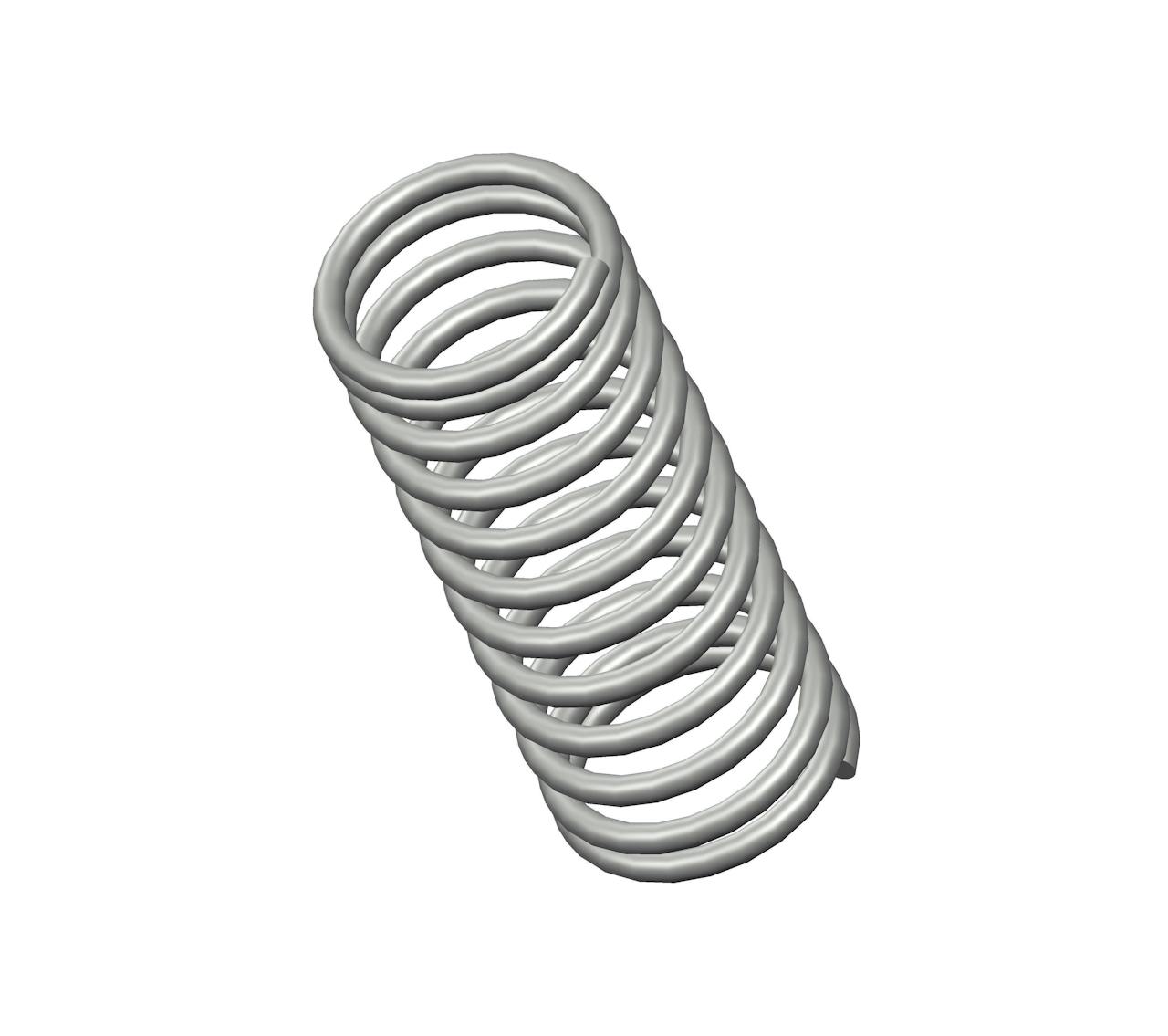

Compression spring manufactured from spring steel with 12 coils and closed ends. This spring features an O.D. of 0.5", and an I.D. of 0.4".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | FF-82 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 1.31 in |
| Inside Diameter | 0.4 in |
| Material | Spring Steel |
| Outside Diameter | 0.5 in |
| Part Type | Standard |
| Rate | 9.9 lbs/in |
| SKU | FF-82CS |
| Solid Length | 0.65 in |
| Suggested Max Deflection | 0.66 in |
| Suggested Max Load | 6.5 lbf |
| Total Coils | 12 |
| Wire Diameter | 0.05 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | FF-82 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 33.27 mm |
| Inside Diameter | 10.16 mm |
| Material | Spring Steel |
| Outside Diameter | 12.7 mm |
| Part Type | Standard |
| Rate | 1.73 N/mm |
| SKU | FF-82CS |
| Solid Length | 16.51 mm |
| Suggested Max Deflection | 16.76 mm |
| Suggested Max Load | 28.91 N |
| Total Coils | 12 |
| Wire Diameter | 1.27 mm |
The compression spring FF-82CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the FF-82 compression spring design exhibits exceptional tensile strength and resilience.
The FF-82 design is manufactured with a free length of 1.31", with an outer diameter of 0.5", an inner diameter of 0.4", and a total of 12 coils, expertly designed to deliver consistent compression characteristics including a rate of 9.9 lbs/in.
The FF-82CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring FF-82 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The FF-82 design is manufactured with a free length of 1.31", with an outer diameter of 0.5", an inner diameter of 0.4", and a total of 12 coils, expertly designed to deliver consistent compression characteristics including a rate of 9.9 lbs/in.
The FF-82CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring FF-82 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
