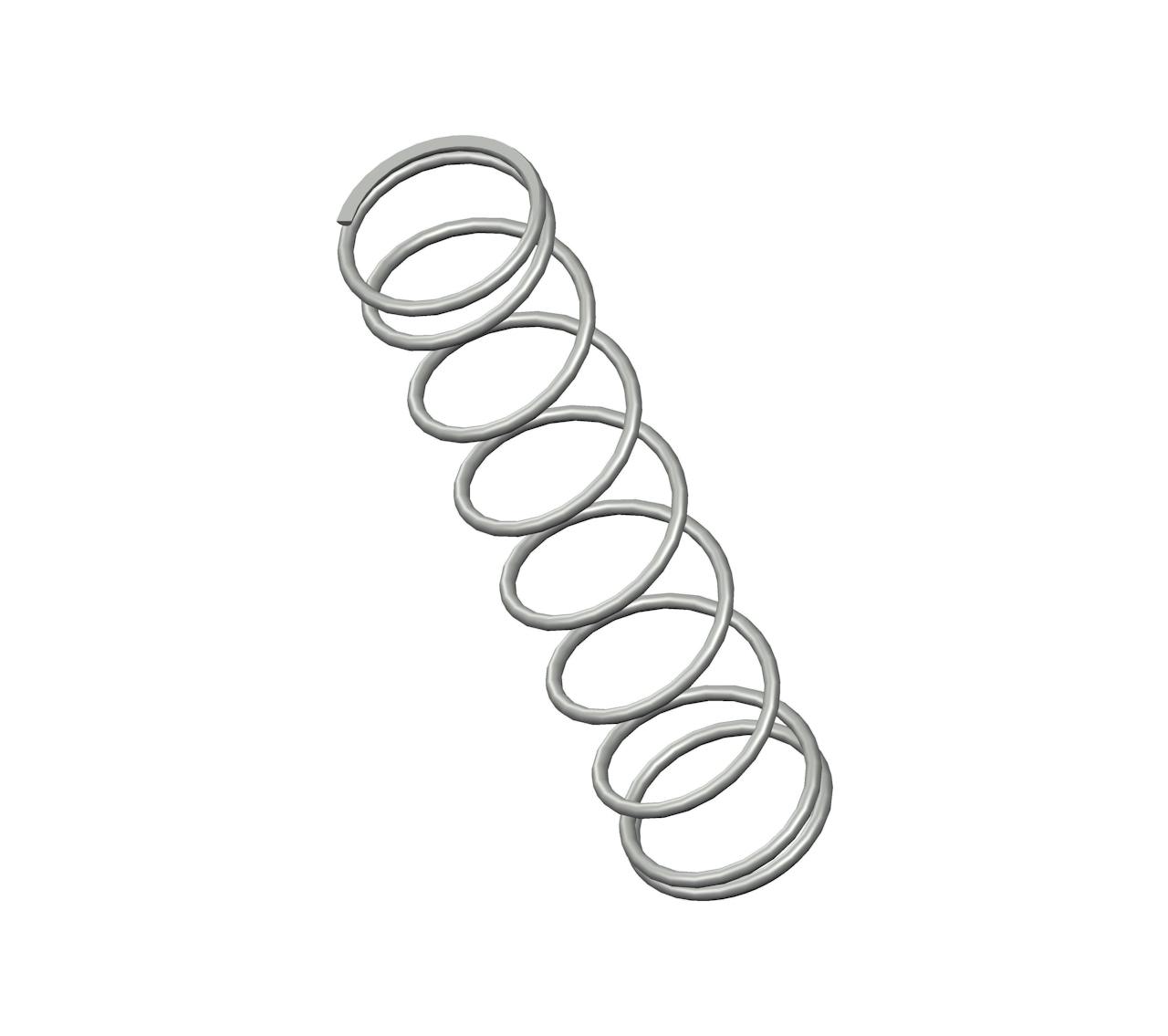

FF-76CS - 1.75" Music Wire Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Compression spring manufactured from music wire with 9 coils and closed & ground ends. This spring features an O.D. of 0.406", and an I.D. of 0.346".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | FF-76 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.75 in |
| Inside Diameter | 0.346 in |
| Material | Music Wire |
| Outside Diameter | 0.406 in |
| Part Type | Standard |
| Rate | 3.1 lbs/in |
| SKU | FF-76CS |
| Solid Length | 0.27 in |
| Suggested Max Deflection | 1.2 in |
| Suggested Max Load | 3.8 lbf |
| Total Coils | 9 |
| Wire Diameter | 0.03 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | FF-76 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 44.45 mm |
| Inside Diameter | 8.79 mm |
| Material | Music Wire |
| Outside Diameter | 10.31 mm |
| Part Type | Standard |
| Rate | 0.54 N/mm |
| SKU | FF-76CS |
| Solid Length | 6.86 mm |
| Suggested Max Deflection | 30.48 mm |
| Suggested Max Load | 16.9 N |
| Total Coils | 9 |
| Wire Diameter | 0.76 mm |
The compression spring FF-76CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the FF-76 compression spring design exhibits exceptional tensile strength and resilience.
The FF-76 design is manufactured with a free length of 1.75", with an outer diameter of 0.406", an inner diameter of 0.346", and a total of 9 coils, expertly designed to deliver consistent compression characteristics including a rate of 3.1 lbs/in.
The FF-76CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring FF-76 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The FF-76 design is manufactured with a free length of 1.75", with an outer diameter of 0.406", an inner diameter of 0.346", and a total of 9 coils, expertly designed to deliver consistent compression characteristics including a rate of 3.1 lbs/in.
The FF-76CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring FF-76 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
