FF-43CS - 0.25" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

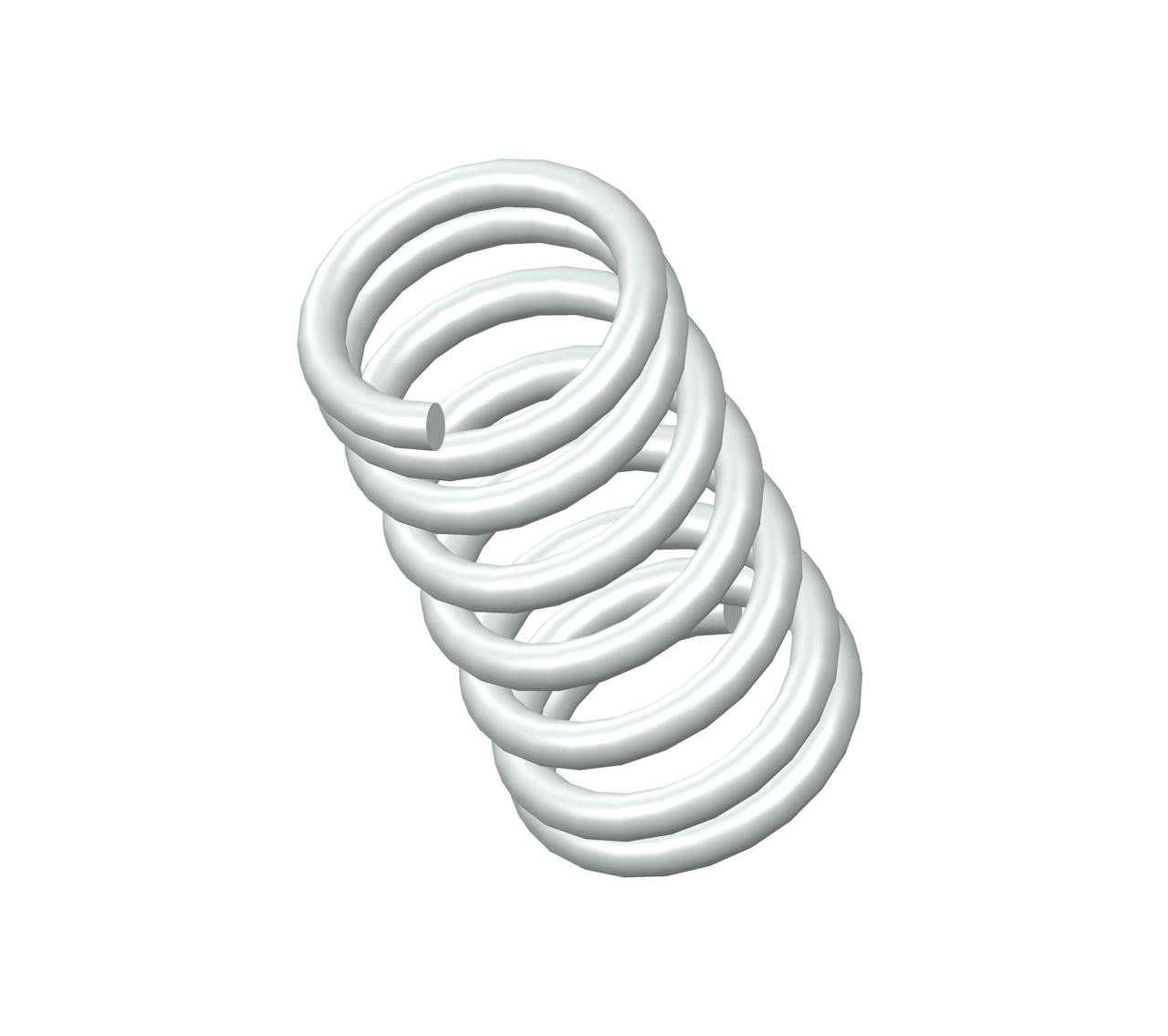

Compression spring manufactured from 302/304 stainless steel with 7.5 coils and closed ends. This spring features an O.D. of 0.125", and an I.D. of 0.093".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | FF-43 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.25 in |
| Inside Diameter | 0.093 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.125 in |
| Part Type | Standard |
| Rate | 12 lbs/in |
| SKU | FF-43CS |
| Solid Length | 0.14 in |
| Suggested Max Deflection | 0.11 in |
| Suggested Max Load | 1.3 lbf |
| Total Coils | 7.5 |
| Wire Diameter | 0.016 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | FF-43 |
| Ends | Closed |
| Finish | None |
| Free Length | 6.35 mm |
| Inside Diameter | 2.36 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 3.18 mm |
| Part Type | Standard |
| Rate | 2.1 N/mm |
| SKU | FF-43CS |
| Solid Length | 3.56 mm |
| Suggested Max Deflection | 2.79 mm |
| Suggested Max Load | 5.78 N |
| Total Coils | 7.5 |
| Wire Diameter | 0.41 mm |
The FF-43 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The FF-43CS compression spring is designed with a free length of 1.75" total of 11.5 coils, and a rate of 0.97 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The FF-43 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The FF-43CS compression spring is designed with a free length of 1.75" total of 11.5 coils, and a rate of 0.97 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The FF-43 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
