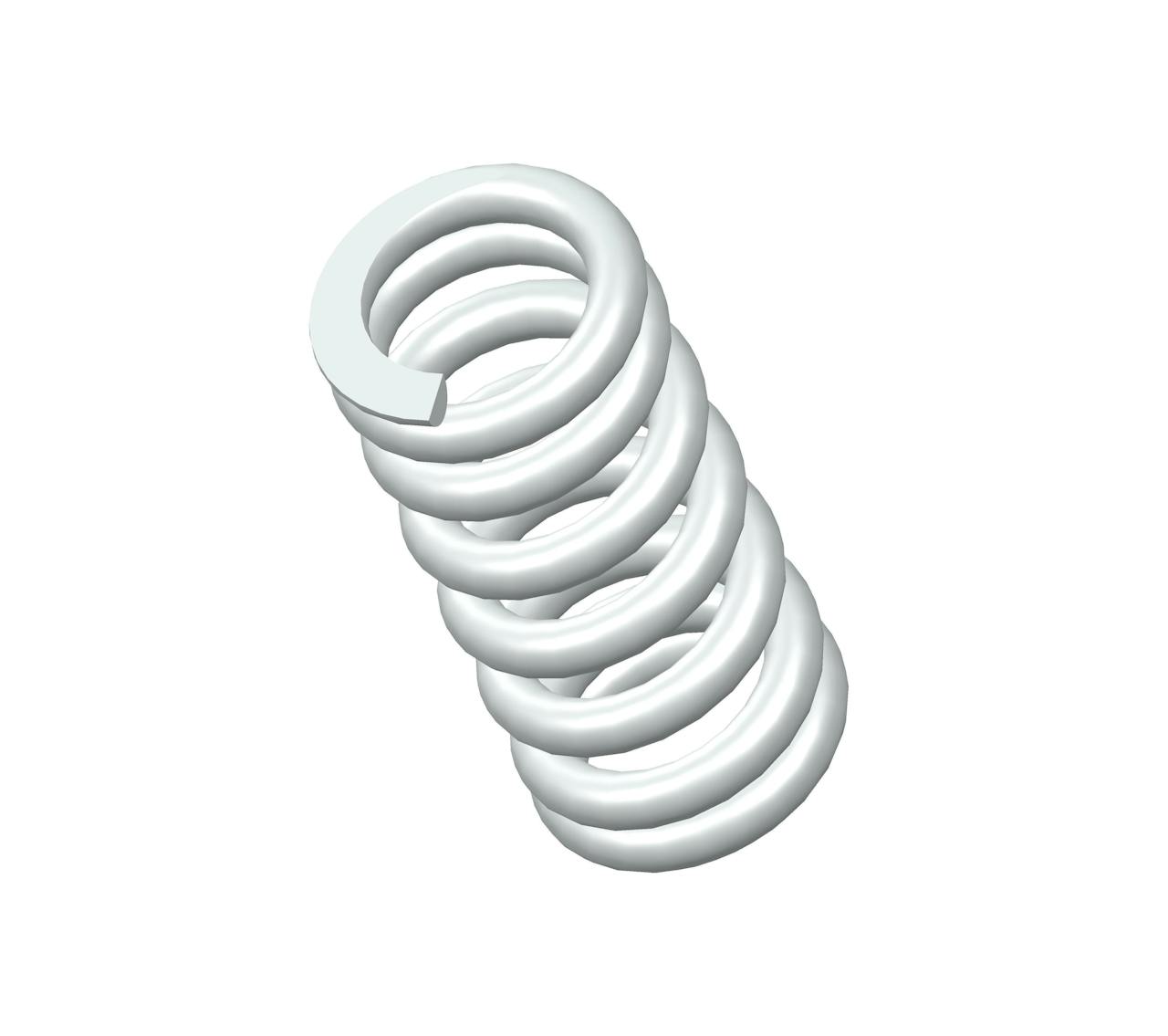

FF-30CS - 1.63" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 7.5 coils and closed & ground ends. This spring features an O.D. of 0.75", and an I.D. of 0.49".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | FF-30 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.63 in |
| Inside Diameter | 0.49 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.75 in |
| Part Type | Standard |
| Rate | 278 lbs/in |
| SKU | FF-30CS |
| Solid Length | 0.98 in |
| Suggested Max Deflection | 0.28 in |
| Suggested Max Load | 77 lbf |
| Total Coils | 7.5 |
| Wire Diameter | 0.13 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | FF-30 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 41.4 mm |
| Inside Diameter | 12.45 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 19.05 mm |
| Part Type | Standard |
| Rate | 48.68 N/mm |
| SKU | FF-30CS |
| Solid Length | 24.89 mm |
| Suggested Max Deflection | 7.11 mm |
| Suggested Max Load | 342.5 N |
| Total Coils | 7.5 |
| Wire Diameter | 3.3 mm |
The compression spring FF-30CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the FF-30 compression spring design exhibits exceptional tensile strength and resilience.
The FF-30 design is manufactured with a free length of 1.63", with an outer diameter of 0.75", an inner diameter of 0.49", and a total of 7.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 278 lbs/in.
The FF-30CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring FF-30 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
