Century Spring

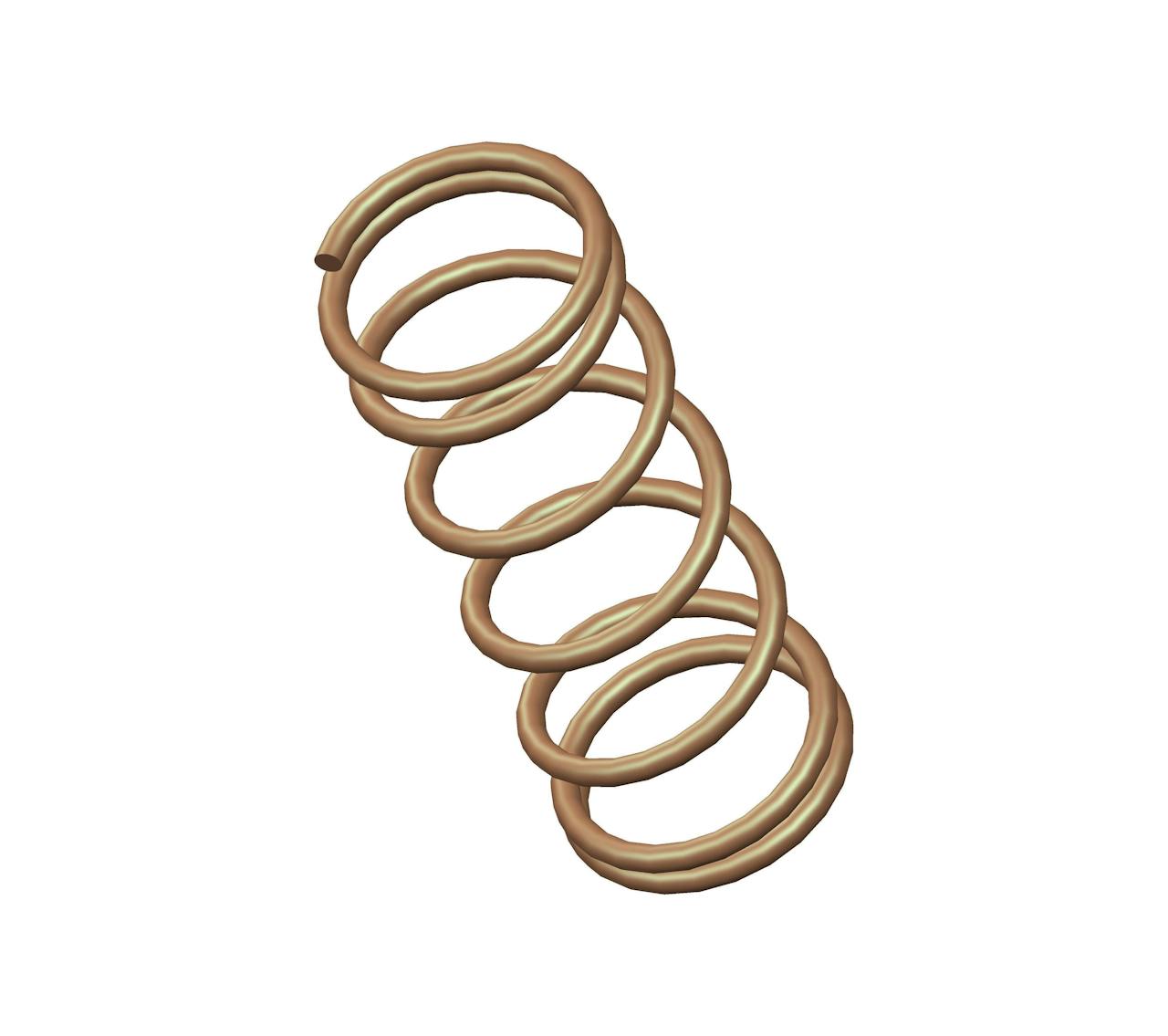

FF-22CS - 0.38" Beryllium Copper Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from beryllium copper with 7 coils and closed ends. This spring features an O.D. of 0.14", and an I.D. of 0.114".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name FF-22
Ends Closed
Finish None
Free Length 0.38 in
Inside Diameter 0.114 in
Material Beryllium Copper
Outside Diameter 0.14 in
Part Type Standard
Rate 3.4 lbs/in
SKU FF-22CS
Solid Length 0.1 in
Suggested Max Deflection 0.2 in
Suggested Max Load 0.8 lbf
Total Coils 7
Wire Diameter 0.013 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name FF-22
Ends Closed
Finish None
Free Length 9.65 mm
Inside Diameter 2.9 mm
Material Beryllium Copper
Outside Diameter 3.56 mm
Part Type Standard
Rate 0.6 N/mm
SKU FF-22CS
Solid Length 2.54 mm
Suggested Max Deflection 5.08 mm
Suggested Max Load 3.56 N
Total Coils 7
Wire Diameter 0.33 mm
The compression spring FF-22CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality beryllium copper, the FF-22 compression spring design exhibits exceptional tensile strength and resilience.

The FF-22 design is manufactured with a free length of 0.38", with an outer diameter of 0.14", an inner diameter of 0.114", and a total of 7 coils, expertly designed to deliver consistent compression characteristics including a rate of 3.4 lbs/in.

The FF-22CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring FF-22 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
