F-9CS - 0.75" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

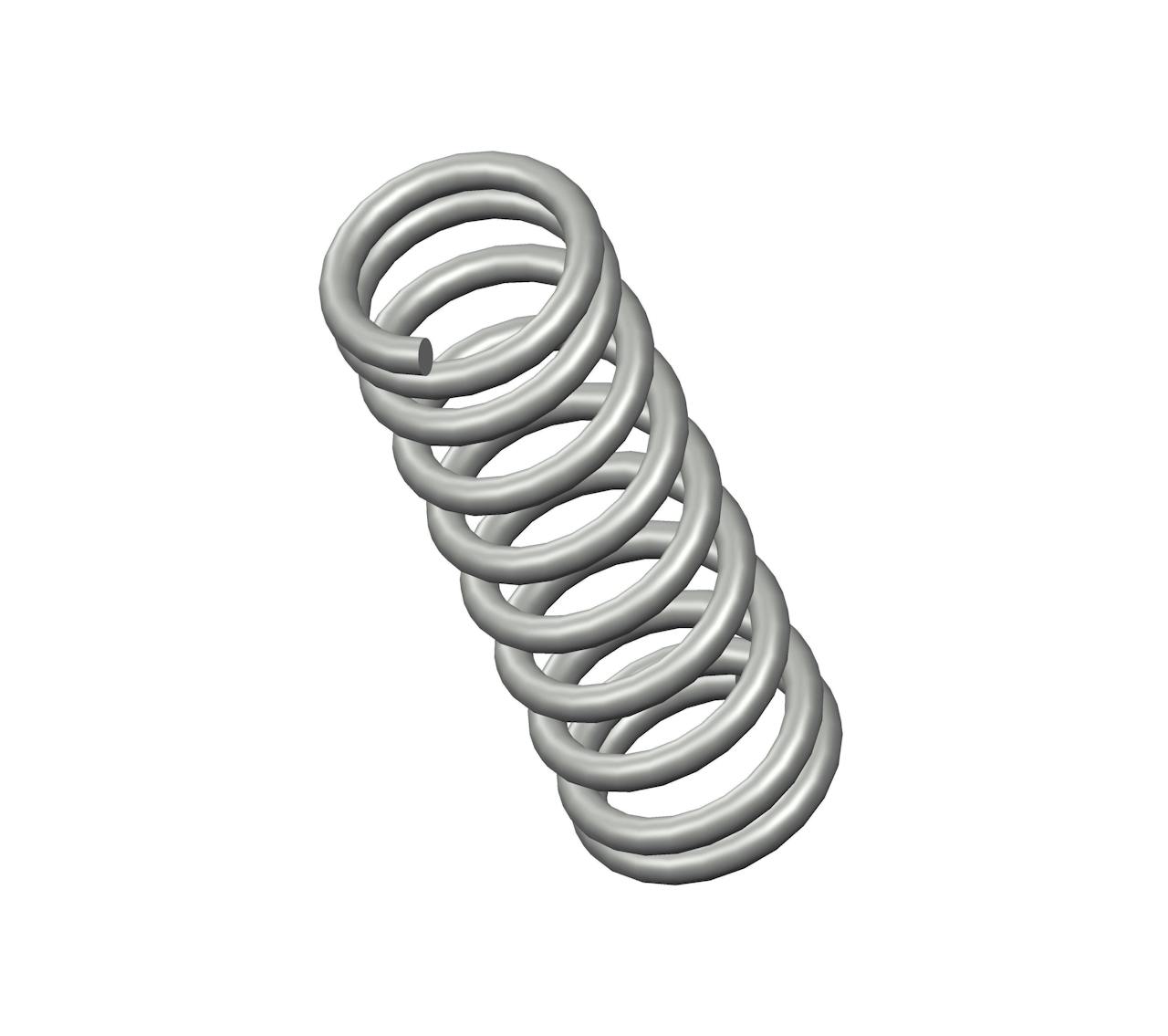

Compression spring manufactured from spring steel with 9.5 coils and closed ends. This spring features an O.D. of 0.25", and an I.D. of 0.184".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | F-9 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 0.75 in |
| Inside Diameter | 0.184 in |
| Material | Spring Steel |
| Outside Diameter | 0.25 in |
| Part Type | Standard |
| Rate | 22 lbs/in |
| SKU | F-9CS |
| Solid Length | 0.35 in |
| Suggested Max Deflection | 0.26 in |
| Suggested Max Load | 5.7 lbf |
| Total Coils | 9.5 |
| Wire Diameter | 0.033 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | F-9 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 19.05 mm |
| Inside Diameter | 4.67 mm |
| Material | Spring Steel |
| Outside Diameter | 6.35 mm |
| Part Type | Standard |
| Rate | 3.85 N/mm |
| SKU | F-9CS |
| Solid Length | 8.89 mm |
| Suggested Max Deflection | 6.6 mm |
| Suggested Max Load | 25.35 N |
| Total Coils | 9.5 |
| Wire Diameter | 0.84 mm |
The compression spring F-9CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the F-9 compression spring design exhibits exceptional tensile strength and resilience.
The F-9 design is manufactured with a free length of 0.75", with an outer diameter of 0.25", an inner diameter of 0.184", and a total of 9.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 22 lbs/in.
The F-9CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring F-9 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The F-9 design is manufactured with a free length of 0.75", with an outer diameter of 0.25", an inner diameter of 0.184", and a total of 9.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 22 lbs/in.
The F-9CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring F-9 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
