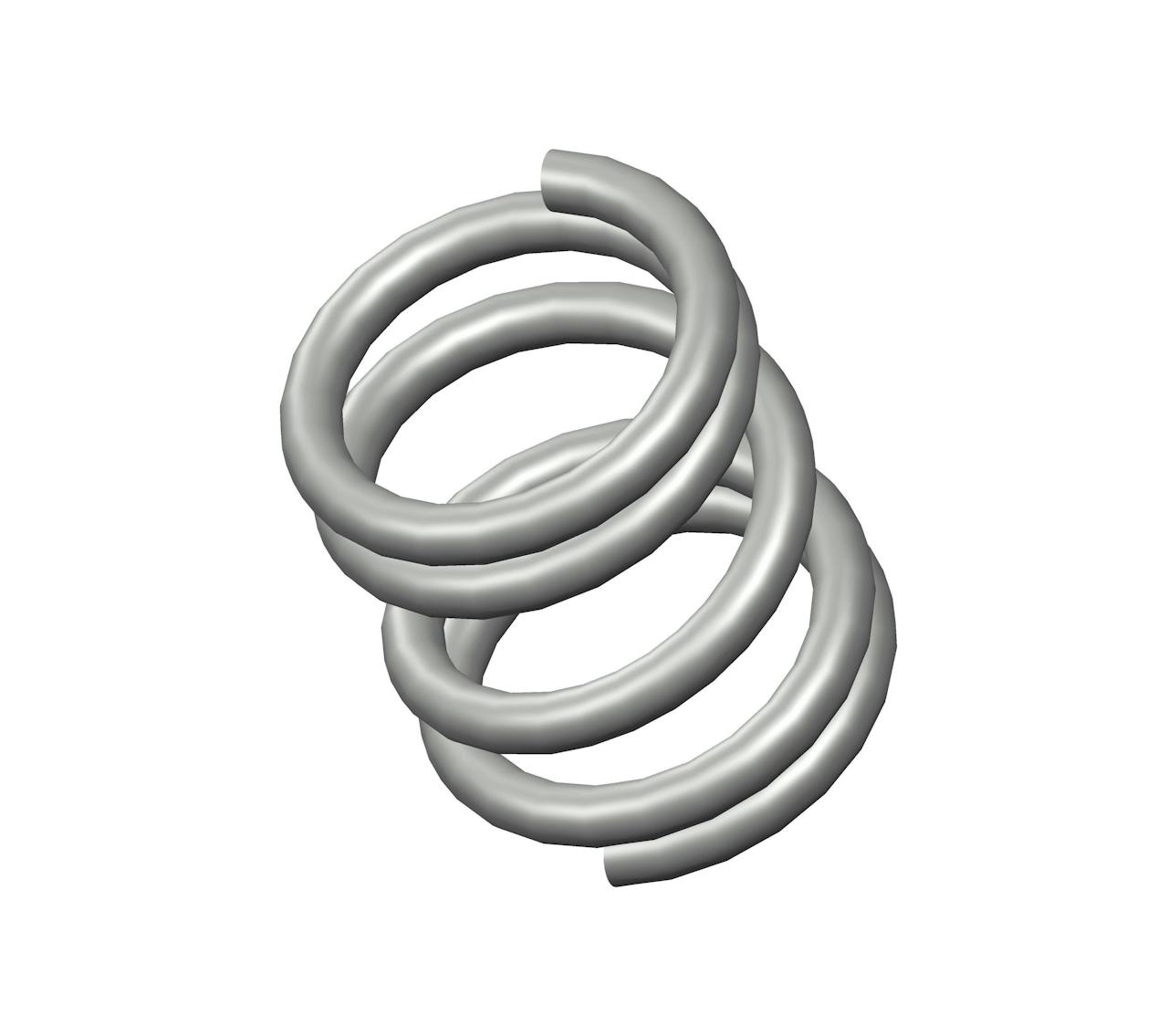

F-94CS - 0.31" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from spring steel with 4.5 coils and closed ends. This spring features an O.D. of 0.25", and an I.D. of 0.186".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | F-94 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 0.31 in |
| Inside Diameter | 0.186 in |
| Material | Spring Steel |
| Outside Diameter | 0.25 in |
| Part Type | Standard |
| Rate | 58 lbs/in |
| SKU | F-94CS |
| Solid Length | 0.18 in |
| Suggested Max Deflection | 0.09 in |
| Suggested Max Load | 5.2 lbf |
| Total Coils | 4.5 |
| Wire Diameter | 0.032 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | F-94 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 7.87 mm |
| Inside Diameter | 4.72 mm |
| Material | Spring Steel |
| Outside Diameter | 6.35 mm |
| Part Type | Standard |
| Rate | 10.16 N/mm |
| SKU | F-94CS |
| Solid Length | 4.57 mm |
| Suggested Max Deflection | 2.29 mm |
| Suggested Max Load | 23.13 N |
| Total Coils | 4.5 |
| Wire Diameter | 0.81 mm |
The compression spring F-94CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the F-94 compression spring design exhibits exceptional tensile strength and resilience.
The F-94 design is manufactured with a free length of 0.31", with an outer diameter of 0.25", an inner diameter of 0.186", and a total of 4.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 58 lbs/in.
The F-94CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring F-94 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The F-94 design is manufactured with a free length of 0.31", with an outer diameter of 0.25", an inner diameter of 0.186", and a total of 4.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 58 lbs/in.
The F-94CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring F-94 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
