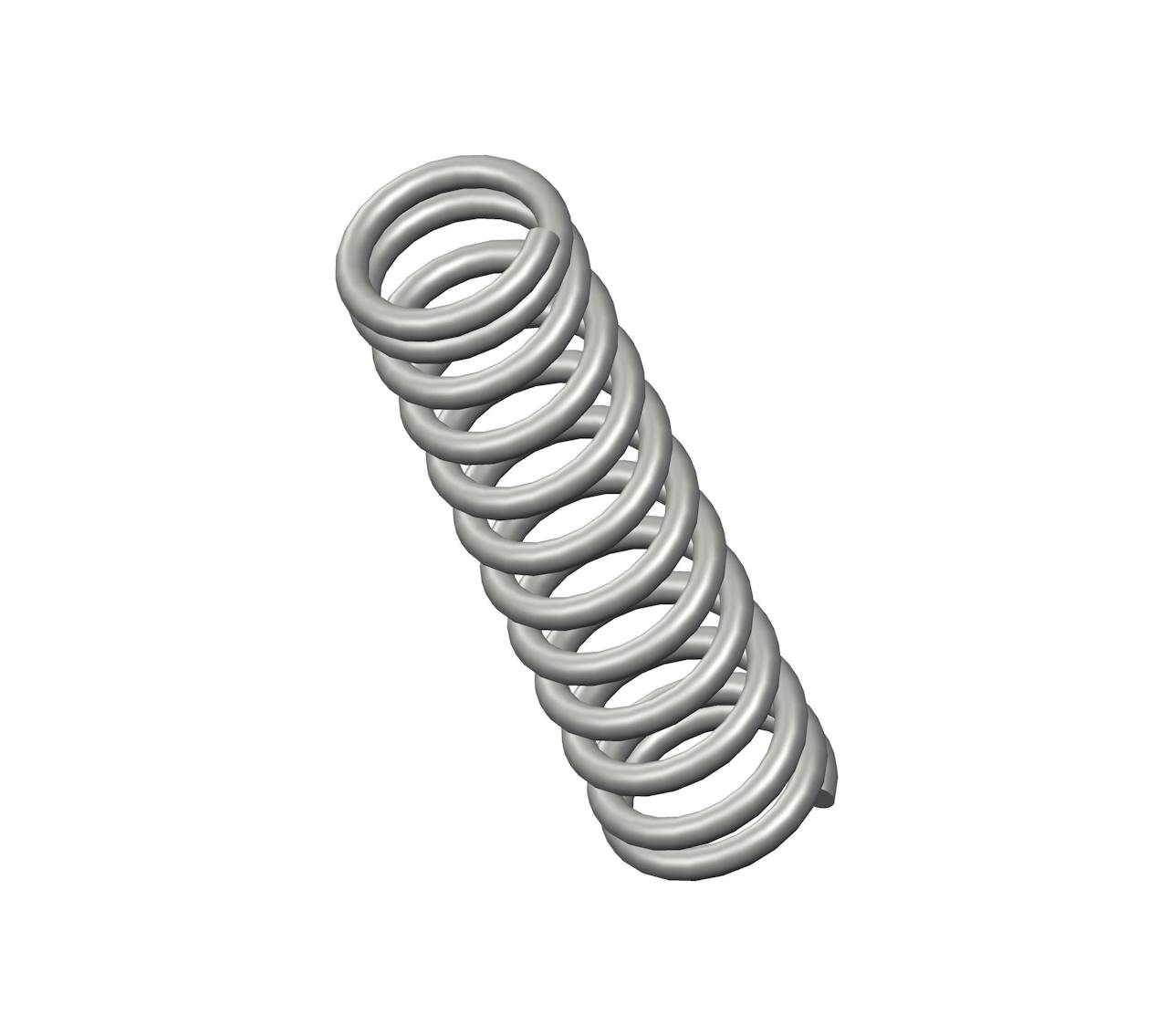

F-83CS - 0.72" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from music wire with 12 coils and closed ends. This spring features an O.D. of 0.188", and an I.D. of 0.136".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | F-83 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 0.72 in |
| Inside Diameter | 0.136 in |
| Material | Music Wire |
| Outside Diameter | 0.188 in |
| Part Type | Standard |
| Rate | 15 lbs/in |
| SKU | F-83CS |
| Solid Length | 0.34 in |
| Suggested Max Deflection | 0.33 in |
| Suggested Max Load | 5.1 lbf |
| Total Coils | 12 |
| Wire Diameter | 0.026 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | F-83 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 18.29 mm |
| Inside Diameter | 3.45 mm |
| Material | Music Wire |
| Outside Diameter | 4.78 mm |
| Part Type | Standard |
| Rate | 2.63 N/mm |
| SKU | F-83CS |
| Solid Length | 8.64 mm |
| Suggested Max Deflection | 8.38 mm |
| Suggested Max Load | 22.68 N |
| Total Coils | 12 |
| Wire Diameter | 0.66 mm |
The compression spring F-83CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the F-83 compression spring design exhibits exceptional tensile strength and resilience.
The F-83 design is manufactured with a free length of 0.72", with an outer diameter of 0.188", an inner diameter of 0.136", and a total of 12 coils, expertly designed to deliver consistent compression characteristics including a rate of 15 lbs/in.
The F-83CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring F-83 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The F-83 design is manufactured with a free length of 0.72", with an outer diameter of 0.188", an inner diameter of 0.136", and a total of 12 coils, expertly designed to deliver consistent compression characteristics including a rate of 15 lbs/in.
The F-83CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring F-83 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
