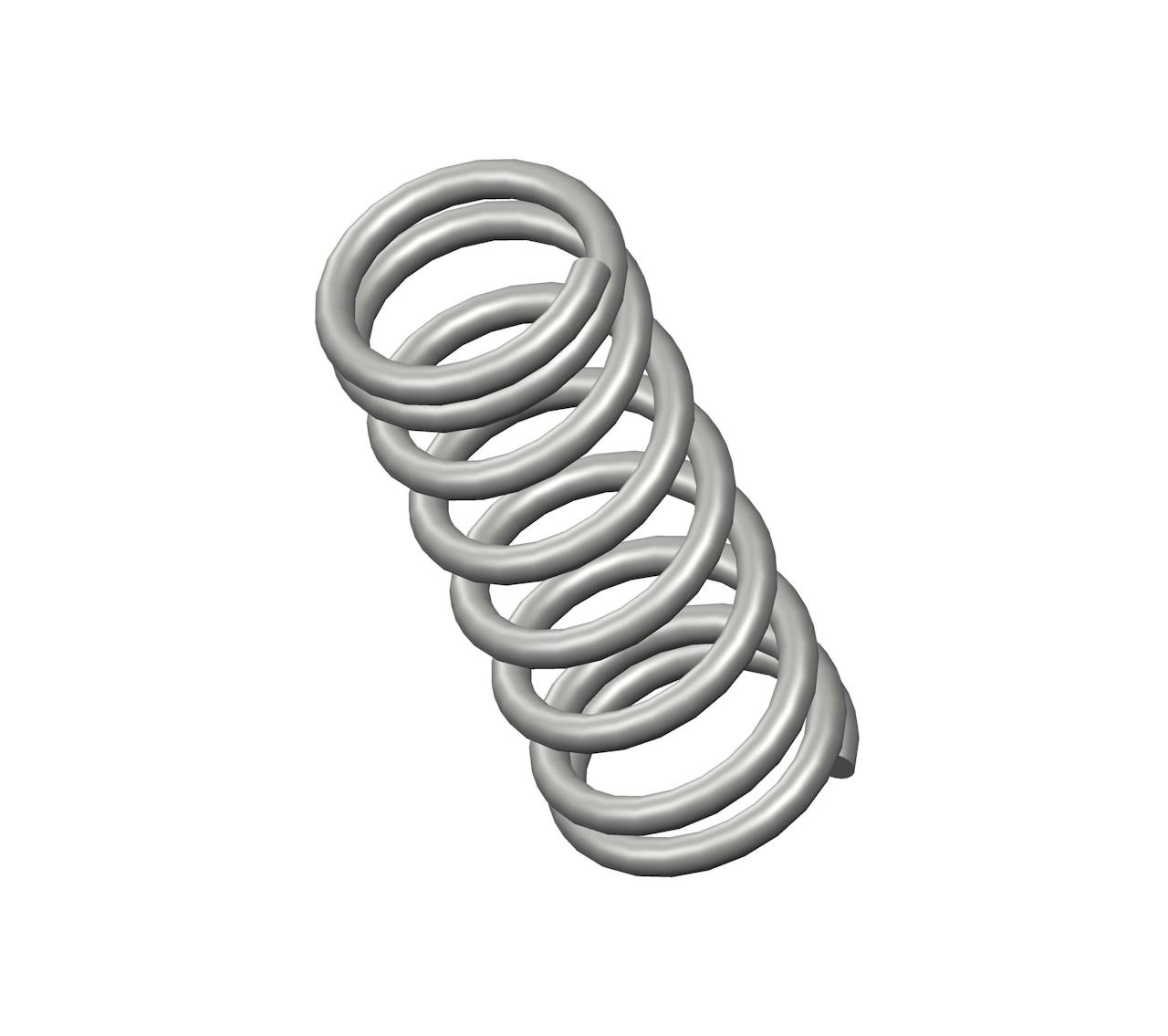

F-60CS - 0.94" Music Wire Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Compression spring manufactured from music wire with 8 coils and closed ends. This spring features an O.D. of 0.36", and an I.D. of 0.27".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | F-60 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 0.94 in |
| Inside Diameter | 0.27 in |
| Material | Music Wire |
| Outside Diameter | 0.36 in |
| Part Type | Standard |
| Rate | 32 lbs/in |
| SKU | F-60CS |
| Solid Length | 0.41 in |
| Suggested Max Deflection | 0.42 in |
| Suggested Max Load | 13 lbf |
| Total Coils | 8 |
| Wire Diameter | 0.045 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | F-60 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 23.88 mm |
| Inside Diameter | 6.86 mm |
| Material | Music Wire |
| Outside Diameter | 9.14 mm |
| Part Type | Standard |
| Rate | 5.6 N/mm |
| SKU | F-60CS |
| Solid Length | 10.41 mm |
| Suggested Max Deflection | 10.67 mm |
| Suggested Max Load | 57.82 N |
| Total Coils | 8 |
| Wire Diameter | 1.14 mm |
The compression spring F-60CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the F-60 compression spring design exhibits exceptional tensile strength and resilience.
The F-60 design is manufactured with a free length of 0.94", with an outer diameter of 0.36", an inner diameter of 0.27", and a total of 8 coils, expertly designed to deliver consistent compression characteristics including a rate of 32 lbs/in.
The F-60CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring F-60 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
