Century Spring

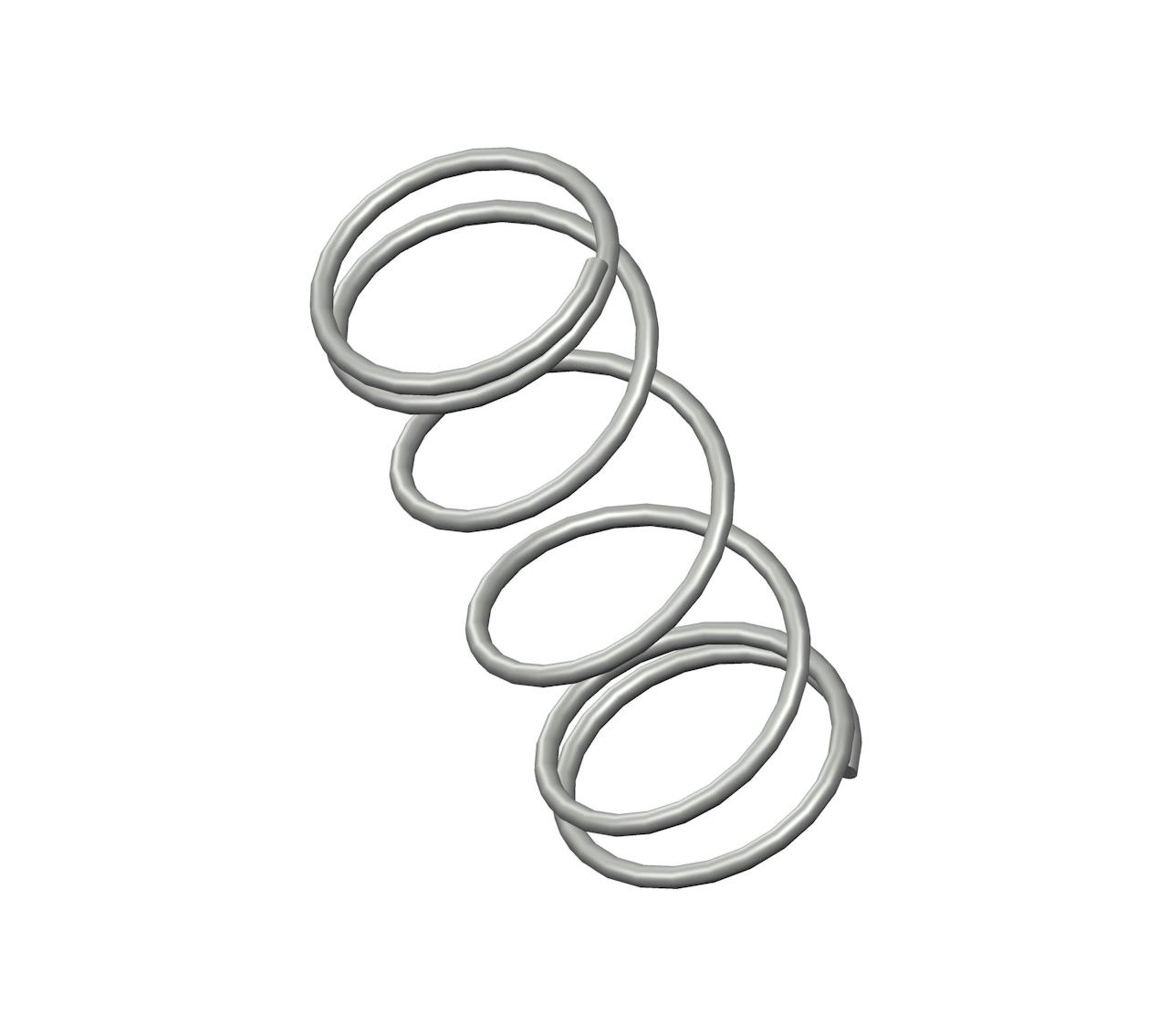

F-59CS - 0.94" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 6 coils and closed ends. This spring features an O.D. of 0.36", and an I.D. of 0.308".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name F-59
Ends Closed
Finish Zinc
Free Length 0.94 in
Inside Diameter 0.308 in
Material Music Wire
Outside Diameter 0.36 in
Part Type Standard
Rate 4.4 lbs/in
SKU F-59CS
Solid Length 0.18 in
Suggested Max Deflection 0.62 in
Suggested Max Load 2.8 lbf
Total Coils 6
Wire Diameter 0.026 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name F-59
Ends Closed
Finish Zinc
Free Length 23.88 mm
Inside Diameter 7.82 mm
Material Music Wire
Outside Diameter 9.14 mm
Part Type Standard
Rate 0.77 N/mm
SKU F-59CS
Solid Length 4.57 mm
Suggested Max Deflection 15.75 mm
Suggested Max Load 12.45 N
Total Coils 6
Wire Diameter 0.66 mm
The F-59 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality music wire and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The F-59CS compression spring is designed with a free length of 2.5" total of 27 coils, and a rate of 24 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The F-59 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
