F-58CS - 2.5" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

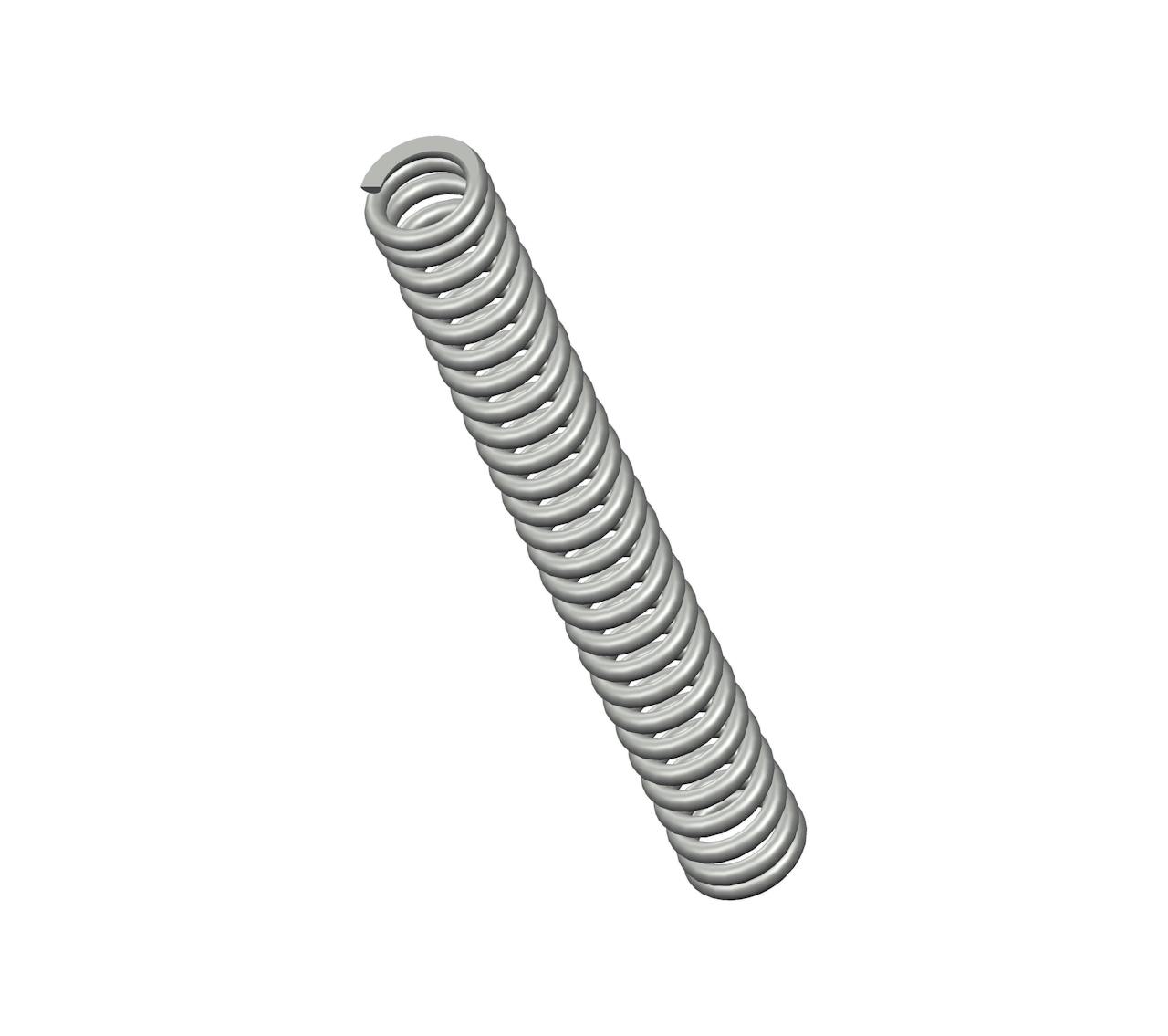

Compression spring manufactured from spring steel with 27 coils and closed & ground ends. This spring features an O.D. of 0.312", and an I.D. of 0.208".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | F-58 |
| Ends | Closed & Ground |
| Finish | Gold Iridite |
| Free Length | 2.5 in |
| Inside Diameter | 0.208 in |
| Material | Spring Steel |
| Outside Diameter | 0.312 in |
| Part Type | Standard |
| Rate | 24 lbs/in |
| SKU | F-58CS |
| Solid Length | 1.4 in |
| Suggested Max Deflection | 0.65 in |
| Suggested Max Load | 15 lbf |
| Total Coils | 27 |
| Wire Diameter | 0.052 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | F-58 |
| Ends | Closed & Ground |
| Finish | Gold Iridite |
| Free Length | 63.5 mm |
| Inside Diameter | 5.28 mm |
| Material | Spring Steel |
| Outside Diameter | 7.92 mm |
| Part Type | Standard |
| Rate | 4.2 N/mm |
| SKU | F-58CS |
| Solid Length | 35.56 mm |
| Suggested Max Deflection | 16.51 mm |
| Suggested Max Load | 66.72 N |
| Total Coils | 27 |
| Wire Diameter | 1.32 mm |
The compression spring F-58CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the F-58 compression spring design exhibits exceptional tensile strength and resilience.
The F-58 design is manufactured with a free length of 2.5", with an outer diameter of 0.312", an inner diameter of 0.208", and a total of 27 coils, expertly designed to deliver consistent compression characteristics including a rate of 24 lbs/in.
The F-58CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring F-58 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
