F-44CS - 1.13" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

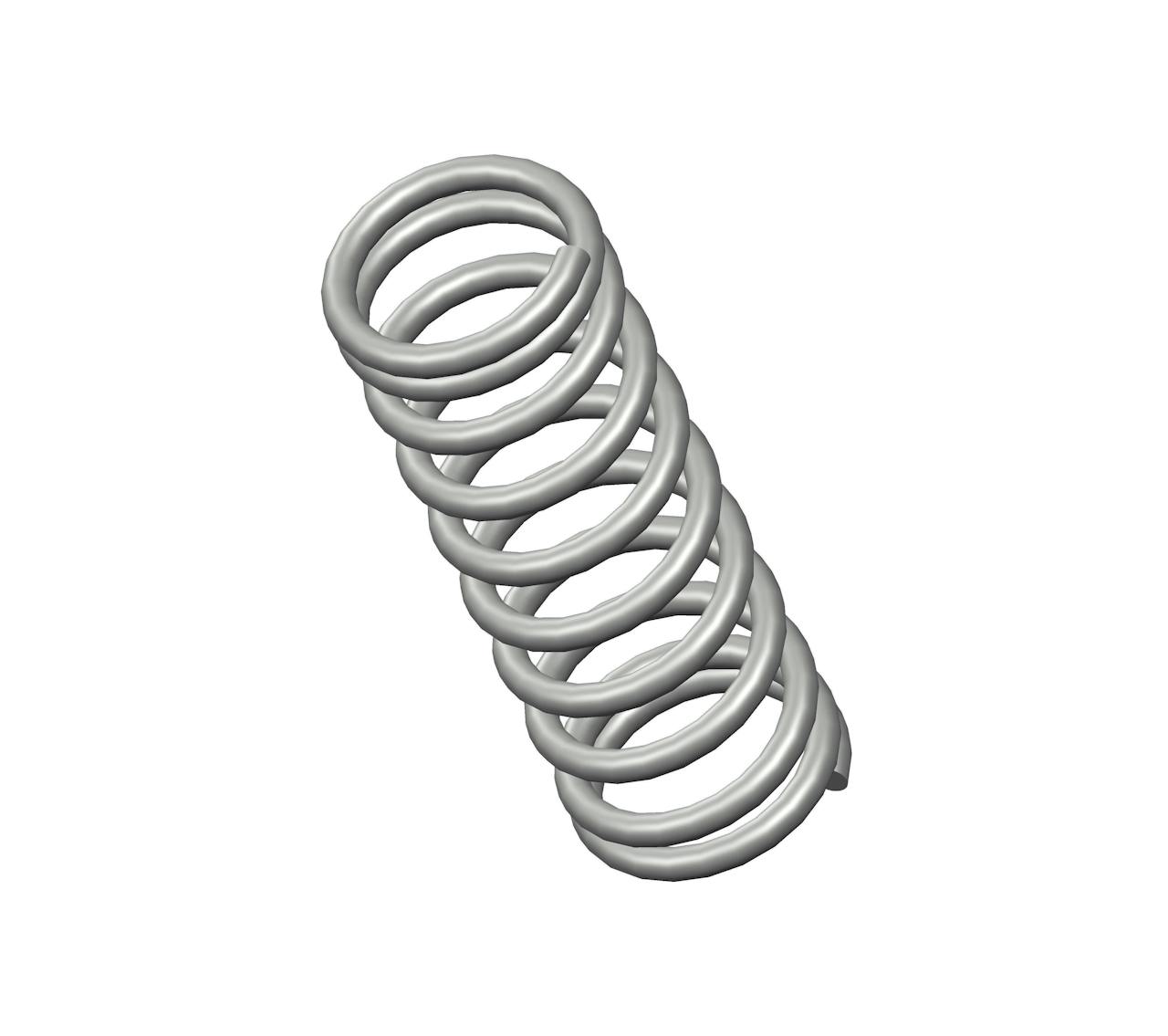

Compression spring manufactured from spring steel with 10 coils and closed ends. This spring features an O.D. of 0.375", and an I.D. of 0.285".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | F-44 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 1.13 in |
| Inside Diameter | 0.285 in |
| Material | Spring Steel |
| Outside Diameter | 0.375 in |
| Part Type | Standard |
| Rate | 21 lbs/in |
| SKU | F-44CS |
| Solid Length | 0.5 in |
| Suggested Max Deflection | 0.45 in |
| Suggested Max Load | 9.2 lbf |
| Total Coils | 10 |
| Wire Diameter | 0.045 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | F-44 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 28.7 mm |
| Inside Diameter | 7.24 mm |
| Material | Spring Steel |
| Outside Diameter | 9.53 mm |
| Part Type | Standard |
| Rate | 3.68 N/mm |
| SKU | F-44CS |
| Solid Length | 12.7 mm |
| Suggested Max Deflection | 11.43 mm |
| Suggested Max Load | 40.92 N |
| Total Coils | 10 |
| Wire Diameter | 1.14 mm |
The compression spring F-44CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the F-44 compression spring design exhibits exceptional tensile strength and resilience.
The F-44 design is manufactured with a free length of 1.13", with an outer diameter of 0.375", an inner diameter of 0.285", and a total of 10 coils, expertly designed to deliver consistent compression characteristics including a rate of 21 lbs/in.
The F-44CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring F-44 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The F-44 design is manufactured with a free length of 1.13", with an outer diameter of 0.375", an inner diameter of 0.285", and a total of 10 coils, expertly designed to deliver consistent compression characteristics including a rate of 21 lbs/in.
The F-44CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring F-44 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
