Century Spring

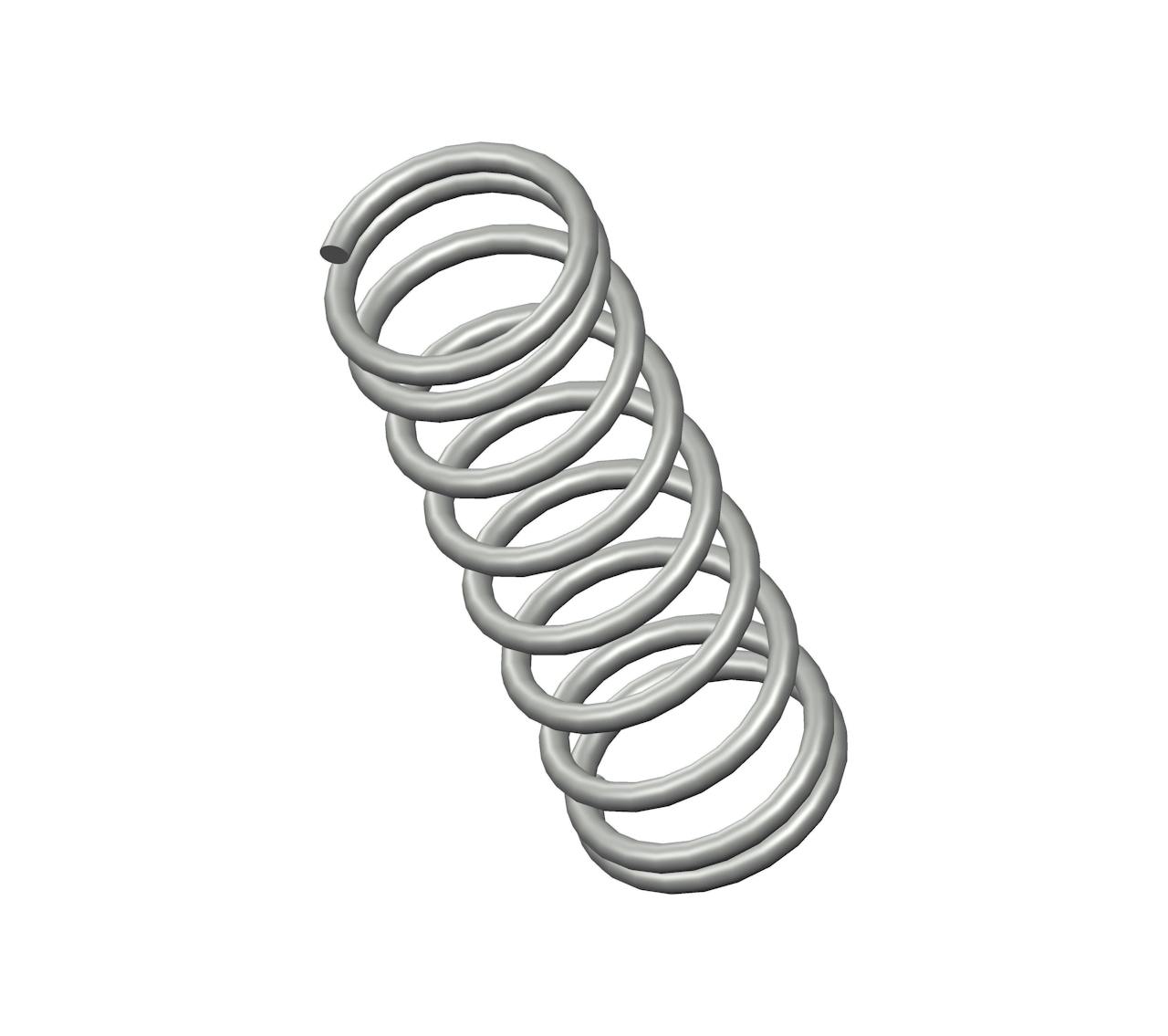

F-41CS - 0.75" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 9 coils and closed ends. This spring features an O.D. of 0.25", and an I.D. of 0.198".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name F-41
Ends Closed
Finish Zinc
Free Length 0.75 in
Inside Diameter 0.198 in
Material Music Wire
Outside Diameter 0.25 in
Part Type Standard
Rate 8.3 lbs/in
SKU F-41CS
Solid Length 0.26 in
Suggested Max Deflection 0.47 in
Suggested Max Load 3.9 lbf
Total Coils 9
Wire Diameter 0.026 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name F-41
Ends Closed
Finish Zinc
Free Length 19.05 mm
Inside Diameter 5.03 mm
Material Music Wire
Outside Diameter 6.35 mm
Part Type Standard
Rate 1.45 N/mm
SKU F-41CS
Solid Length 6.6 mm
Suggested Max Deflection 11.94 mm
Suggested Max Load 17.35 N
Total Coils 9
Wire Diameter 0.66 mm
The compression spring F-41CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the F-41 compression spring design exhibits exceptional tensile strength and resilience.

The F-41 design is manufactured with a free length of 0.75", with an outer diameter of 0.25", an inner diameter of 0.198", and a total of 9 coils, expertly designed to deliver consistent compression characteristics including a rate of 8.3 lbs/in.

The F-41CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring F-41 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
