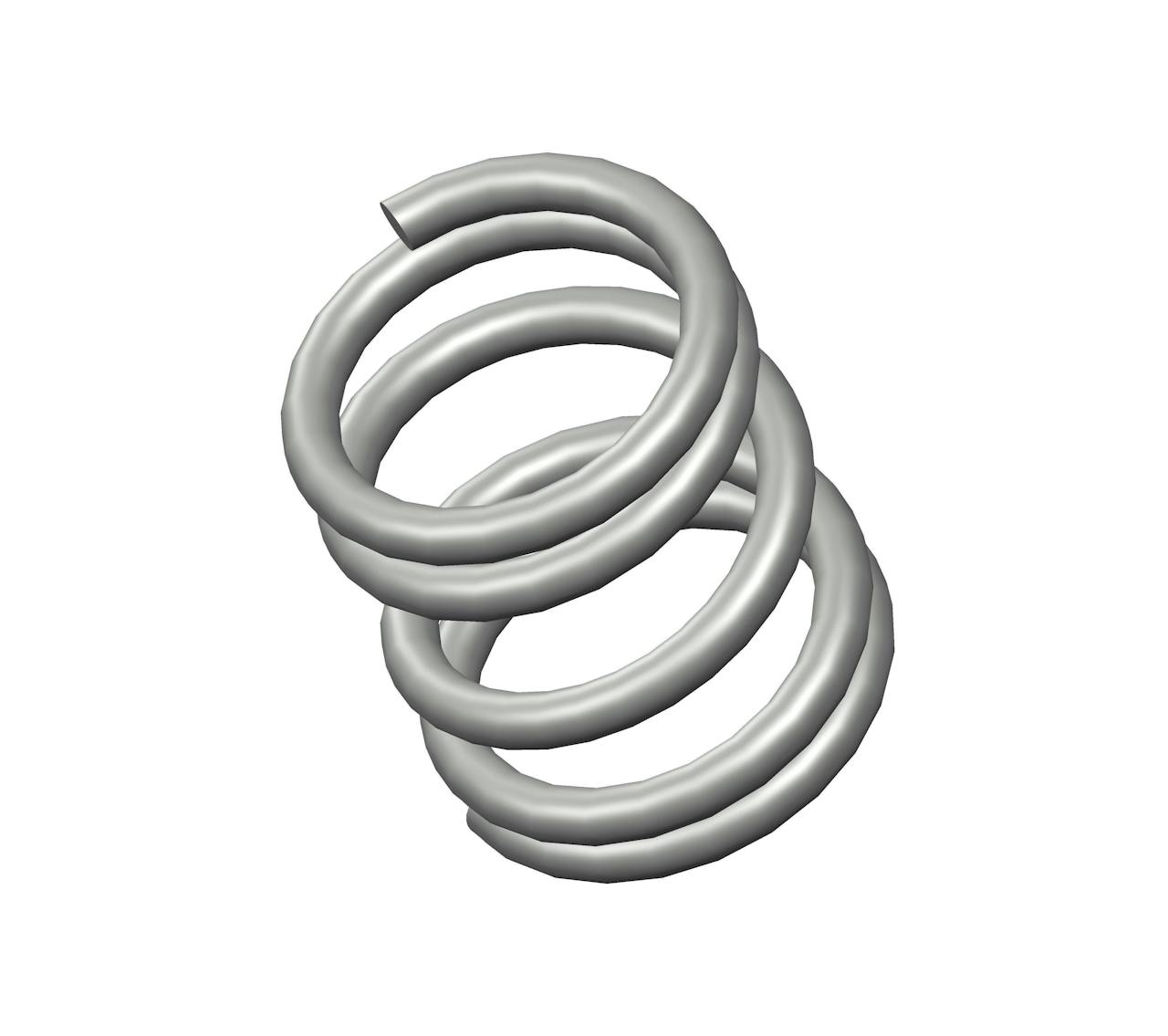

F-33CS - 0.47" Spring Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Compression spring manufactured from spring steel with 4.75 coils and closed ends. This spring features an O.D. of 0.375", and an I.D. of 0.285".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | F-33 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 0.47 in |
| Inside Diameter | 0.285 in |
| Material | Spring Steel |
| Outside Diameter | 0.375 in |
| Part Type | Standard |
| Rate | 94 lbs/in |
| SKU | F-33CS |
| Solid Length | 0.21 in |
| Suggested Max Deflection | 0.1 in |
| Suggested Max Load | 9.2 lbf |
| Total Coils | 4.75 |
| Wire Diameter | 0.045 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | F-33 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 11.94 mm |
| Inside Diameter | 7.24 mm |
| Material | Spring Steel |
| Outside Diameter | 9.53 mm |
| Part Type | Standard |
| Rate | 16.46 N/mm |
| SKU | F-33CS |
| Solid Length | 5.33 mm |
| Suggested Max Deflection | 2.54 mm |
| Suggested Max Load | 40.92 N |
| Total Coils | 4.75 |
| Wire Diameter | 1.14 mm |
The compression spring F-33CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the F-33 compression spring design exhibits exceptional tensile strength and resilience.
The F-33 design is manufactured with a free length of 0.47", with an outer diameter of 0.375", an inner diameter of 0.285", and a total of 4.75 coils, expertly designed to deliver consistent compression characteristics including a rate of 94 lbs/in.
The F-33CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring F-33 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The F-33 design is manufactured with a free length of 0.47", with an outer diameter of 0.375", an inner diameter of 0.285", and a total of 4.75 coils, expertly designed to deliver consistent compression characteristics including a rate of 94 lbs/in.
The F-33CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring F-33 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
