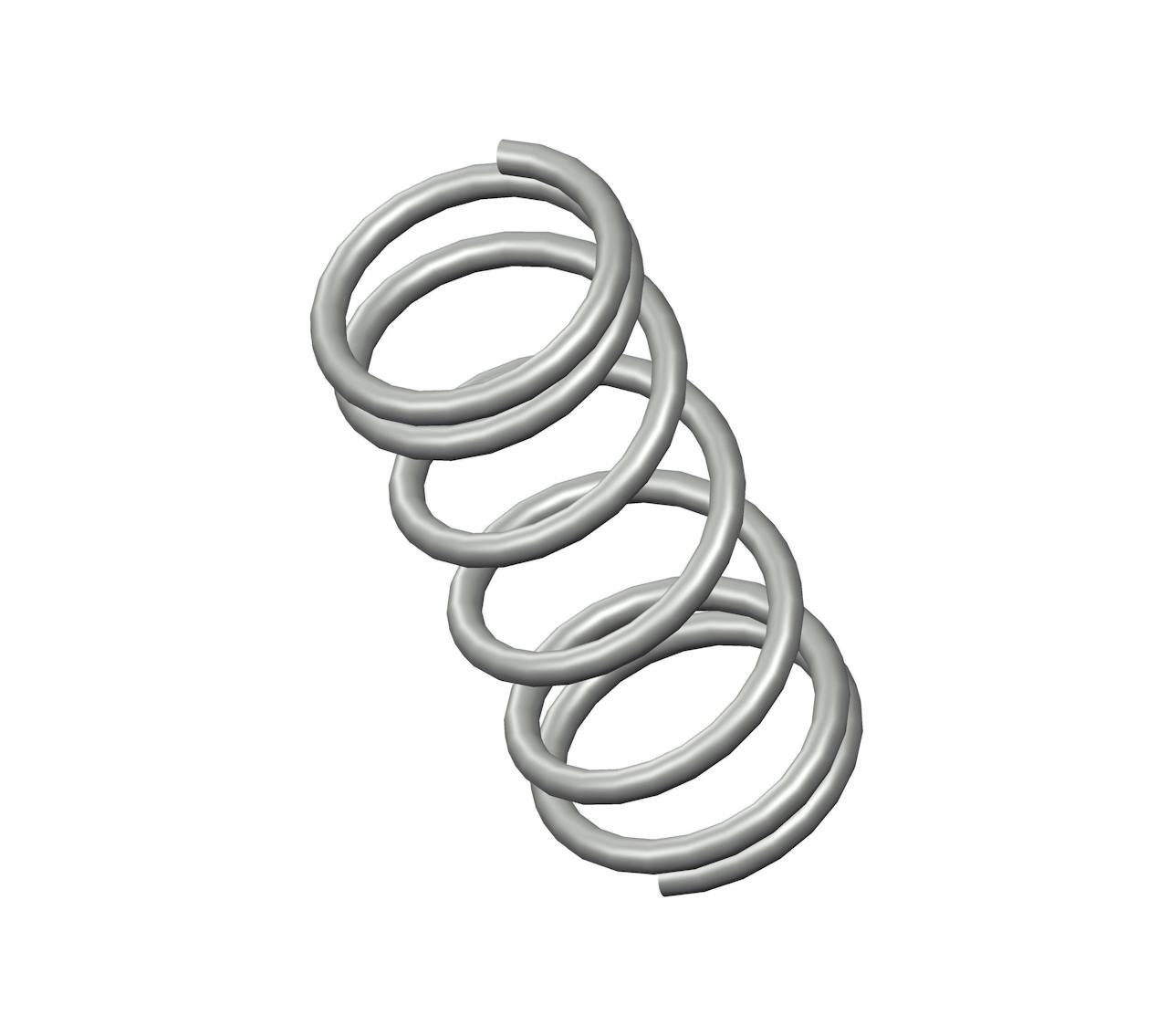

F-12CS - 0.59" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from music wire with 6.5 coils and closed ends. This spring features an O.D. of 0.25", and an I.D. of 0.198".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | F-12 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 0.59 in |
| Inside Diameter | 0.198 in |
| Material | Music Wire |
| Outside Diameter | 0.25 in |
| Part Type | Standard |
| Rate | 13 lbs/in |
| SKU | F-12CS |
| Solid Length | 0.2 in |
| Suggested Max Deflection | 0.3 in |
| Suggested Max Load | 3.9 lbf |
| Total Coils | 6.5 |
| Wire Diameter | 0.026 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | F-12 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 14.99 mm |
| Inside Diameter | 5.03 mm |
| Material | Music Wire |
| Outside Diameter | 6.35 mm |
| Part Type | Standard |
| Rate | 2.28 N/mm |
| SKU | F-12CS |
| Solid Length | 5.08 mm |
| Suggested Max Deflection | 7.62 mm |
| Suggested Max Load | 17.35 N |
| Total Coils | 6.5 |
| Wire Diameter | 0.66 mm |
The compression spring F-12CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the F-12 compression spring design exhibits exceptional tensile strength and resilience.
The F-12 design is manufactured with a free length of 0.59", with an outer diameter of 0.25", an inner diameter of 0.198", and a total of 6.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 13 lbs/in.
The F-12CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring F-12 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The F-12 design is manufactured with a free length of 0.59", with an outer diameter of 0.25", an inner diameter of 0.198", and a total of 6.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 13 lbs/in.
The F-12CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring F-12 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
