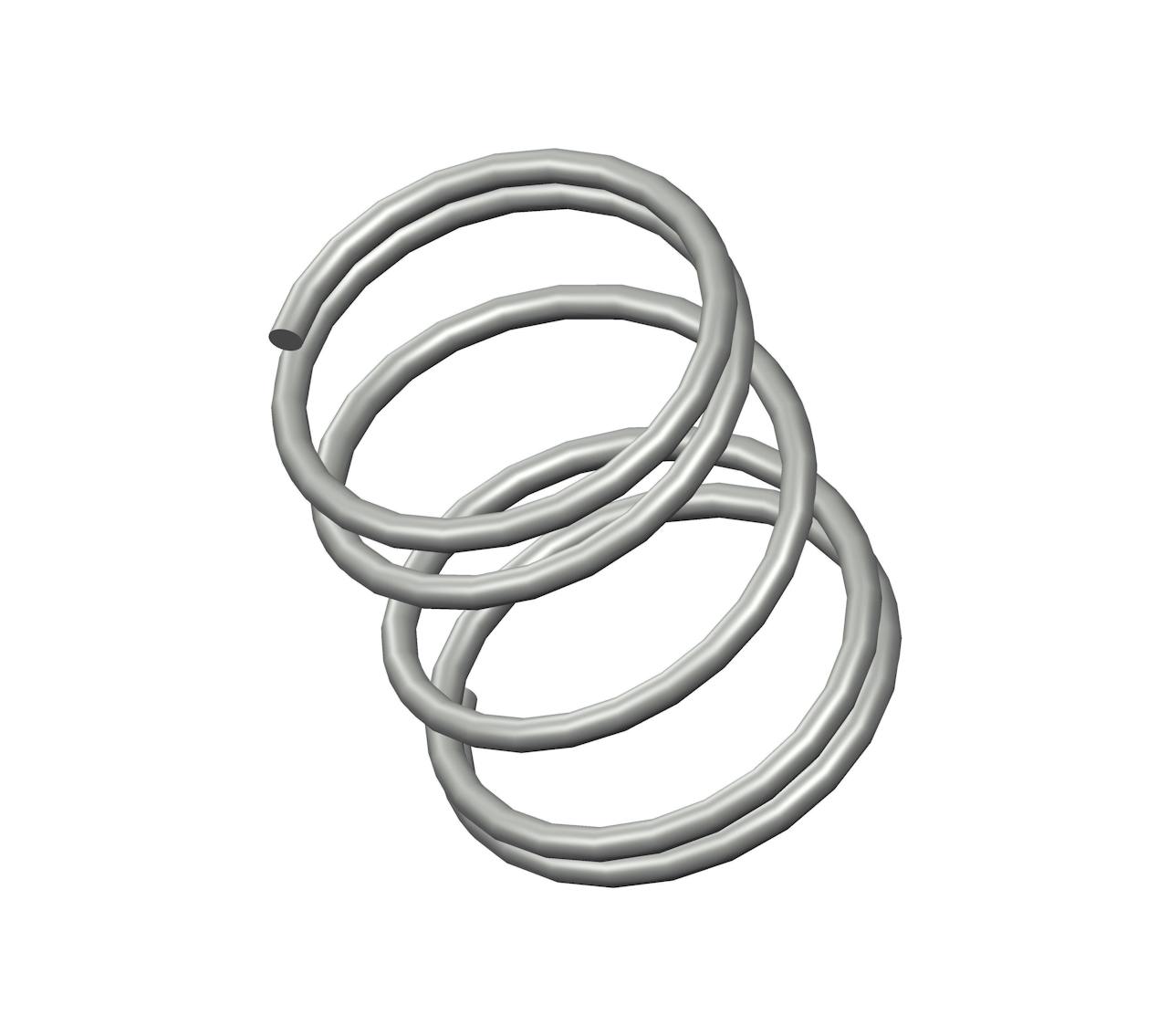

EE-89CS - 0.5" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from music wire with 5 coils and closed ends. This spring features an O.D. of 0.406", and an I.D. of 0.348".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | EE-89 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 0.5 in |
| Inside Diameter | 0.348 in |
| Material | Music Wire |
| Outside Diameter | 0.406 in |
| Part Type | Standard |
| Rate | 6.3 lbs/in |
| SKU | EE-89CS |
| Solid Length | 0.17 in |
| Suggested Max Deflection | 0.33 in |
| Suggested Max Load | 2.1 lbf |
| Total Coils | 5 |
| Wire Diameter | 0.029 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | EE-89 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 12.7 mm |
| Inside Diameter | 8.84 mm |
| Material | Music Wire |
| Outside Diameter | 10.31 mm |
| Part Type | Standard |
| Rate | 1.1 N/mm |
| SKU | EE-89CS |
| Solid Length | 4.32 mm |
| Suggested Max Deflection | 8.38 mm |
| Suggested Max Load | 9.34 N |
| Total Coils | 5 |
| Wire Diameter | 0.74 mm |
The compression spring EE-89CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the EE-89 compression spring design exhibits exceptional tensile strength and resilience.
The EE-89 design is manufactured with a free length of 0.5", with an outer diameter of 0.406", an inner diameter of 0.348", and a total of 5 coils, expertly designed to deliver consistent compression characteristics including a rate of 6.3 lbs/in.
The EE-89CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring EE-89 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The EE-89 design is manufactured with a free length of 0.5", with an outer diameter of 0.406", an inner diameter of 0.348", and a total of 5 coils, expertly designed to deliver consistent compression characteristics including a rate of 6.3 lbs/in.
The EE-89CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring EE-89 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
