EE-88CS - 2" Music Wire Compression Spring

Inventory:
Estimated Lead Time

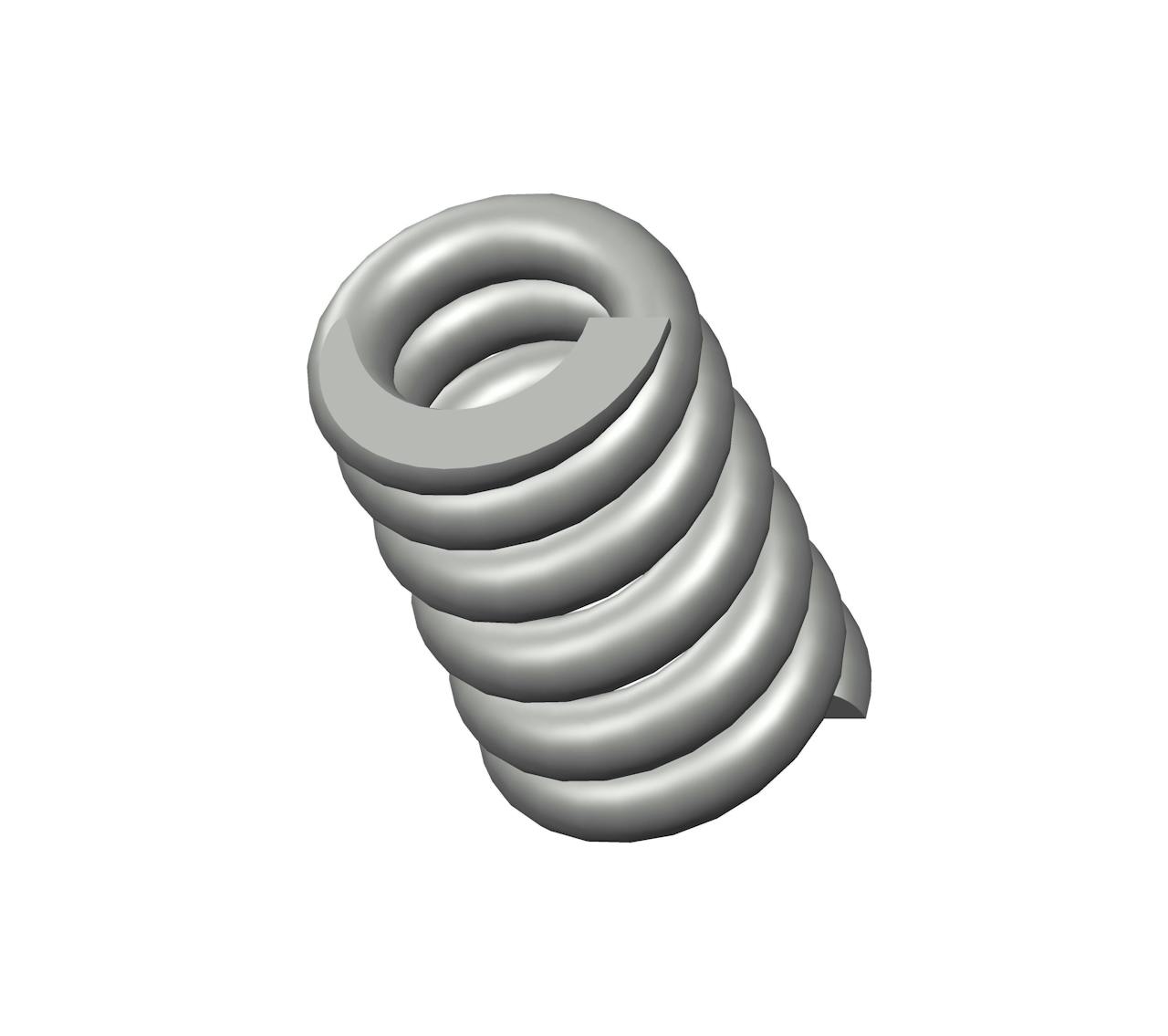

Compression spring manufactured from music wire with 5.5 coils and closed & ground ends. This spring features an O.D. of 1.234", and an I.D. of 0.71".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name EE-88
Ends Closed & Ground
Finish Zinc
Free Length 2 in
Inside Diameter 0.71 in
Material Music Wire
Outside Diameter 1.234 in
Part Type Standard
Rate 2132 lbs/in
SKU EE-88CS
Solid Length 1.43 in
Suggested Max Deflection 0.245 in
Suggested Max Load 524 lbf
Total Coils 5.5
Wire Diameter 0.262 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name EE-88
Ends Closed & Ground
Finish Zinc
Free Length 50.8 mm
Inside Diameter 18.03 mm
Material Music Wire
Outside Diameter 31.34 mm
Part Type Standard
Rate 373.31 N/mm
SKU EE-88CS
Solid Length 36.32 mm
Suggested Max Deflection 6.22 mm
Suggested Max Load 2330.75 N
Total Coils 5.5
Wire Diameter 6.65 mm
The EE-88CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.262" diameter music wire, the EE-88 spring design exhibits reliable strength across its 5.5 active coils, withstanding repeated compression cycles with a maximum load of 524 lbf without succumbing to fatigue.

We manufacture the EE-88 design to provide a compression spring that is 2" long at rest and provides a consistent rate of 2132 lbs/in along its recommended maximum of 0.245" deflection. For best results, your application should fully accommodate the inner (0.71") and outer (1.234") diameters of this spring and be designed for its closed & ground end configuration.
