Century Spring

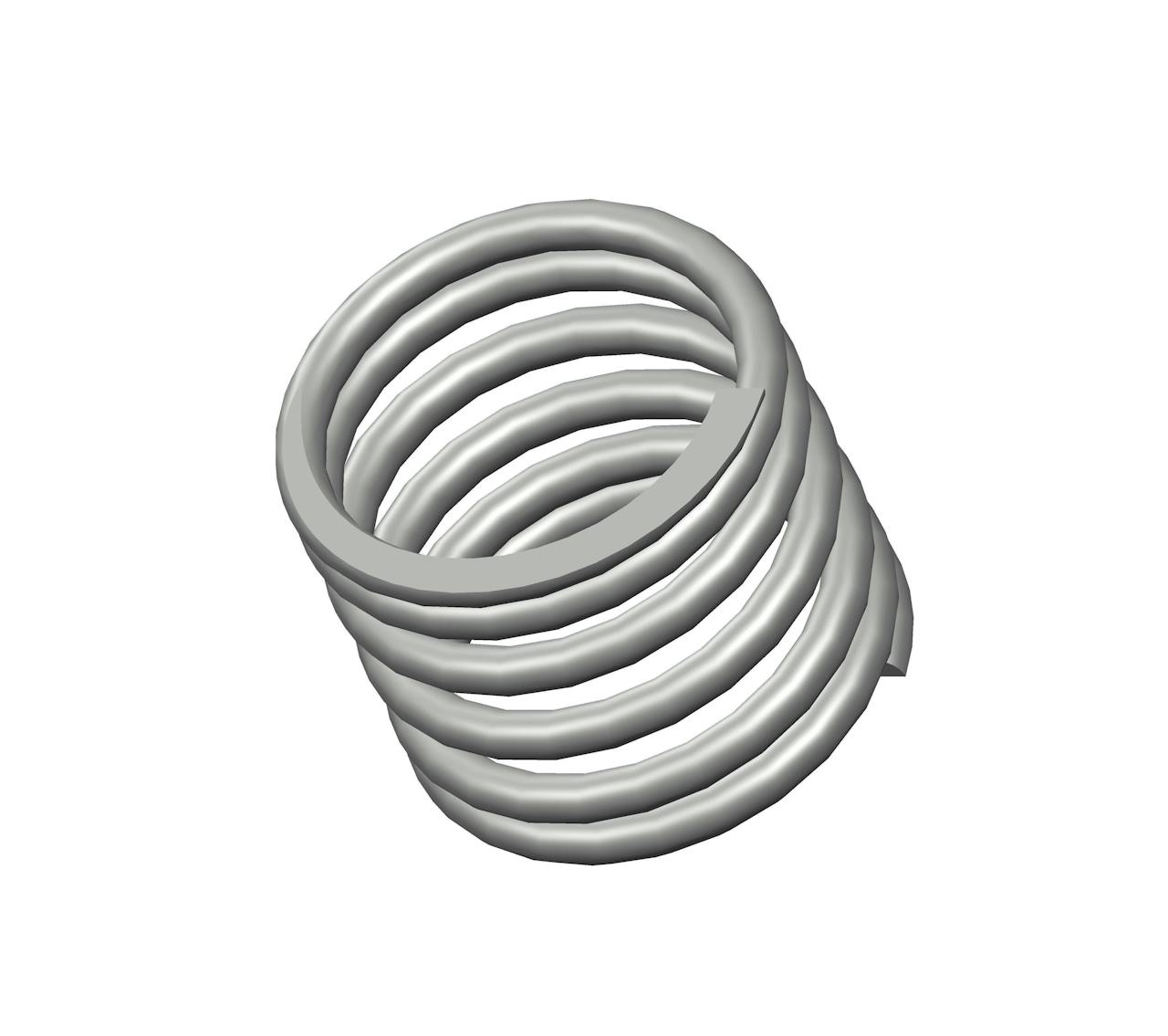

EE-84CS - 1.19" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 6 coils and closed & ground ends. This spring features an O.D. of 1.359", and an I.D. of 1.099".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name EE-84
Ends Closed & Ground
Finish None
Free Length 1.19 in
Inside Diameter 1.099 in
Material Spring Steel
Outside Diameter 1.359 in
Part Type Standard
Rate 55 lbs/in
SKU EE-84CS
Solid Length 0.78 in
Suggested Max Deflection 0.41 in
Suggested Max Load 23 lbf
Total Coils 6
Wire Diameter 0.13 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name EE-84
Ends Closed & Ground
Finish None
Free Length 30.23 mm
Inside Diameter 27.91 mm
Material Spring Steel
Outside Diameter 34.52 mm
Part Type Standard
Rate 9.63 N/mm
SKU EE-84CS
Solid Length 19.81 mm
Suggested Max Deflection 10.41 mm
Suggested Max Load 102.3 N
Total Coils 6
Wire Diameter 3.3 mm
The EE-84CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.13" diameter spring steel, the EE-84 spring design exhibits reliable strength across its 6 active coils, withstanding repeated compression cycles with a maximum load of 23 lbf without succumbing to fatigue.

We manufacture the EE-84 design to provide a compression spring that is 1.19" long at rest and provides a consistent rate of 55 lbs/in along its recommended maximum of 0.41" deflection. For best results, your application should fully accommodate the inner (1.099") and outer (1.359") diameters of this spring and be designed for its closed & ground end configuration.
