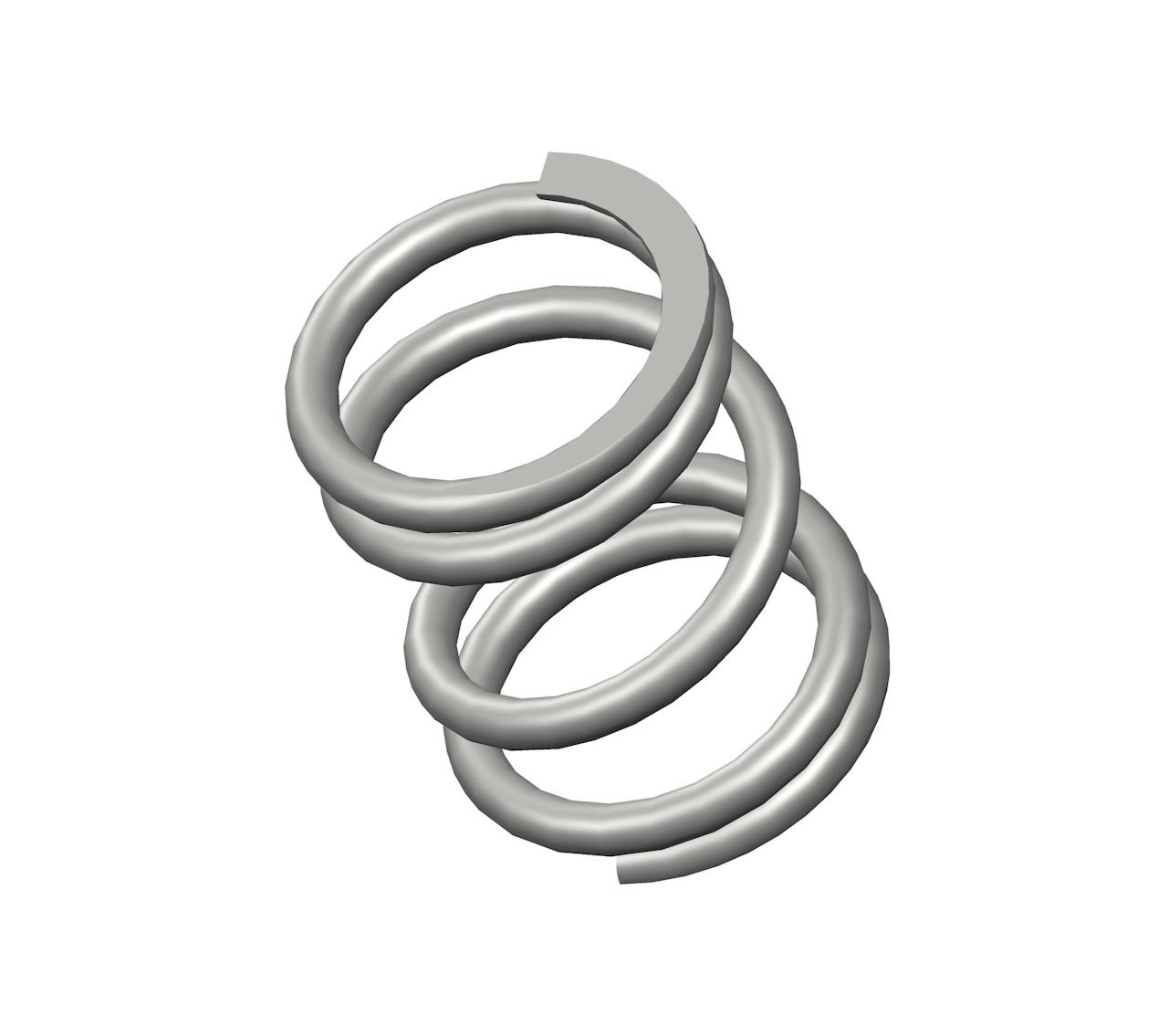

EE-72CS - 0.47" Spring Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Compression spring manufactured from spring steel with 4.5 coils and closed & ground ends. This spring features an O.D. of 0.36", and an I.D. of 0.276".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | EE-72 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 0.47 in |
| Inside Diameter | 0.276 in |
| Material | Spring Steel |
| Outside Diameter | 0.36 in |
| Part Type | Standard |
| Rate | 56 lbs/in |
| SKU | EE-72CS |
| Solid Length | 0.19 in |
| Suggested Max Deflection | 0.14 in |
| Suggested Max Load | 7.8 lbf |
| Total Coils | 4.5 |
| Wire Diameter | 0.042 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | EE-72 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 11.94 mm |
| Inside Diameter | 7.01 mm |
| Material | Spring Steel |
| Outside Diameter | 9.14 mm |
| Part Type | Standard |
| Rate | 9.81 N/mm |
| SKU | EE-72CS |
| Solid Length | 4.83 mm |
| Suggested Max Deflection | 3.56 mm |
| Suggested Max Load | 34.69 N |
| Total Coils | 4.5 |
| Wire Diameter | 1.07 mm |
The EE-72 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality spring steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The EE-72CS compression spring is designed with a free length of 0.75" total of 4.5 coils, and a rate of 534 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The EE-72 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The EE-72CS compression spring is designed with a free length of 0.75" total of 4.5 coils, and a rate of 534 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The EE-72 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
