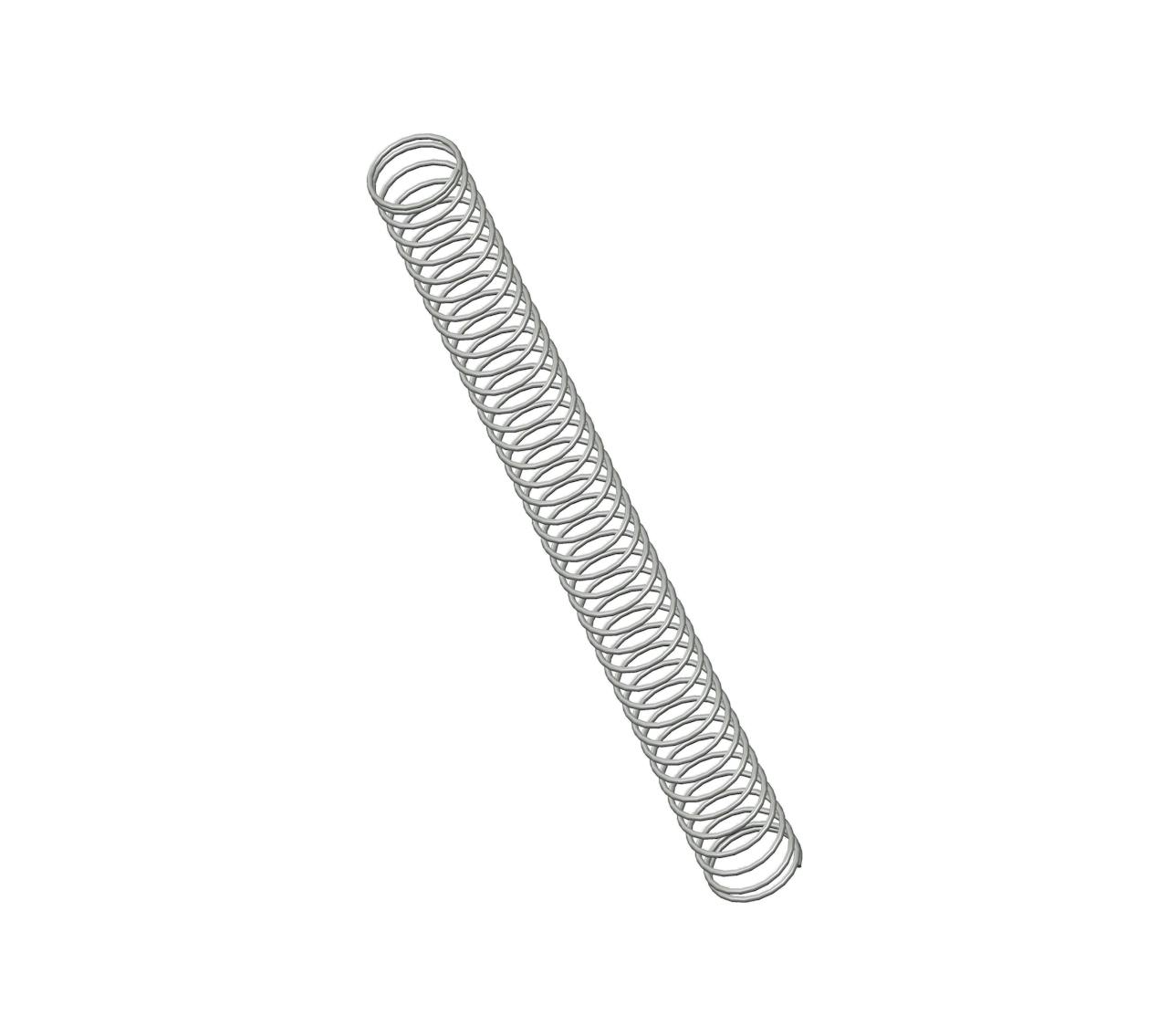

EE-66CS - 1.75" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from music wire with 40 coils and closed ends. This spring features an O.D. of 0.156", and an I.D. of 0.136".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | EE-66 |
| Ends | Closed |
| Finish | None |
| Free Length | 1.75 in |
| Inside Diameter | 0.136 in |
| Material | Music Wire |
| Outside Diameter | 0.156 in |
| Part Type | Standard |
| Rate | 0.12 lbs/in |
| SKU | EE-66CS |
| Solid Length | 0.41 in |
| Suggested Max Deflection | 1.3 in |
| Suggested Max Load | 0.16 lbf |
| Total Coils | 40 |
| Wire Diameter | 0.01 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | EE-66 |
| Ends | Closed |
| Finish | None |
| Free Length | 44.45 mm |
| Inside Diameter | 3.45 mm |
| Material | Music Wire |
| Outside Diameter | 3.96 mm |
| Part Type | Standard |
| Rate | 0.02 N/mm |
| SKU | EE-66CS |
| Solid Length | 10.41 mm |
| Suggested Max Deflection | 33.02 mm |
| Suggested Max Load | 0.71 N |
| Total Coils | 40 |
| Wire Diameter | 0.25 mm |
The compression spring EE-66CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the EE-66 compression spring design exhibits exceptional tensile strength and resilience.
The EE-66 design is manufactured with a free length of 1.75", with an outer diameter of 0.156", an inner diameter of 0.136", and a total of 40 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.12 lbs/in.
The EE-66CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring EE-66 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The EE-66 design is manufactured with a free length of 1.75", with an outer diameter of 0.156", an inner diameter of 0.136", and a total of 40 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.12 lbs/in.
The EE-66CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring EE-66 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
