EE-62CS - 1.88" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

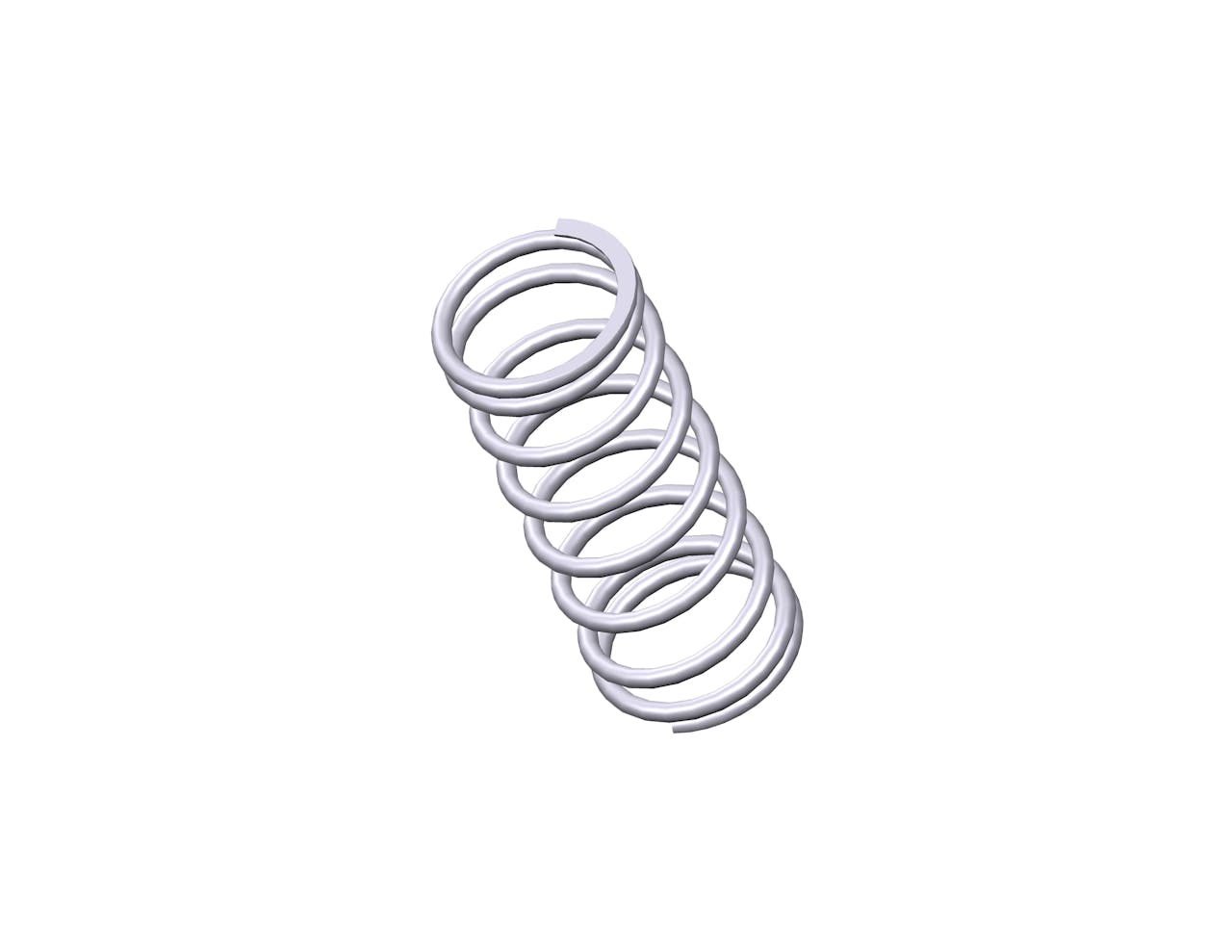

Compression spring manufactured from spring steel with 8.5 coils and closed & ground ends. This spring features an O.D. of 0.75", and an I.D. of 0.61".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | EE-62 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 1.88 in |
| Inside Diameter | 0.61 in |
| Material | Spring Steel |
| Outside Diameter | 0.75 in |
| Part Type | Standard |
| Rate | 17 lbs/in |
| SKU | EE-62CS |
| Solid Length | 0.6 in |
| Suggested Max Deflection | 0.93 in |
| Suggested Max Load | 16 lbf |
| Total Coils | 8.5 |
| Wire Diameter | 0.07 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | EE-62 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 47.75 mm |
| Inside Diameter | 15.49 mm |
| Material | Spring Steel |
| Outside Diameter | 19.05 mm |
| Part Type | Standard |
| Rate | 2.98 N/mm |
| SKU | EE-62CS |
| Solid Length | 15.24 mm |
| Suggested Max Deflection | 23.62 mm |
| Suggested Max Load | 71.17 N |
| Total Coils | 8.5 |
| Wire Diameter | 1.78 mm |
The compression spring EE-62CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the EE-62 compression spring design exhibits exceptional tensile strength and resilience.
The EE-62 design is manufactured with a free length of 1.88", with an outer diameter of 0.75", an inner diameter of 0.61", and a total of 8.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 17 lbs/in.
The EE-62CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring EE-62 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The EE-62 design is manufactured with a free length of 1.88", with an outer diameter of 0.75", an inner diameter of 0.61", and a total of 8.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 17 lbs/in.
The EE-62CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring EE-62 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
