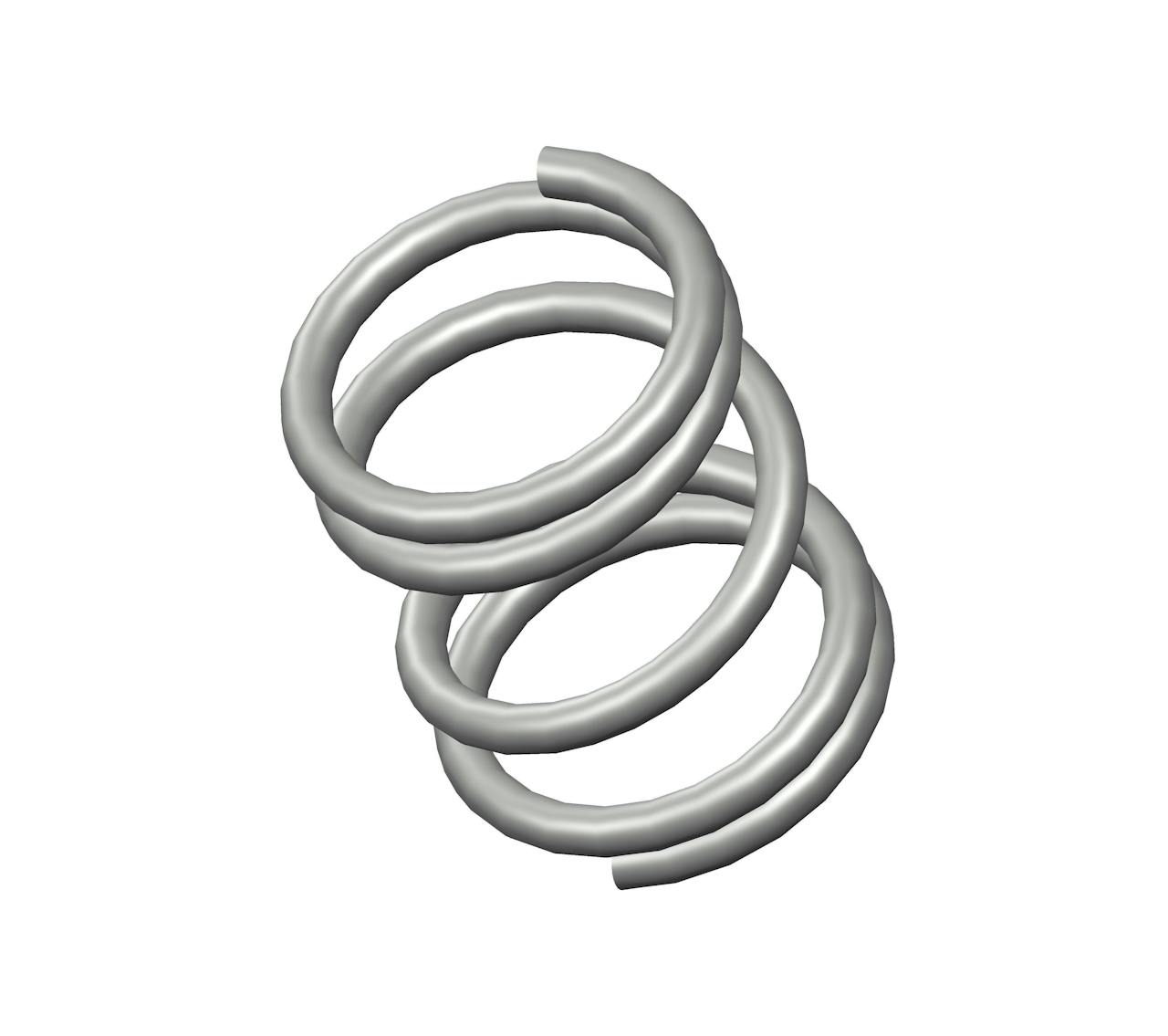

EE-50CS - 0.5" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from spring steel with 4.5 coils and closed ends. This spring features an O.D. of 0.375", and an I.D. of 0.293".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | EE-50 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.5 in |
| Inside Diameter | 0.293 in |
| Material | Spring Steel |
| Outside Diameter | 0.375 in |
| Part Type | Standard |
| Rate | 44 lbs/in |
| SKU | EE-50CS |
| Solid Length | 0.23 in |
| Suggested Max Deflection | 0.16 in |
| Suggested Max Load | 7 lbf |
| Total Coils | 4.5 |
| Wire Diameter | 0.041 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | EE-50 |
| Ends | Closed |
| Finish | None |
| Free Length | 12.7 mm |
| Inside Diameter | 7.44 mm |
| Material | Spring Steel |
| Outside Diameter | 9.53 mm |
| Part Type | Standard |
| Rate | 7.7 N/mm |
| SKU | EE-50CS |
| Solid Length | 5.84 mm |
| Suggested Max Deflection | 4.06 mm |
| Suggested Max Load | 31.14 N |
| Total Coils | 4.5 |
| Wire Diameter | 1.04 mm |
The compression spring EE-50CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the EE-50 compression spring design exhibits exceptional tensile strength and resilience.
The EE-50 design is manufactured with a free length of 0.5", with an outer diameter of 0.375", an inner diameter of 0.293", and a total of 4.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 44 lbs/in.
The EE-50CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring EE-50 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
