EE-3CS - 0.25" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

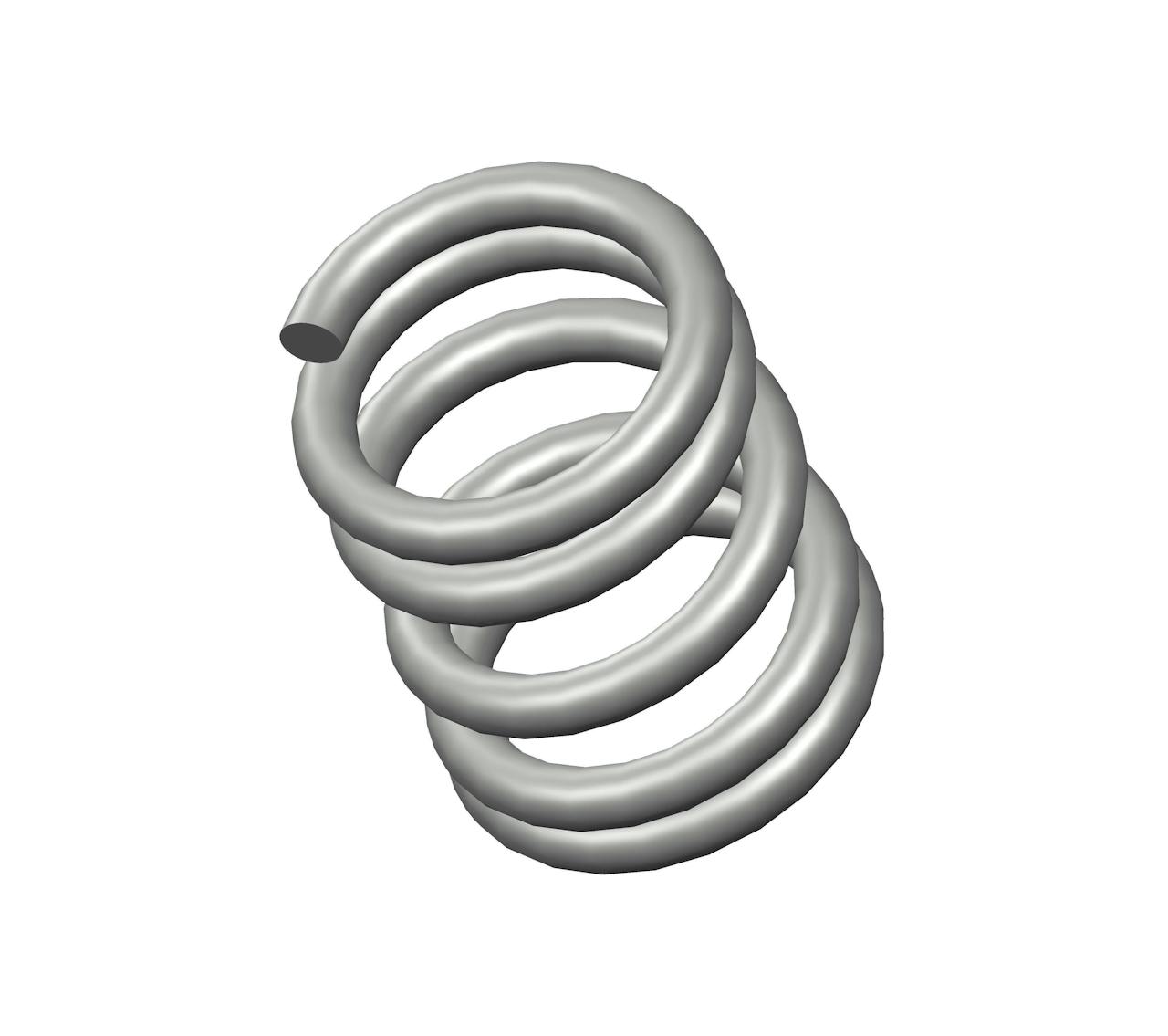

Compression spring manufactured from music wire with 5 coils and closed ends. This spring features an O.D. of 0.188", and an I.D. of 0.136".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name EE-3
Ends Closed
Finish None
Free Length 0.25 in
Inside Diameter 0.136 in
Material Music Wire
Outside Diameter 0.188 in
Part Type Standard
Rate 52 lbs/in
SKU EE-3CS
Solid Length 0.16 in
Suggested Max Deflection 0.09 in
Suggested Max Load 4.9 lbf
Total Coils 5
Wire Diameter 0.026 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name EE-3
Ends Closed
Finish None
Free Length 6.35 mm
Inside Diameter 3.45 mm
Material Music Wire
Outside Diameter 4.78 mm
Part Type Standard
Rate 9.11 N/mm
SKU EE-3CS
Solid Length 4.06 mm
Suggested Max Deflection 2.29 mm
Suggested Max Load 21.8 N
Total Coils 5
Wire Diameter 0.66 mm
The EE-3CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.026" diameter music wire, the EE-3 spring design exhibits reliable strength across its 5 active coils, withstanding repeated compression cycles with a maximum load of 4.9 lbf without succumbing to fatigue.

We manufacture the EE-3 design to provide a compression spring that is 0.25" long at rest and provides a consistent rate of 52 lbs/in along its recommended maximum of 0.09" deflection. For best results, your application should fully accommodate the inner (0.136") and outer (0.188") diameters of this spring and be designed for its closed end configuration.
