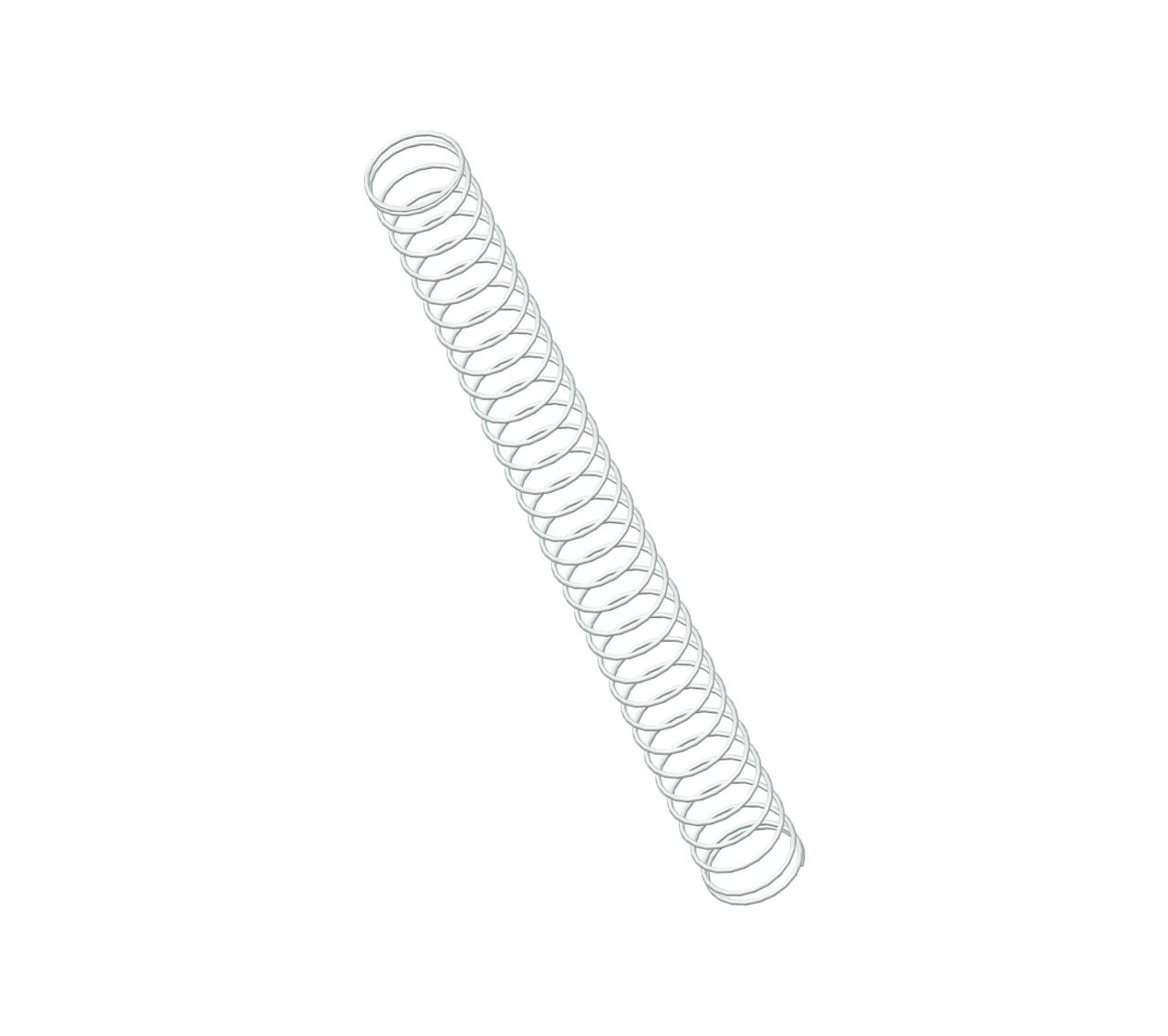

EE-14CS - 2" 302/304 Stainless Steel Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 32 coils and closed & ground ends. This spring features an O.D. of 0.188", and an I.D. of 0.168".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name EE-14
Ends Closed & Ground
Finish None
Free Length 2 in
Inside Diameter 0.168 in
Material 302/304 Stainless Steel
Outside Diameter 0.188 in
Part Type Standard
Rate 0.08 lbs/in
SKU EE-14CS
Solid Length 0.32 in
Suggested Max Deflection 1.7 in
Suggested Max Load 0.13 lbf
Total Coils 32
Wire Diameter 0.01 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name EE-14
Ends Closed & Ground
Finish None
Free Length 50.8 mm
Inside Diameter 4.27 mm
Material 302/304 Stainless Steel
Outside Diameter 4.78 mm
Part Type Standard
Rate 0.01 N/mm
SKU EE-14CS
Solid Length 8.13 mm
Suggested Max Deflection 43.18 mm
Suggested Max Load 0.58 N
Total Coils 32
Wire Diameter 0.25 mm
The compression spring EE-14CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the EE-14 compression spring design exhibits exceptional tensile strength and resilience.

The EE-14 design is manufactured with a free length of 2", with an outer diameter of 0.188", an inner diameter of 0.168", and a total of 32 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.08 lbs/in.

The EE-14CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring EE-14 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
