Century Spring

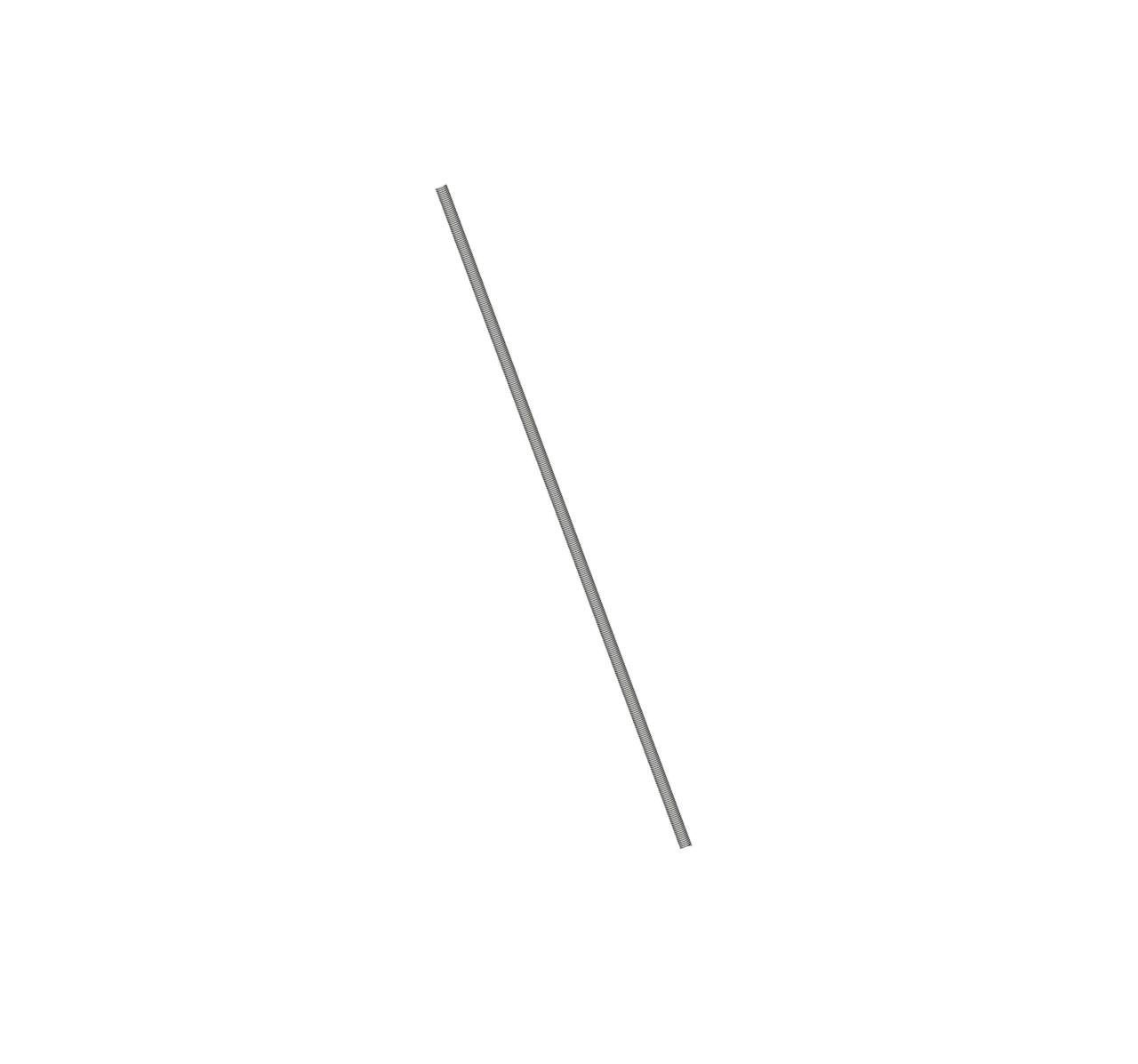

E-34-ACS - 36 Inch 1.691 Inch Pounds Carbon Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Carbon Steel. This spring features an O.D. of 0.625 Inch, an initial tension of 10 Pound, and a spring rate of 1.691 Inch Pounds.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name E-34-A
Finish None
Initial Tension
(Approx.) 		10 lb
Length 36 in
Material Carbon Steel
Max Load
(Suggested) 		35 lbf
Measurement Units Standard
Outside Diameter 0.625 in
Rate (Constant) 1.691 lbs
SKU E-34-ACS
Wire Diameter 0.092 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name E-34-A
Finish None
Initial Tension
(Approx.) 		4.54 kg
Length 914.4 mm
Material Carbon Steel
Max Load
(Suggested) 		155.68 N
Measurement Units Standard
Outside Diameter 15.88 mm
Rate (Constant) 0.3 N/mm
SKU E-34-ACS
Wire Diameter 2.34 mm
