DD-95CS - 1.81" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

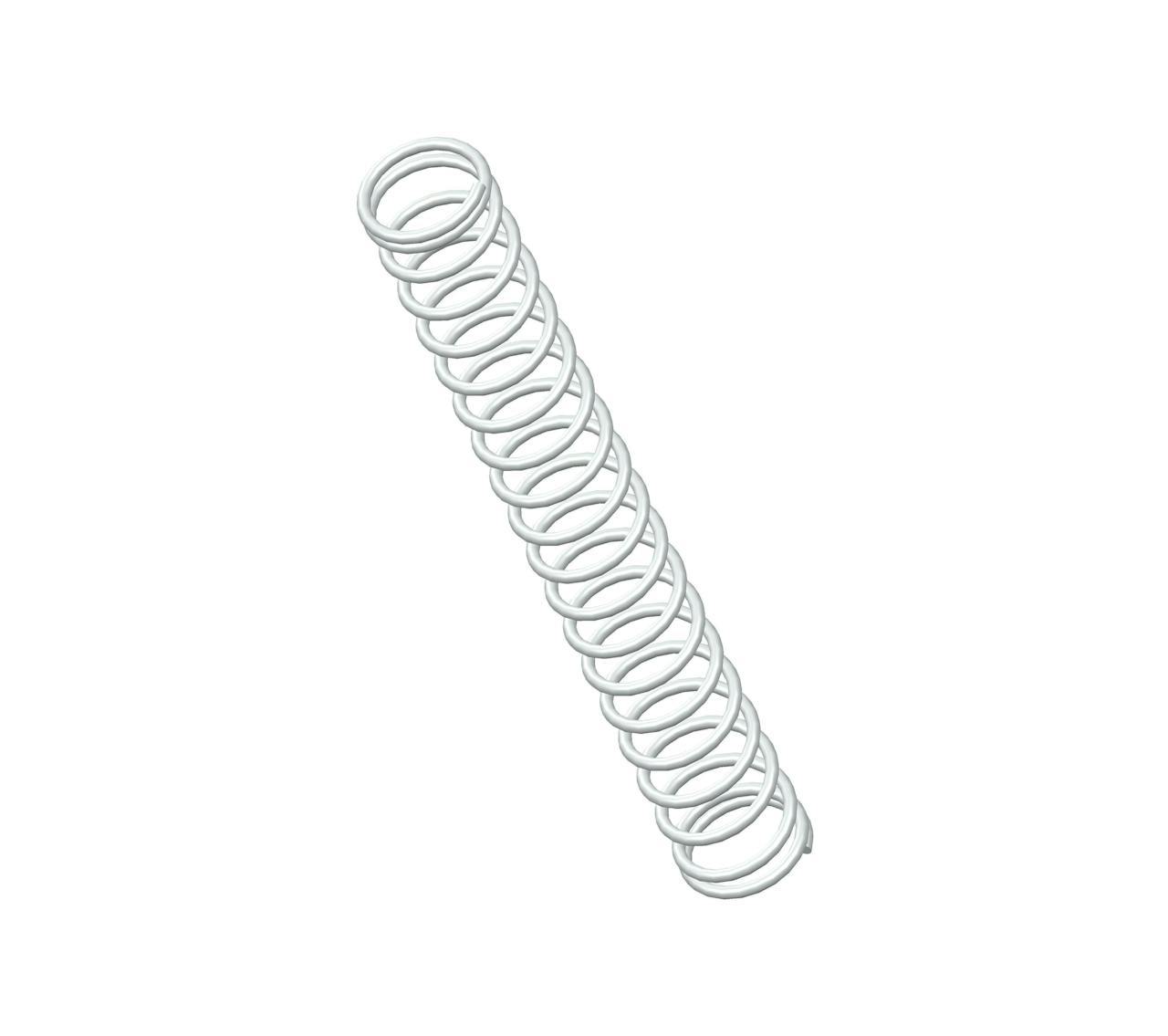

Compression spring manufactured from 302/304 stainless steel with 20 coils and closed ends. This spring features an O.D. of 0.234", and an I.D. of 0.188".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | DD-95 |
| Ends | Closed |
| Finish | None |
| Free Length | 1.81 in |
| Inside Diameter | 0.188 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.234 in |
| Part Type | Standard |
| Rate | 2.1 lbs/in |
| SKU | DD-95CS |
| Solid Length | 0.48 in |
| Suggested Max Deflection | 0.99 in |
| Suggested Max Load | 2.1 lbf |
| Total Coils | 20 |
| Wire Diameter | 0.023 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | DD-95 |
| Ends | Closed |
| Finish | None |
| Free Length | 45.97 mm |
| Inside Diameter | 4.78 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 5.94 mm |
| Part Type | Standard |
| Rate | 0.37 N/mm |
| SKU | DD-95CS |
| Solid Length | 12.19 mm |
| Suggested Max Deflection | 25.15 mm |
| Suggested Max Load | 9.34 N |
| Total Coils | 20 |
| Wire Diameter | 0.58 mm |
The compression spring DD-95CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the DD-95 compression spring design exhibits exceptional tensile strength and resilience.
The DD-95 design is manufactured with a free length of 1.81", with an outer diameter of 0.234", an inner diameter of 0.188", and a total of 20 coils, expertly designed to deliver consistent compression characteristics including a rate of 2.1 lbs/in.
The DD-95CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring DD-95 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The DD-95 design is manufactured with a free length of 1.81", with an outer diameter of 0.234", an inner diameter of 0.188", and a total of 20 coils, expertly designed to deliver consistent compression characteristics including a rate of 2.1 lbs/in.
The DD-95CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring DD-95 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
