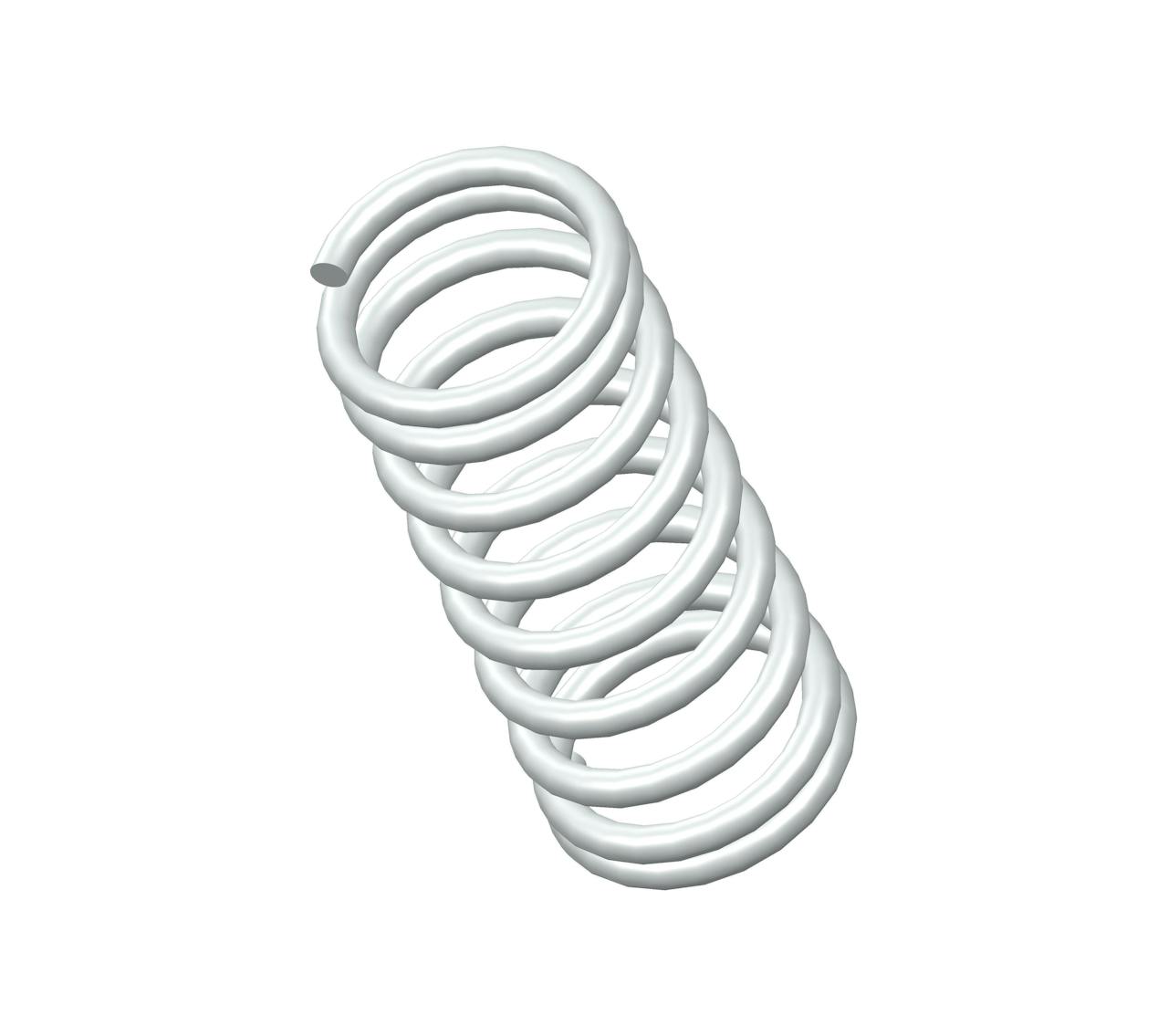

DD-91CS - 0.69" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 9 coils and closed ends. This spring features an O.D. of 0.281", and an I.D. of 0.215".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | DD-91 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.69 in |
| Inside Diameter | 0.215 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.281 in |
| Part Type | Standard |
| Rate | 14 lbs/in |
| SKU | DD-91CS |
| Solid Length | 0.33 in |
| Suggested Max Deflection | 0.34 in |
| Suggested Max Load | 4.7 lbf |
| Total Coils | 9 |
| Wire Diameter | 0.033 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | DD-91 |
| Ends | Closed |
| Finish | None |
| Free Length | 17.53 mm |
| Inside Diameter | 5.46 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 7.14 mm |
| Part Type | Standard |
| Rate | 2.45 N/mm |
| SKU | DD-91CS |
| Solid Length | 8.38 mm |
| Suggested Max Deflection | 8.64 mm |
| Suggested Max Load | 20.91 N |
| Total Coils | 9 |
| Wire Diameter | 0.84 mm |
The compression spring DD-91CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the DD-91 compression spring design exhibits exceptional tensile strength and resilience.
The DD-91 design is manufactured with a free length of 0.69", with an outer diameter of 0.281", an inner diameter of 0.215", and a total of 9 coils, expertly designed to deliver consistent compression characteristics including a rate of 14 lbs/in.
The DD-91CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring DD-91 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The DD-91 design is manufactured with a free length of 0.69", with an outer diameter of 0.281", an inner diameter of 0.215", and a total of 9 coils, expertly designed to deliver consistent compression characteristics including a rate of 14 lbs/in.
The DD-91CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring DD-91 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
