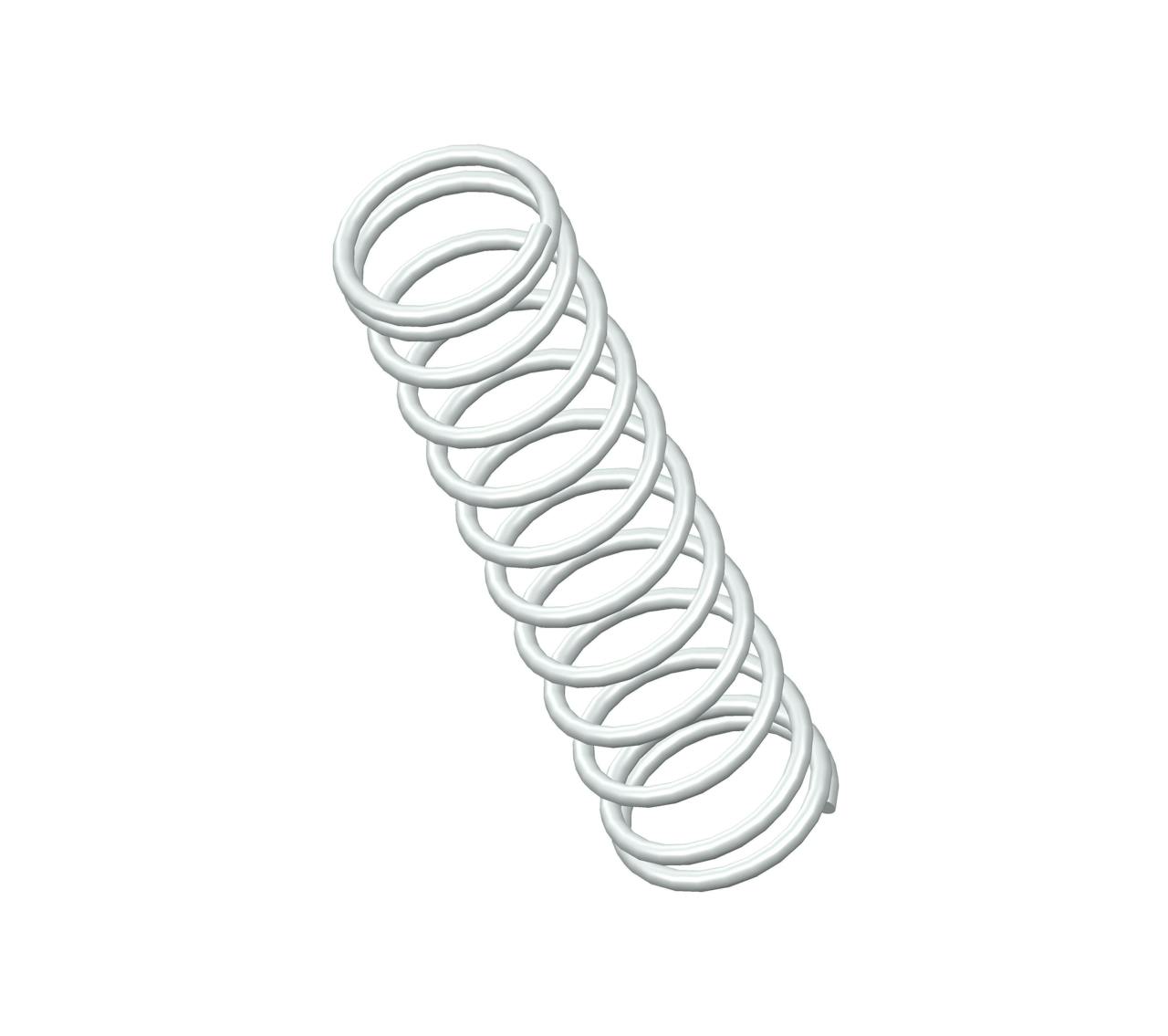

DD-38CS - 0.88" 302/304 Stainless Steel Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 12 coils and closed ends. This spring features an O.D. of 0.219", and an I.D. of 0.179".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name DD-38
Ends Closed
Finish None
Free Length 0.88 in
Inside Diameter 0.179 in
Material 302/304 Stainless Steel
Outside Diameter 0.219 in
Part Type Standard
Rate 2.6 lbs/in
SKU DD-38CS
Solid Length 0.26 in
Suggested Max Deflection 0.56 in
Suggested Max Load 1.4 lbf
Total Coils 12
Wire Diameter 0.02 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name DD-38
Ends Closed
Finish None
Free Length 22.35 mm
Inside Diameter 4.55 mm
Material 302/304 Stainless Steel
Outside Diameter 5.56 mm
Part Type Standard
Rate 0.46 N/mm
SKU DD-38CS
Solid Length 6.6 mm
Suggested Max Deflection 14.22 mm
Suggested Max Load 6.23 N
Total Coils 12
Wire Diameter 0.51 mm
The compression spring DD-38CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the DD-38 compression spring design exhibits exceptional tensile strength and resilience.

The DD-38 design is manufactured with a free length of 0.88", with an outer diameter of 0.219", an inner diameter of 0.179", and a total of 12 coils, expertly designed to deliver consistent compression characteristics including a rate of 2.6 lbs/in.

The DD-38CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring DD-38 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
