DD-12CS - 0.31" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

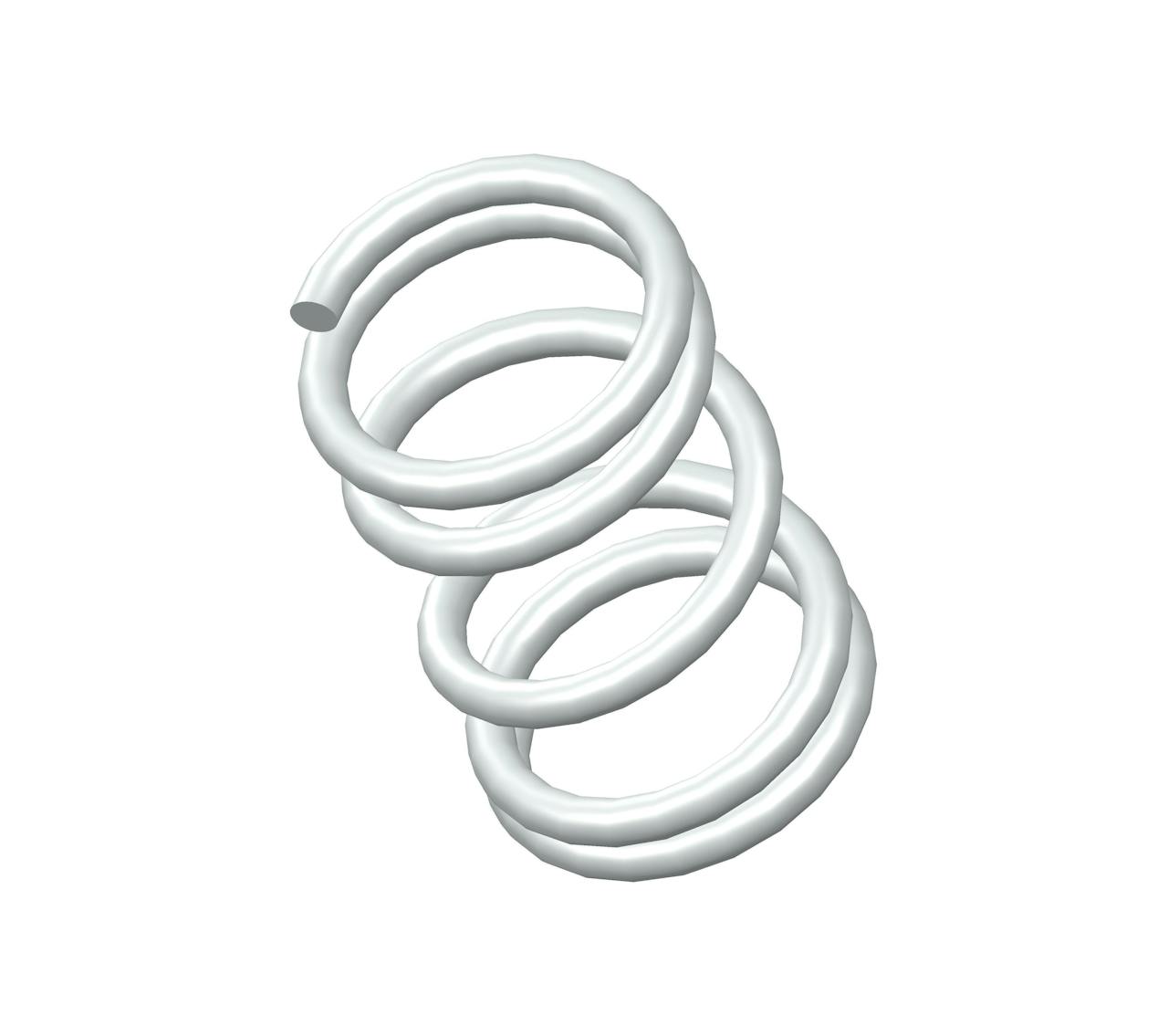

Compression spring manufactured from 302/304 stainless steel with 5 coils and closed ends. This spring features an O.D. of 0.188", and an I.D. of 0.144".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | DD-12 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.31 in |
| Inside Diameter | 0.144 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.188 in |
| Part Type | Standard |
| Rate | 22 lbs/in |
| SKU | DD-12CS |
| Solid Length | 0.13 in |
| Suggested Max Deflection | 0.1 in |
| Suggested Max Load | 2.2 lbf |
| Total Coils | 5 |
| Wire Diameter | 0.022 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | DD-12 |
| Ends | Closed |
| Finish | None |
| Free Length | 7.87 mm |
| Inside Diameter | 3.66 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 4.78 mm |
| Part Type | Standard |
| Rate | 3.85 N/mm |
| SKU | DD-12CS |
| Solid Length | 3.3 mm |
| Suggested Max Deflection | 2.54 mm |
| Suggested Max Load | 9.79 N |
| Total Coils | 5 |
| Wire Diameter | 0.56 mm |
The compression spring DD-12CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the DD-12 compression spring design exhibits exceptional tensile strength and resilience.
The DD-12 design is manufactured with a free length of 0.31", with an outer diameter of 0.188", an inner diameter of 0.144", and a total of 5 coils, expertly designed to deliver consistent compression characteristics including a rate of 22 lbs/in.
The DD-12CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring DD-12 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
