Century Spring

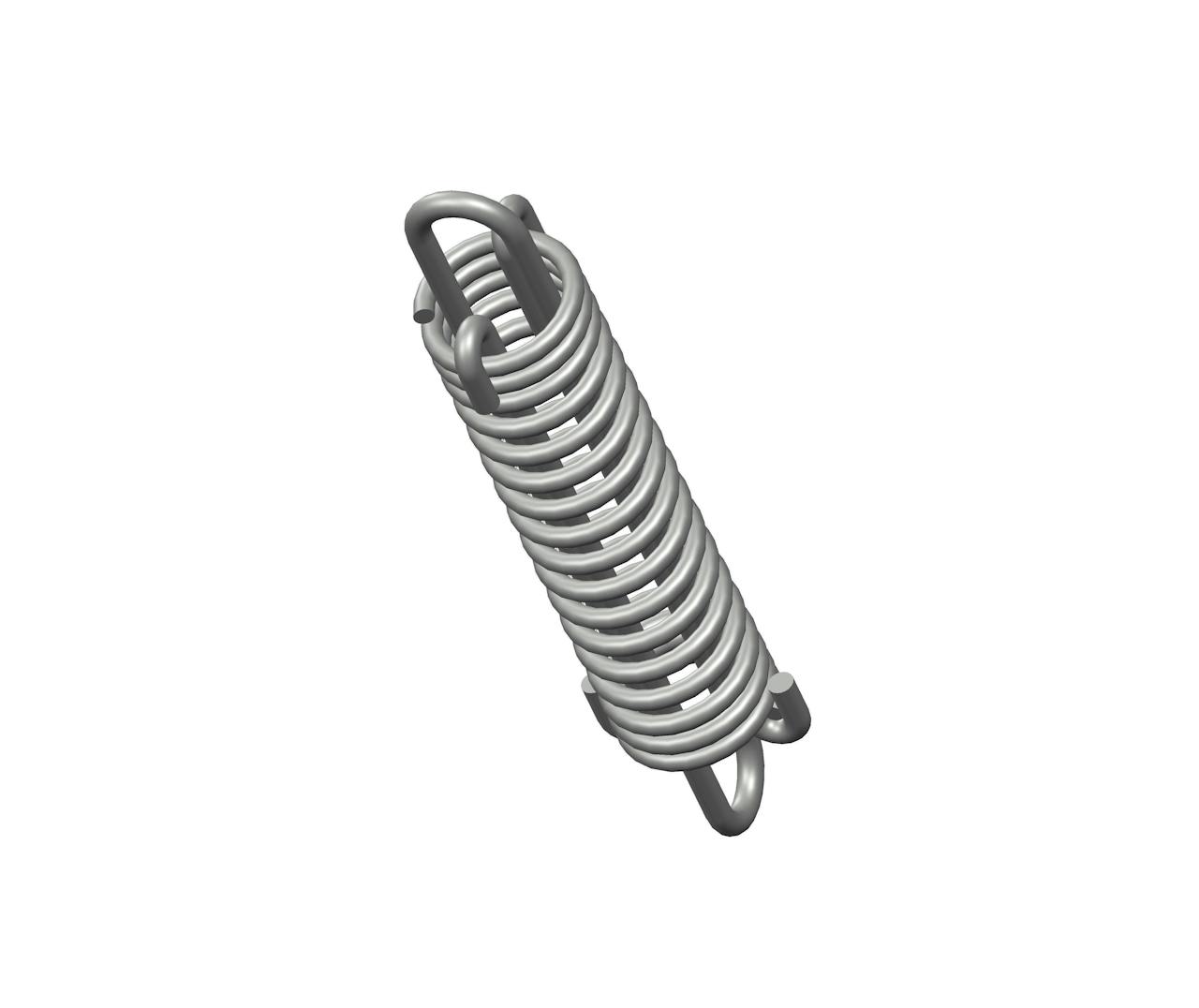

DB7011CS - 400 Pound Force Max Load Spring Steel Drawbar Spring

Inventory Status
Estimated Lead Time

Drawbar spring manufactured from Spring Steel and designed for use with a maximum load of 400 Pound Force.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name DB7011
Drawbar Wire Diameter 0.218 in
Finish Zinc
Free Length 9.625 in
Inside Diameter 1.184 in
Material Spring Steel
Max Load 400 lbf
Maximum Deflection 2 in
Measurement Units Standard
Outside Diameter 1.75 in
Rate 200 lbs/in
SKU DB7011CS
Total Coils 16.6
Wire Diameter 0.283 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name DB7011
Drawbar Wire Diameter 5.54 mm
Finish Zinc
Free Length 244.48 mm
Inside Diameter 30.07 mm
Material Spring Steel
Max Load 1779.2 N
Maximum Deflection 50.8 mm
Measurement Units Standard
Outside Diameter 44.45 mm
Rate 35.02 N-mm
SKU DB7011CS
Total Coils 16.6
Wire Diameter 7.19 mm
