Century Spring

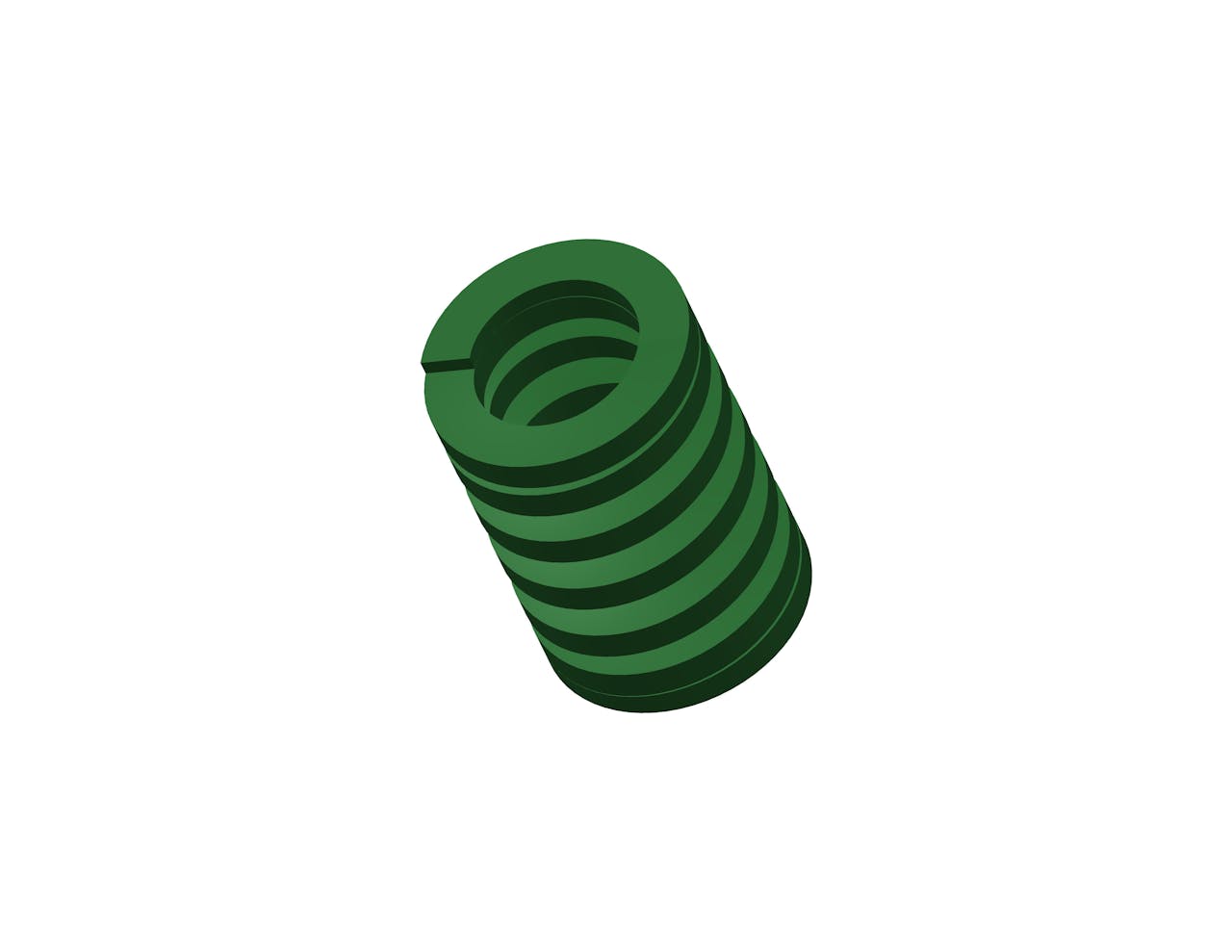

D-9401411CS - 3.5 Inch Chrome Silicon Die Spring

Inventory Status
Estimated Lead Time

3.5 Inch Chrome Silicon die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 788 lb
Brand Century Spring
Deflection For Average Life 0.88 in
Deflection For Long Life 1.05 in
Display Name D-9401411
Duty Load Light
Finish None
Finish Color Green
Free Length 3.5 in
Hole Size 2.5 in
Long Life Deflection Force 945 lb
Material Chrome Silicon
Maximum Deflection 1.4 in
Maximum Deflection Force 1260 lb
Measurement Units Standard
Rate 899 lbs/in
Rod Size 1.5 in
SKU D-9401411CS
Wire Diameter 0.45 in x 0.296 in
Specs (in metric)
Label Value
Average Life Deflection Force 357.37 kg
Brand Century Spring
Deflection For Average Life 22.35 mm
Deflection For Long Life 26.67 mm
Display Name D-9401411
Duty Load Light
Finish None
Finish Color Green
Free Length 88.9 mm
Hole Size 63.5 mm
Long Life Deflection Force 428.57 kg
Material Chrome Silicon
Maximum Deflection 35.56 mm
Maximum Deflection Force 571.43 kg
Measurement Units Standard
Rate 157.41 N/mm
Rod Size 38.1 mm
SKU D-9401411CS
Wire Diameter 11.43 mm x 7.52 mm
