Century Spring

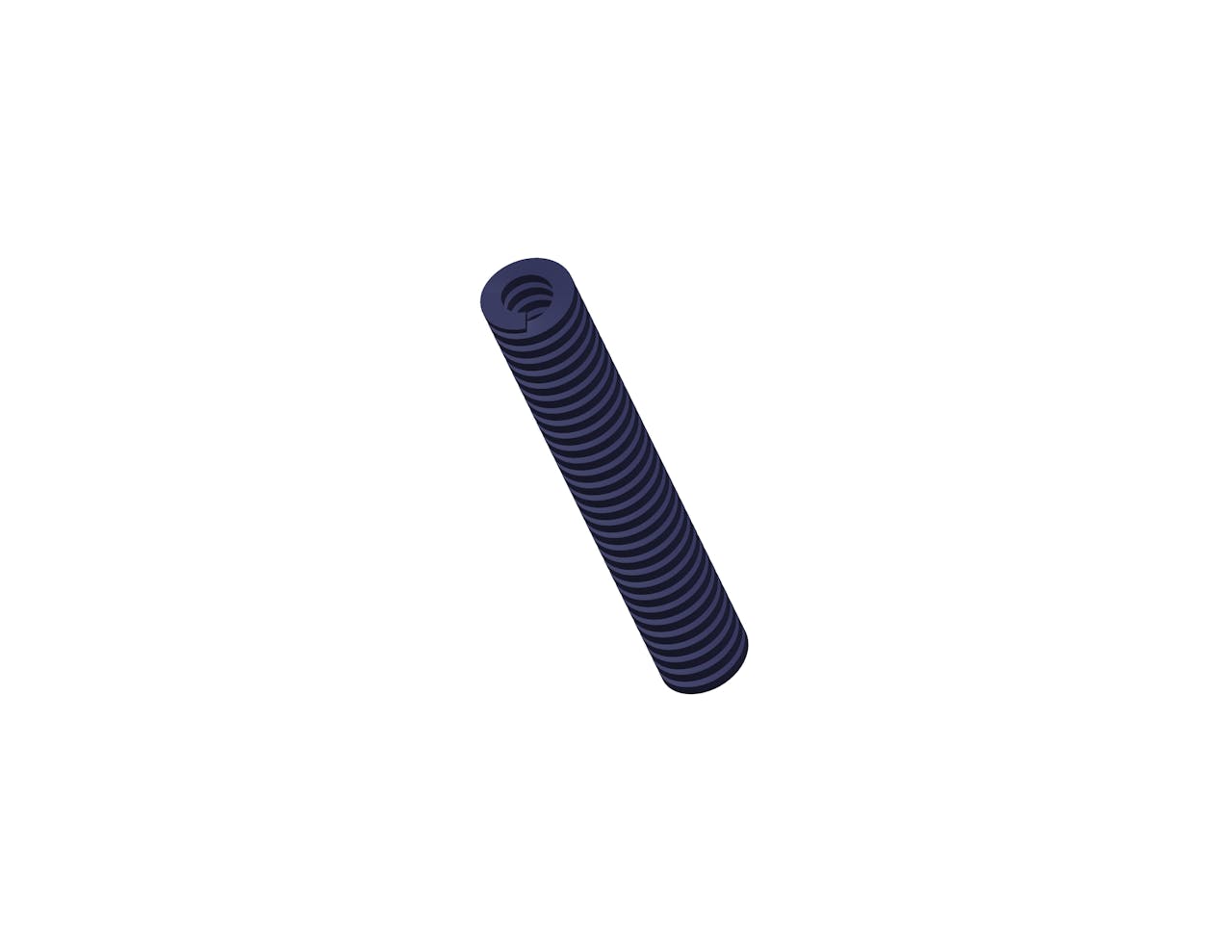

D-9324821CS - 12 Inch Chrome Silicon Die Spring

Inventory Status
Estimated Lead Time

12 Inch Chrome Silicon die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 645 lb
Brand Century Spring
Deflection For Average Life 3 in
Deflection For Long Life 3.6 in
Display Name D-9324821
Duty Load Medium
Finish None
Finish Color Blue
Free Length 12 in
Hole Size 2 in
Long Life Deflection Force 775 lb
Material Chrome Silicon
Maximum Deflection 4.5 in
Maximum Deflection Force 968 lb
Measurement Units Standard
Rate 215 lbs/in
Rod Size 1 in
SKU D-9324821CS
Wire Diameter 0.445 in x 0.235 in
Specs (in metric)
Label Value
Average Life Deflection Force 292.52 kg
Brand Century Spring
Deflection For Average Life 76.2 mm
Deflection For Long Life 91.44 mm
Display Name D-9324821
Duty Load Medium
Finish None
Finish Color Blue
Free Length 304.8 mm
Hole Size 50.8 mm
Long Life Deflection Force 351.47 kg
Material Chrome Silicon
Maximum Deflection 114.3 mm
Maximum Deflection Force 439 kg
Measurement Units Standard
Rate 37.65 N/mm
Rod Size 25.4 mm
SKU D-9324821CS
Wire Diameter 11.3 mm x 5.97 mm
