Century Spring

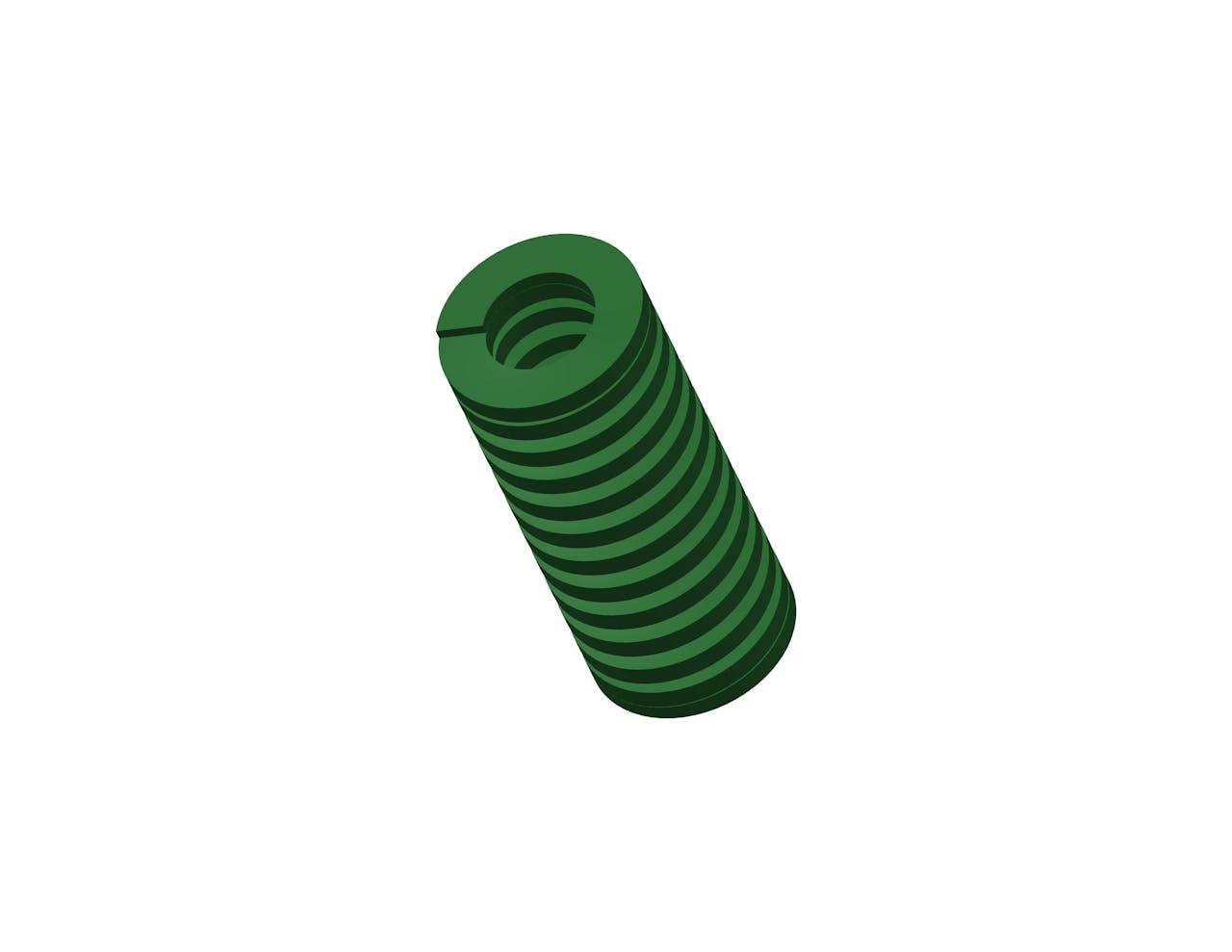

D-9321811CS - 4.5 Inch Chrome Silicon Die Spring

Inventory Status
Estimated Lead Time

4.5 Inch Chrome Silicon die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 504 lb
Brand Century Spring
Deflection For Average Life 1.12 in
Deflection For Long Life 1.35 in
Display Name D-9321811
Duty Load Light
Finish None
Finish Color Green
Free Length 4.5 in
Hole Size 2 in
Long Life Deflection Force 605 lb
Material Chrome Silicon
Maximum Deflection 1.8 in
Maximum Deflection Force 806 lb
Measurement Units Standard
Rate 449 lbs/in
Rod Size 1 in
SKU D-9321811CS
Wire Diameter 0.442 in x 0.206 in
Specs (in metric)
Label Value
Average Life Deflection Force 228.57 kg
Brand Century Spring
Deflection For Average Life 28.45 mm
Deflection For Long Life 34.29 mm
Display Name D-9321811
Duty Load Light
Finish None
Finish Color Green
Free Length 114.3 mm
Hole Size 50.8 mm
Long Life Deflection Force 274.38 kg
Material Chrome Silicon
Maximum Deflection 45.72 mm
Maximum Deflection Force 365.53 kg
Measurement Units Standard
Rate 78.62 N/mm
Rod Size 25.4 mm
SKU D-9321811CS
Wire Diameter 11.23 mm x 5.23 mm
