Century Spring

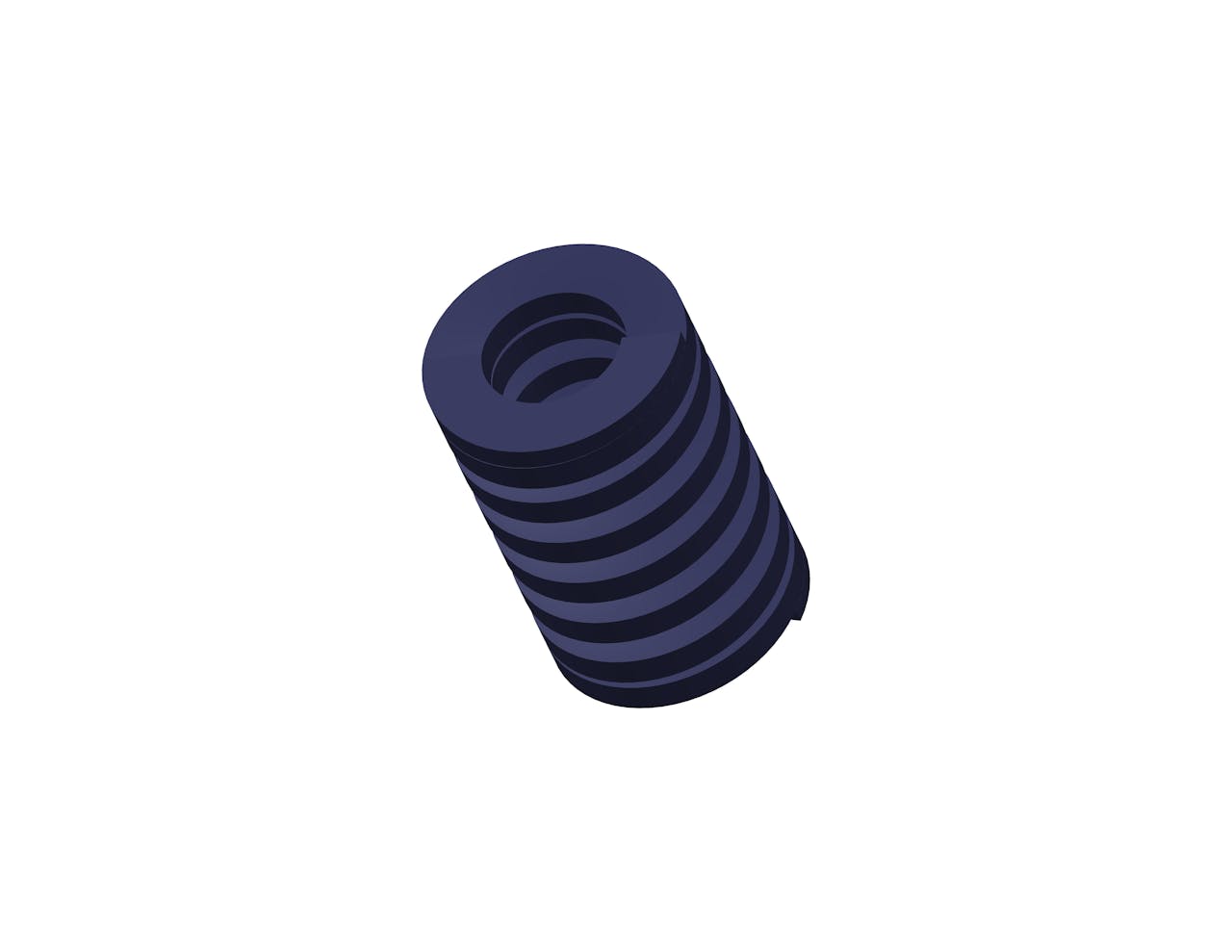

D-9321221CS - 3 Inch Chrome Silicon Die Spring

Inventory Status
Estimated Lead Time

3 Inch Chrome Silicon die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 715 lb
Brand Century Spring
Deflection For Average Life 0.75 in
Deflection For Long Life 0.9 in
Display Name D-9321221
Duty Load Medium
Finish None
Finish Color Blue
Free Length 3 in
Hole Size 2 in
Long Life Deflection Force 858 lb
Material Chrome Silicon
Maximum Deflection 1.12 in
Maximum Deflection Force 1073 lb
Measurement Units Standard
Rate 956 lbs/in
Rod Size 1 in
SKU D-9321221CS
Wire Diameter 0.445 in x 0.235 in
Specs (in metric)
Label Value
Average Life Deflection Force 324.26 kg
Brand Century Spring
Deflection For Average Life 19.05 mm
Deflection For Long Life 22.86 mm
Display Name D-9321221
Duty Load Medium
Finish None
Finish Color Blue
Free Length 76.2 mm
Hole Size 50.8 mm
Long Life Deflection Force 389.12 kg
Material Chrome Silicon
Maximum Deflection 28.45 mm
Maximum Deflection Force 486.62 kg
Measurement Units Standard
Rate 167.4 N/mm
Rod Size 25.4 mm
SKU D-9321221CS
Wire Diameter 11.3 mm x 5.97 mm
