Century Spring

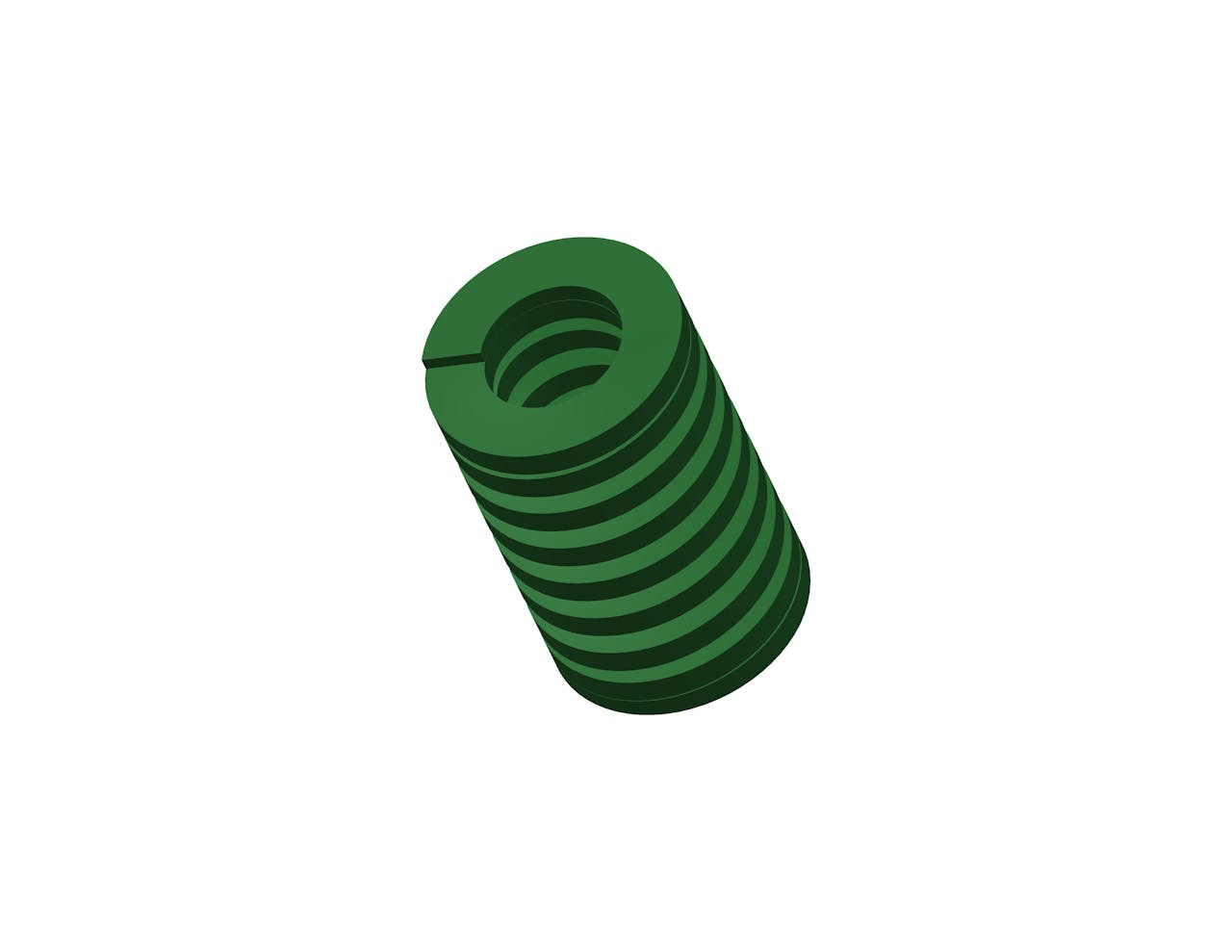

D-9321211CS - 3 Inch Chrome Silicon Die Spring

Inventory Status
Estimated Lead Time

3 Inch Chrome Silicon die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 539 lb
Brand Century Spring
Deflection For Average Life 0.75 in
Deflection For Long Life 0.9 in
Display Name D-9321211
Duty Load Light
Finish None
Finish Color Green
Free Length 3 in
Hole Size 2 in
Long Life Deflection Force 646 lb
Material Chrome Silicon
Maximum Deflection 1.2 in
Maximum Deflection Force 862 lb
Measurement Units Standard
Rate 720 lbs/in
Rod Size 1 in
SKU D-9321211CS
Wire Diameter 0.442 in x 0.206 in
Specs (in metric)
Label Value
Average Life Deflection Force 244.44 kg
Brand Century Spring
Deflection For Average Life 19.05 mm
Deflection For Long Life 22.86 mm
Display Name D-9321211
Duty Load Light
Finish None
Finish Color Green
Free Length 76.2 mm
Hole Size 50.8 mm
Long Life Deflection Force 292.97 kg
Material Chrome Silicon
Maximum Deflection 30.48 mm
Maximum Deflection Force 390.93 kg
Measurement Units Standard
Rate 126.07 N/mm
Rod Size 25.4 mm
SKU D-9321211CS
Wire Diameter 11.23 mm x 5.23 mm
