Century Spring

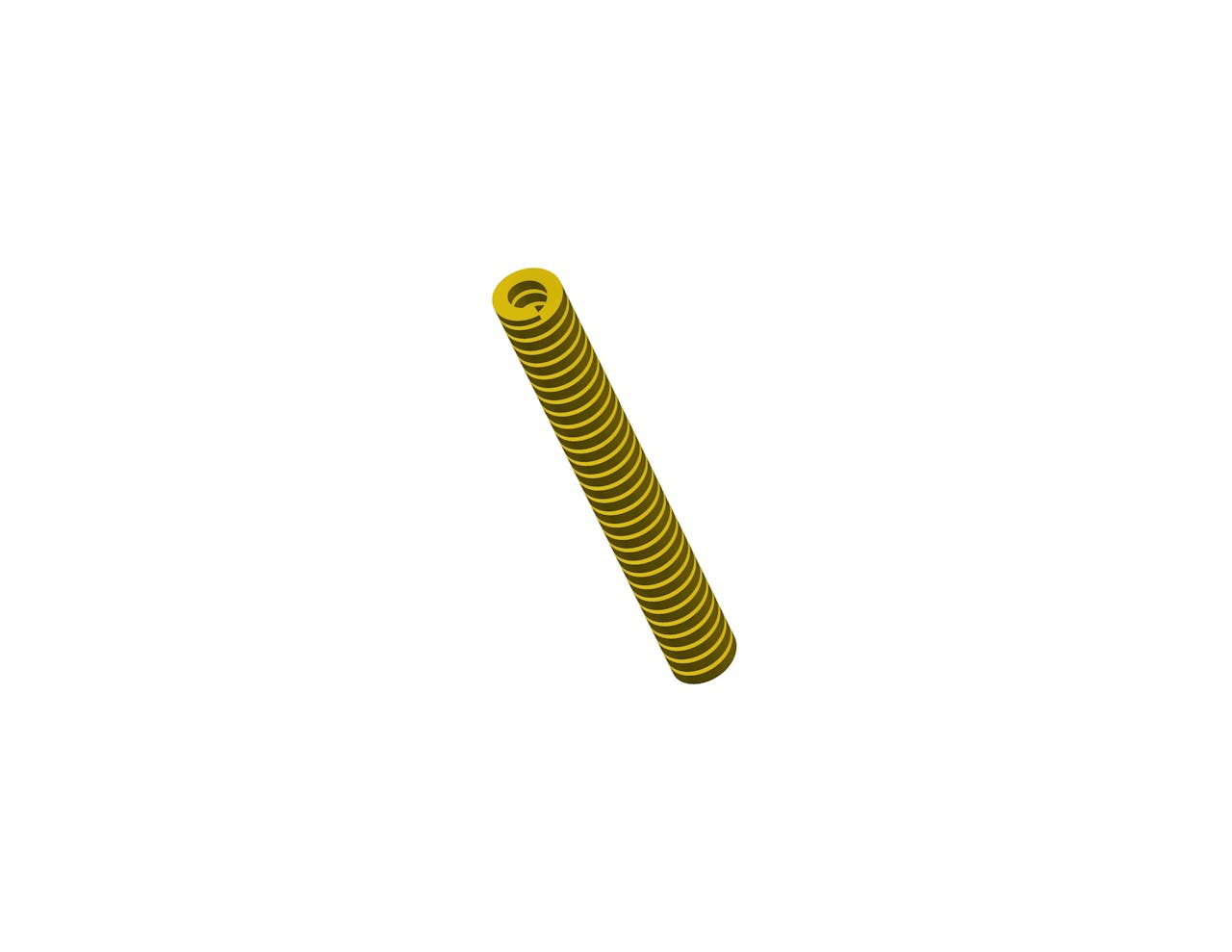

D-9244836CS - 12 Inch Chrome Silicon Die Spring

Inventory Status
Estimated Lead Time

12 Inch Chrome Silicon die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 874 lb
Brand Century Spring
Deflection For Average Life 2.04 in
Deflection For Long Life 2.4 in
Display Name D-9244836
Duty Load Extra Heavy
Finish None
Finish Color Yellow
Free Length 12 in
Hole Size 1.5 in
Long Life Deflection Force 1028 lb
Material Chrome Silicon
Maximum Deflection 3 in
Maximum Deflection Force 1285 lb
Measurement Units Standard
Rate 428 lbs/in
Rod Size 0.75 in
SKU D-9244836CS
Wire Diameter 0.332 in x 0.287 in
Specs (in metric)
Label Value
Average Life Deflection Force 396.37 kg
Brand Century Spring
Deflection For Average Life 51.82 mm
Deflection For Long Life 60.96 mm
Display Name D-9244836
Duty Load Extra Heavy
Finish None
Finish Color Yellow
Free Length 304.8 mm
Hole Size 38.1 mm
Long Life Deflection Force 466.21 kg
Material Chrome Silicon
Maximum Deflection 76.2 mm
Maximum Deflection Force 582.77 kg
Measurement Units Standard
Rate 74.94 N/mm
Rod Size 19.05 mm
SKU D-9244836CS
Wire Diameter 8.43 mm x 7.29 mm
