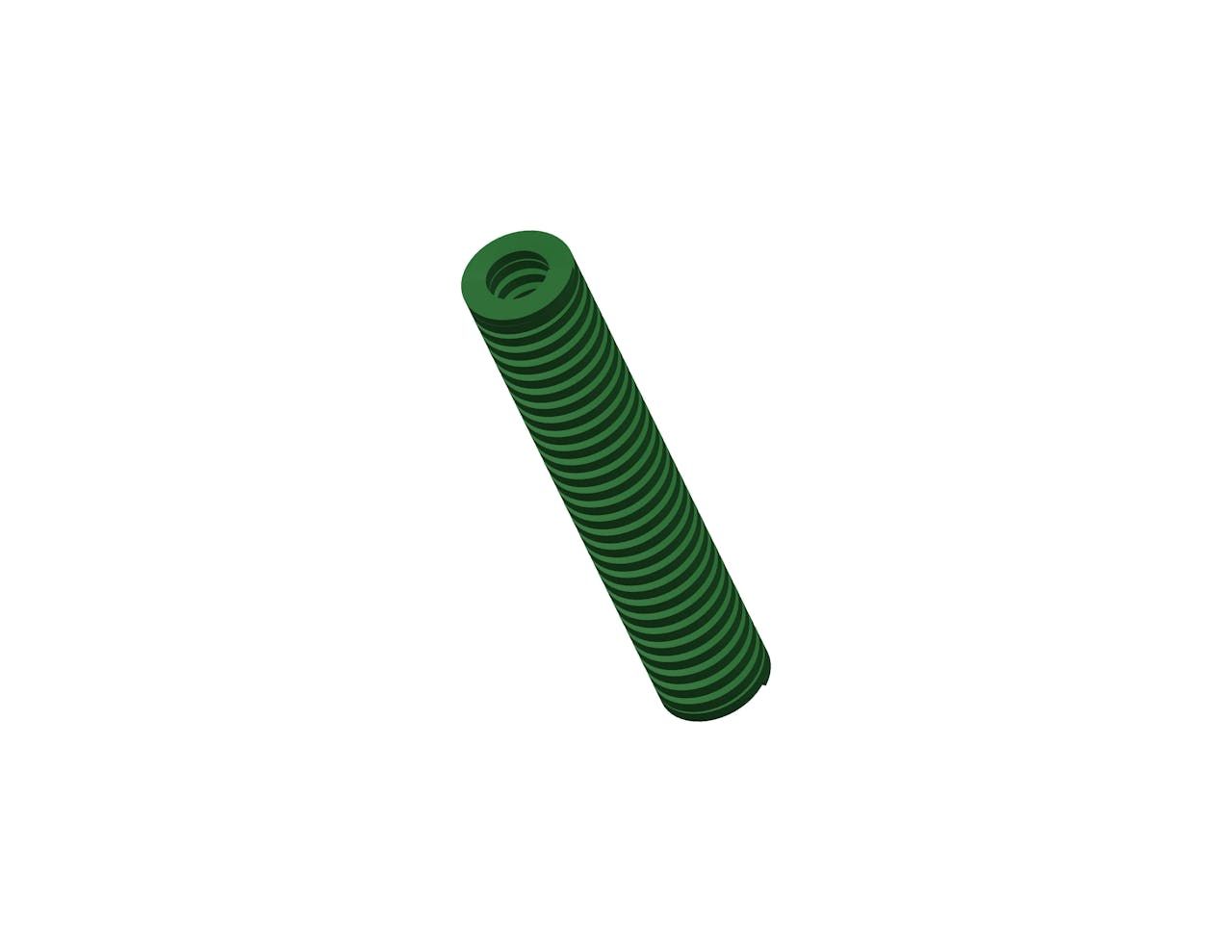

D-9243211CS - 8 Inch Chrome Silicon Die Spring

Inventory:
Estimated Lead Time

8 Inch Chrome Silicon die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 258 lb
Brand Century Spring
Deflection For Average Life 2 in
Deflection For Long Life 2.4 in
Display Name D-9243211
Duty Load Light
Finish None
Finish Color Green
Free Length 8 in
Hole Size 1.5 in
Long Life Deflection Force 309 lb
Material Chrome Silicon
Maximum Deflection 3.2 in
Maximum Deflection Force 412 lb
Measurement Units Standard
Rate 129 lbs/in
Rod Size 0.75 in
SKU D-9243211CS
Wire Diameter 0.32 in x 0.16 in
Specs (in metric)
Label Value
Average Life Deflection Force 117.01 kg
Brand Century Spring
Deflection For Average Life 50.8 mm
Deflection For Long Life 60.96 mm
Display Name D-9243211
Duty Load Light
Finish None
Finish Color Green
Free Length 203.2 mm
Hole Size 38.1 mm
Long Life Deflection Force 140.14 kg
Material Chrome Silicon
Maximum Deflection 81.28 mm
Maximum Deflection Force 186.85 kg
Measurement Units Standard
Rate 22.59 N/mm
Rod Size 19.05 mm
SKU D-9243211CS
Wire Diameter 8.13 mm x 4.06 mm
