Century Spring

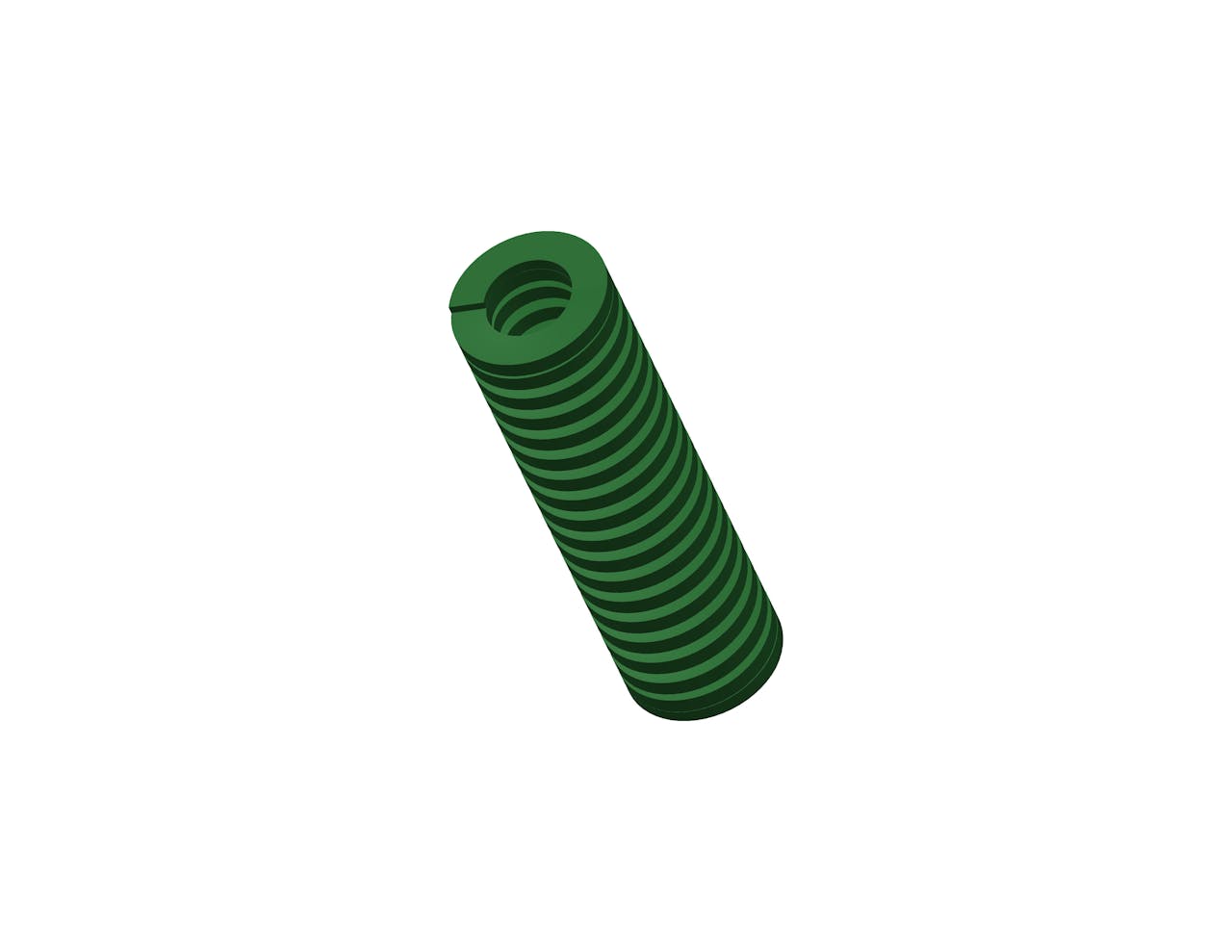

D-9242011CS - 5 Inch Chrome Silicon Die Spring

Inventory Status
Estimated Lead Time

5 Inch Chrome Silicon die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 270 lb
Brand Century Spring
Deflection For Average Life 1.25 in
Deflection For Long Life 1.5 in
Display Name D-9242011
Duty Load Light
Finish None
Finish Color Green
Free Length 5 in
Hole Size 1.5 in
Long Life Deflection Force 324 lb
Material Chrome Silicon
Maximum Deflection 2 in
Maximum Deflection Force 432 lb
Measurement Units Standard
Rate 216 lbs/in
Rod Size 0.75 in
SKU D-9242011CS
Wire Diameter 0.32 in x 0.16 in
Specs (in metric)
Label Value
Average Life Deflection Force 122.45 kg
Brand Century Spring
Deflection For Average Life 31.75 mm
Deflection For Long Life 38.1 mm
Display Name D-9242011
Duty Load Light
Finish None
Finish Color Green
Free Length 127 mm
Hole Size 38.1 mm
Long Life Deflection Force 146.94 kg
Material Chrome Silicon
Maximum Deflection 50.8 mm
Maximum Deflection Force 195.92 kg
Measurement Units Standard
Rate 37.82 N/mm
Rod Size 19.05 mm
SKU D-9242011CS
Wire Diameter 8.13 mm x 4.06 mm
