Century Spring

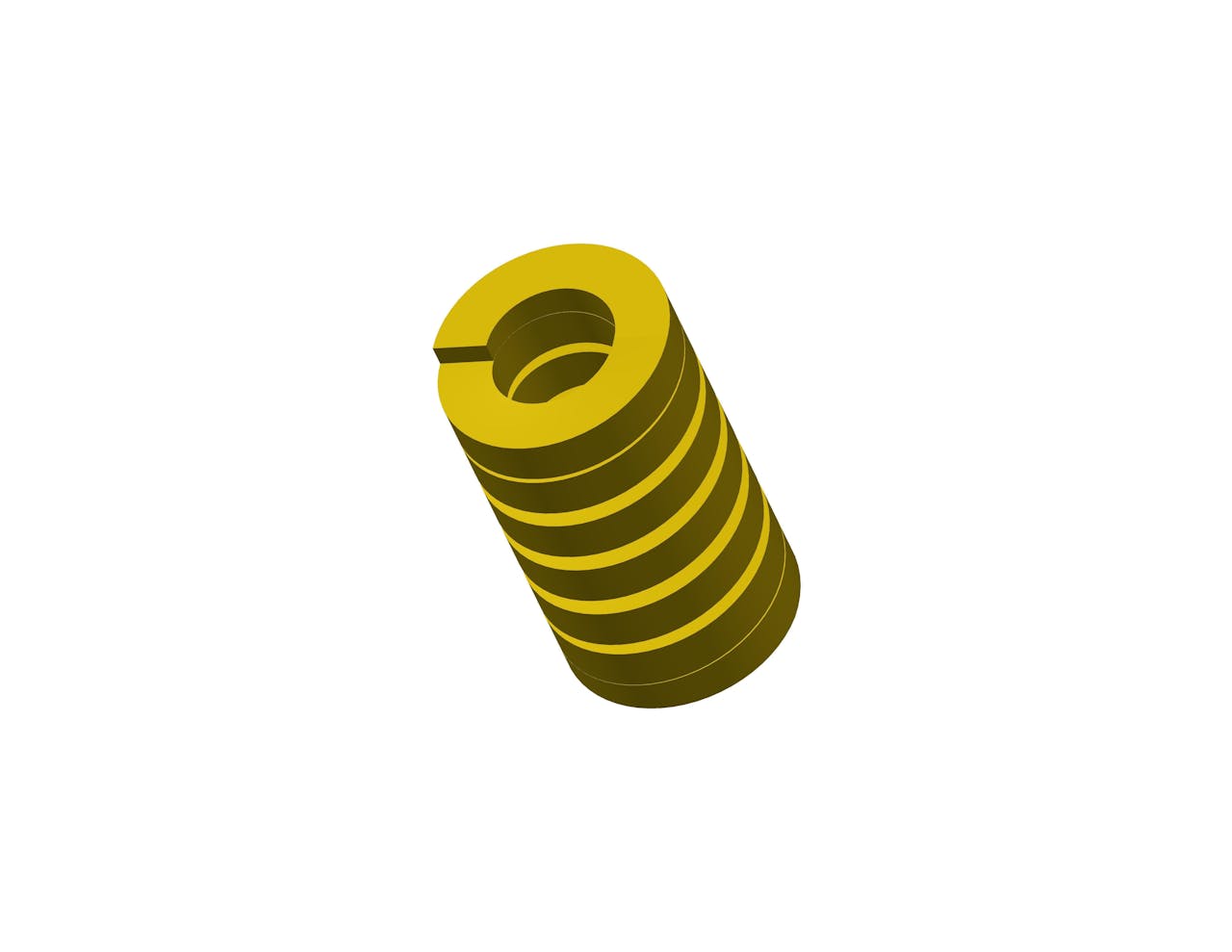

D-9241036CS - 2.5 Inch Chrome Silicon Die Spring

Inventory Status
Estimated Lead Time

2.5 Inch Chrome Silicon die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 1032 lb
Brand Century Spring
Deflection For Average Life 0.43 in
Deflection For Long Life 0.5 in
Display Name D-9241036
Duty Load Extra Heavy
Finish None
Finish Color Yellow
Free Length 2.5 in
Hole Size 1.5 in
Long Life Deflection Force 1214 lb
Material Chrome Silicon
Maximum Deflection 0.63 in
Maximum Deflection Force 1518 lb
Measurement Units Standard
Rate 2410 lbs/in
Rod Size 0.75 in
SKU D-9241036CS
Wire Diameter 0.332 in x 0.287 in
Specs (in metric)
Label Value
Average Life Deflection Force 468.03 kg
Brand Century Spring
Deflection For Average Life 10.92 mm
Deflection For Long Life 12.7 mm
Display Name D-9241036
Duty Load Extra Heavy
Finish None
Finish Color Yellow
Free Length 63.5 mm
Hole Size 38.1 mm
Long Life Deflection Force 550.57 kg
Material Chrome Silicon
Maximum Deflection 16 mm
Maximum Deflection Force 688.44 kg
Measurement Units Standard
Rate 421.99 N/mm
Rod Size 19.05 mm
SKU D-9241036CS
Wire Diameter 8.43 mm x 7.29 mm
