Century Spring

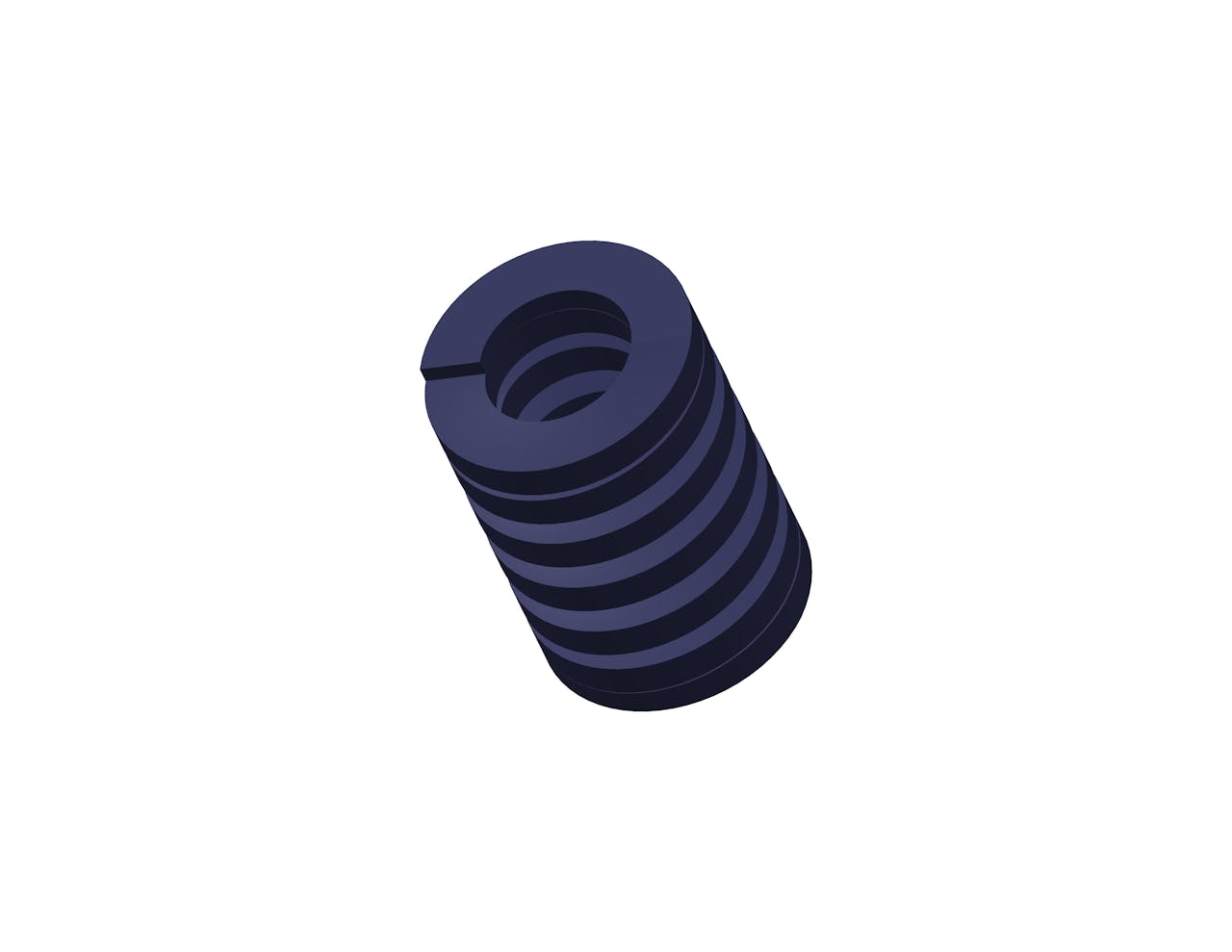

D-9240821CS - 2 Inch Chrome Silicon Die Spring

Inventory Status
Estimated Lead Time

2 Inch Chrome Silicon die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 489 lb
Brand Century Spring
Deflection For Average Life 0.5 in
Deflection For Long Life 0.6 in
Display Name D-9240821
Duty Load Medium
Finish None
Finish Color Blue
Free Length 2 in
Hole Size 1.5 in
Long Life Deflection Force 587 lb
Material Chrome Silicon
Maximum Deflection 0.75 in
Maximum Deflection Force 733 lb
Measurement Units Standard
Rate 974 lbs/in
Rod Size 0.75 in
SKU D-9240821CS
Wire Diameter 0.32 in x 0.193 in
Specs (in metric)
Label Value
Average Life Deflection Force 221.77 kg
Brand Century Spring
Deflection For Average Life 12.7 mm
Deflection For Long Life 15.24 mm
Display Name D-9240821
Duty Load Medium
Finish None
Finish Color Blue
Free Length 50.8 mm
Hole Size 38.1 mm
Long Life Deflection Force 266.21 kg
Material Chrome Silicon
Maximum Deflection 19.05 mm
Maximum Deflection Force 332.43 kg
Measurement Units Standard
Rate 170.55 N/mm
Rod Size 19.05 mm
SKU D-9240821CS
Wire Diameter 8.13 mm x 4.9 mm
