Century Spring

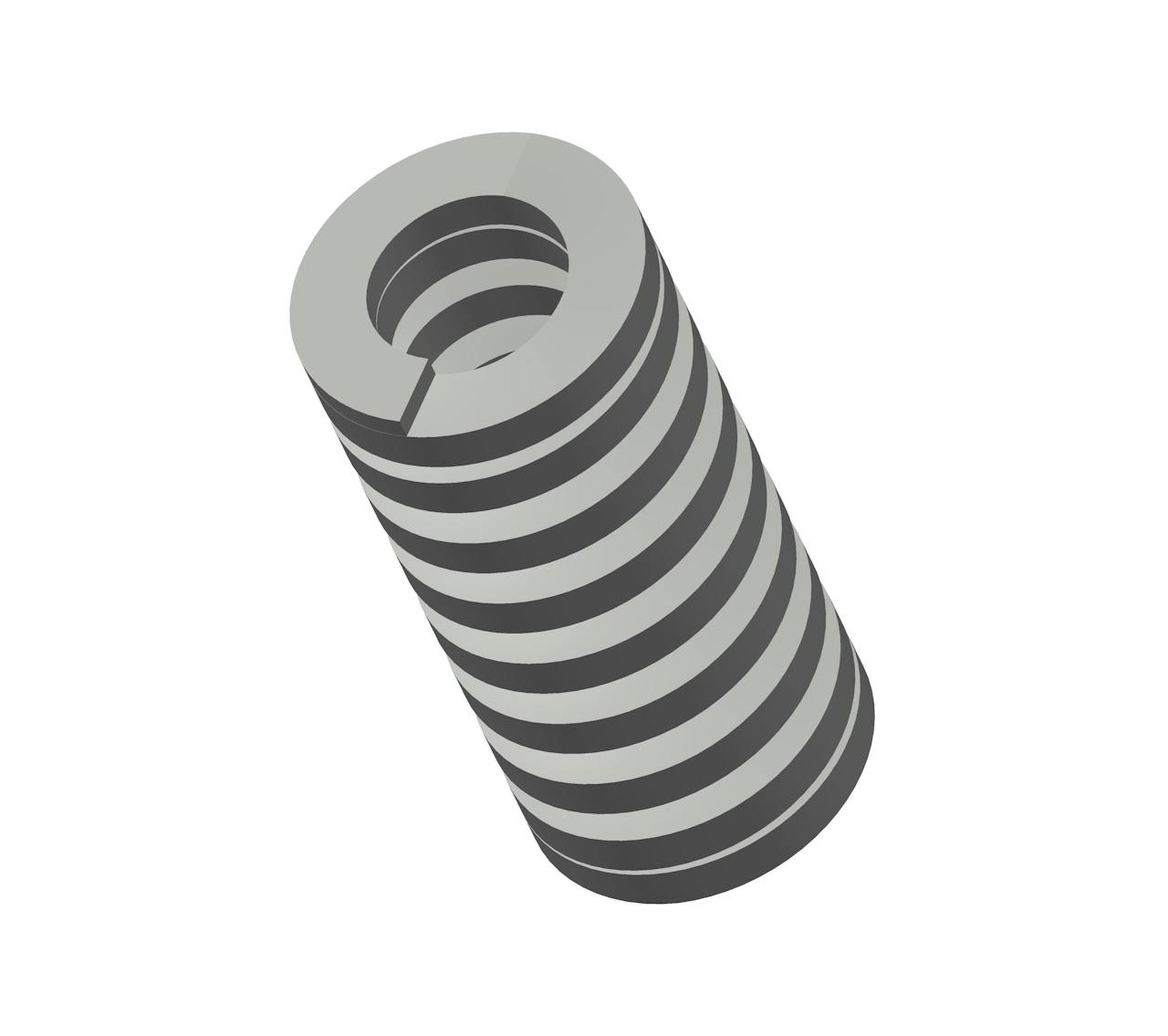

D-91CS - 3 Inch Oil Tempered Die Spring

Inventory Status
Estimated Lead Time

3 Inch Oil Tempered die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 552 lb
Brand Century Spring
Deflection For Average Life 0.75 in
Display Name D-91
Duty Load Medium
Finish None
Free Length 3 in
Hole Size 1.5 in
Material Oil Tempered
Maximum Deflection 1.2 in
Maximum Deflection Force 883 lb
Measurement Units Standard
Rate 736 lbs/in
Rod Size 0.75 in
SKU D-91CS
Wire Diameter 0.312 in x 0.188 in
Specs (in metric)
Label Value
Average Life Deflection Force 250.34 kg
Brand Century Spring
Deflection For Average Life 19.05 mm
Display Name D-91
Duty Load Medium
Finish None
Free Length 76.2 mm
Hole Size 38.1 mm
Material Oil Tempered
Maximum Deflection 30.48 mm
Maximum Deflection Force 400.45 kg
Measurement Units Standard
Rate 128.87 N/mm
Rod Size 19.05 mm
SKU D-91CS
Wire Diameter 7.92 mm x 4.78 mm
