Century Spring

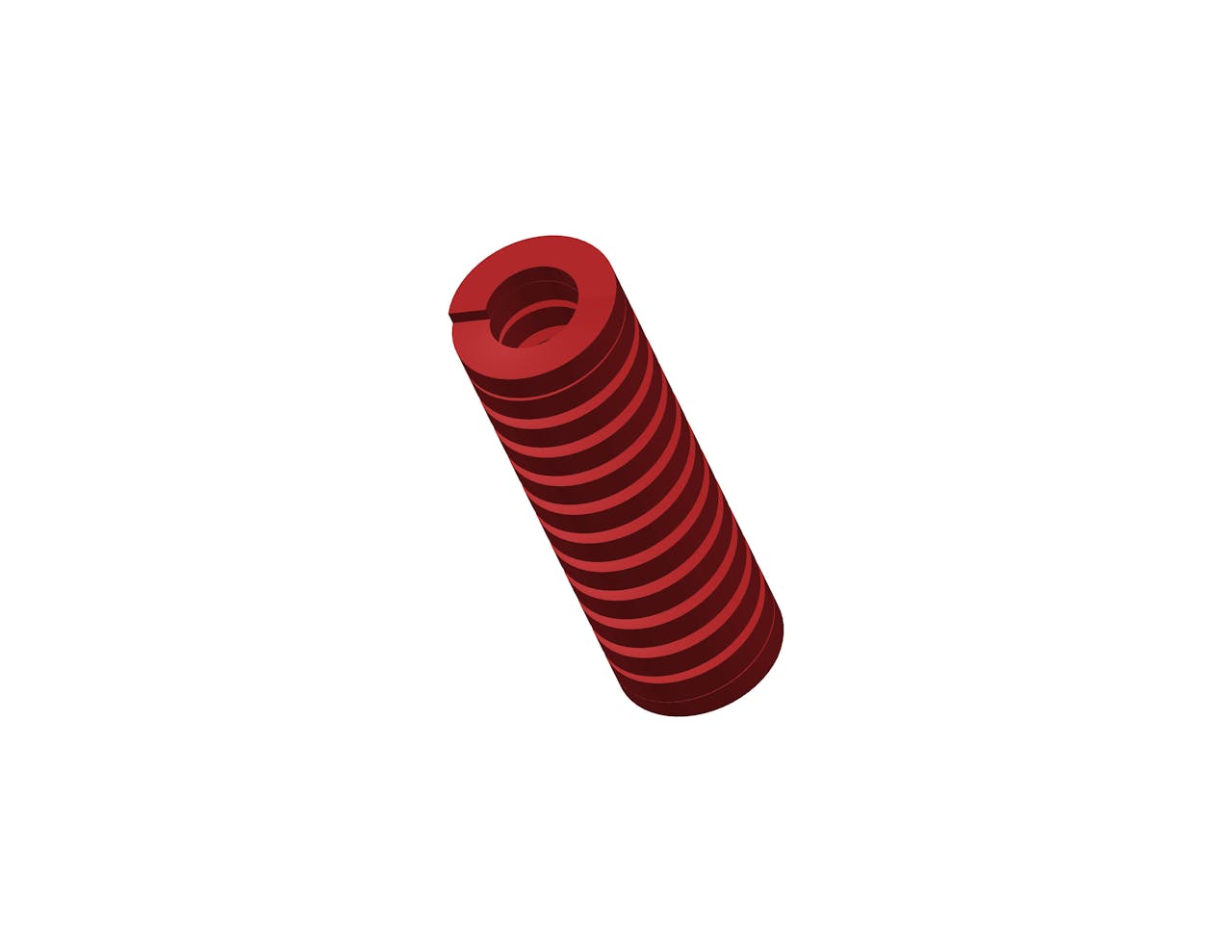

D-9161226CS - 3 Inch Chrome Silicon Die Spring

Inventory Status
Estimated Lead Time

3 Inch Chrome Silicon die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 341 lb
Brand Century Spring
Deflection For Average Life 0.6 in
Deflection For Long Life 0.75 in
Display Name D-9161226
Duty Load Heavy
Finish None
Finish Color Red
Free Length 3 in
Hole Size 1 in
Long Life Deflection Force 426 lb
Material Chrome Silicon
Maximum Deflection 0.9 in
Maximum Deflection Force 512 lb
Measurement Units Standard
Rate 570 lbs/in
Rod Size 0.5 in
SKU D-9161226CS
Wire Diameter 0.216 in x 0.165 in
Specs (in metric)
Label Value
Average Life Deflection Force 154.65 kg
Brand Century Spring
Deflection For Average Life 15.24 mm
Deflection For Long Life 19.05 mm
Display Name D-9161226
Duty Load Heavy
Finish None
Finish Color Red
Free Length 76.2 mm
Hole Size 25.4 mm
Long Life Deflection Force 193.2 kg
Material Chrome Silicon
Maximum Deflection 22.86 mm
Maximum Deflection Force 232.2 kg
Measurement Units Standard
Rate 99.81 N/mm
Rod Size 12.7 mm
SKU D-9161226CS
Wire Diameter 5.49 mm x 4.19 mm
