Century Spring

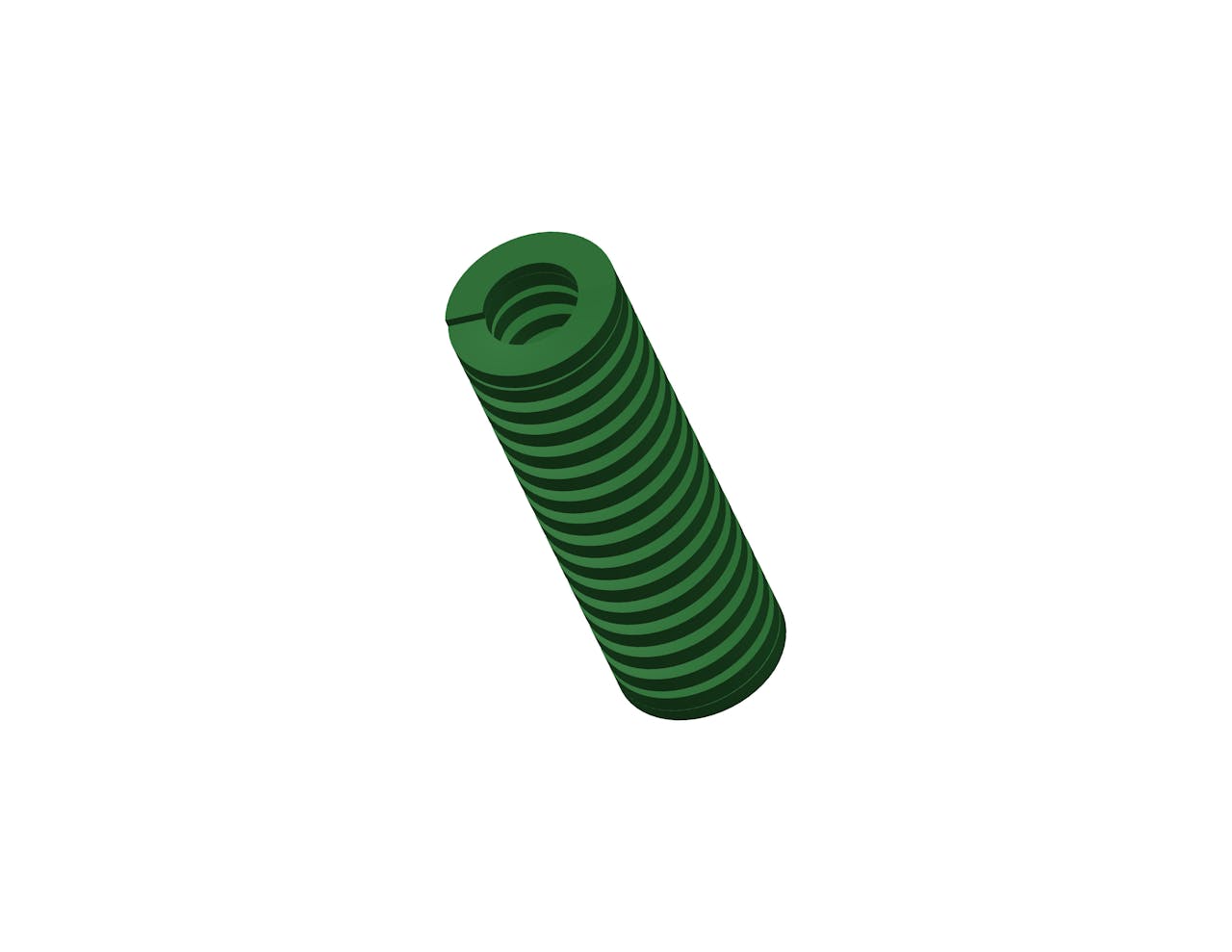

D-9161211CS - 3 Inch Chrome Silicon Die Spring

Inventory Status
Estimated Lead Time

3 Inch Chrome Silicon die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 126 lb
Brand Century Spring
Deflection For Average Life 0.75 in
Deflection For Long Life 0.9 in
Display Name D-9161211
Duty Load Light
Finish None
Finish Color Green
Free Length 3 in
Hole Size 1 in
Long Life Deflection Force 151 lb
Material Chrome Silicon
Maximum Deflection 1.2 in
Maximum Deflection Force 201 lb
Measurement Units Standard
Rate 168 lbs/in
Rod Size 0.5 in
SKU D-9161211CS
Wire Diameter 0.212 in x 0.106 in
Specs (in metric)
Label Value
Average Life Deflection Force 57.14 kg
Brand Century Spring
Deflection For Average Life 19.05 mm
Deflection For Long Life 22.86 mm
Display Name D-9161211
Duty Load Light
Finish None
Finish Color Green
Free Length 76.2 mm
Hole Size 25.4 mm
Long Life Deflection Force 68.48 kg
Material Chrome Silicon
Maximum Deflection 30.48 mm
Maximum Deflection Force 91.16 kg
Measurement Units Standard
Rate 29.42 N/mm
Rod Size 12.7 mm
SKU D-9161211CS
Wire Diameter 5.38 mm x 2.69 mm
