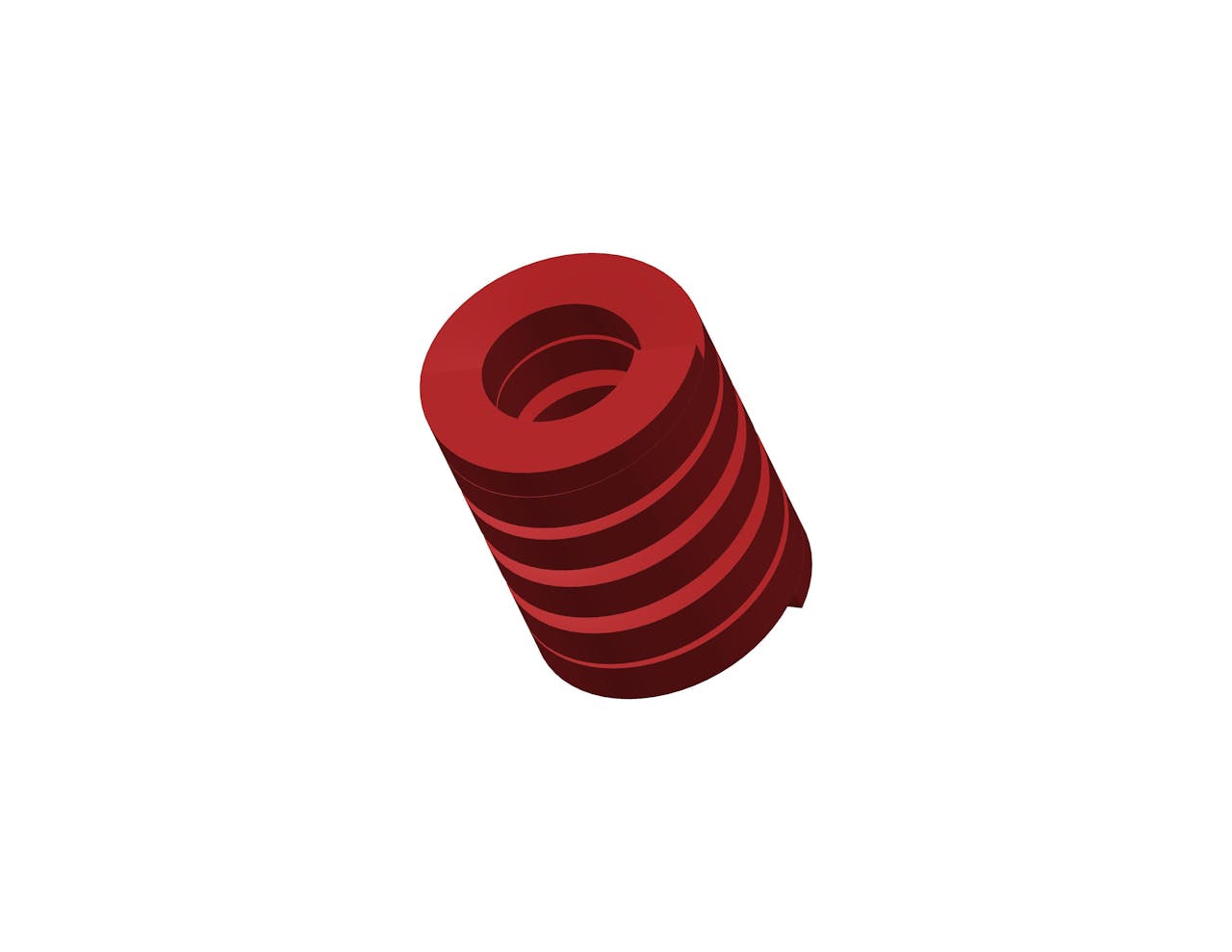

D-9160526CS - 1.25 Inch Chrome Silicon Die Spring

Inventory:
Estimated Lead Time

1.25 Inch Chrome Silicon die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 411 lb
Brand Century Spring
Deflection For Average Life 0.25 in
Deflection For Long Life 0.31 in
Display Name D-9160526
Duty Load Heavy
Finish None
Finish Color Red
Free Length 1.25 in
Hole Size 1 in
Long Life Deflection Force 513 lb
Material Chrome Silicon
Maximum Deflection 0.38 in
Maximum Deflection Force 616 lb
Measurement Units Standard
Rate 1630 lbs/in
Rod Size 0.5 in
SKU D-9160526CS
Wire Diameter 0.216 in x 0.165 in
Specs (in metric)
Label Value
Average Life Deflection Force 186.39 kg
Brand Century Spring
Deflection For Average Life 6.35 mm
Deflection For Long Life 7.87 mm
Display Name D-9160526
Duty Load Heavy
Finish None
Finish Color Red
Free Length 31.75 mm
Hole Size 25.4 mm
Long Life Deflection Force 232.65 kg
Material Chrome Silicon
Maximum Deflection 9.65 mm
Maximum Deflection Force 279.37 kg
Measurement Units Standard
Rate 285.41 N/mm
Rod Size 12.7 mm
SKU D-9160526CS
Wire Diameter 5.49 mm x 4.19 mm
